Calibrating The Transfer Output - Omron E5*C Series User Manual

7-6

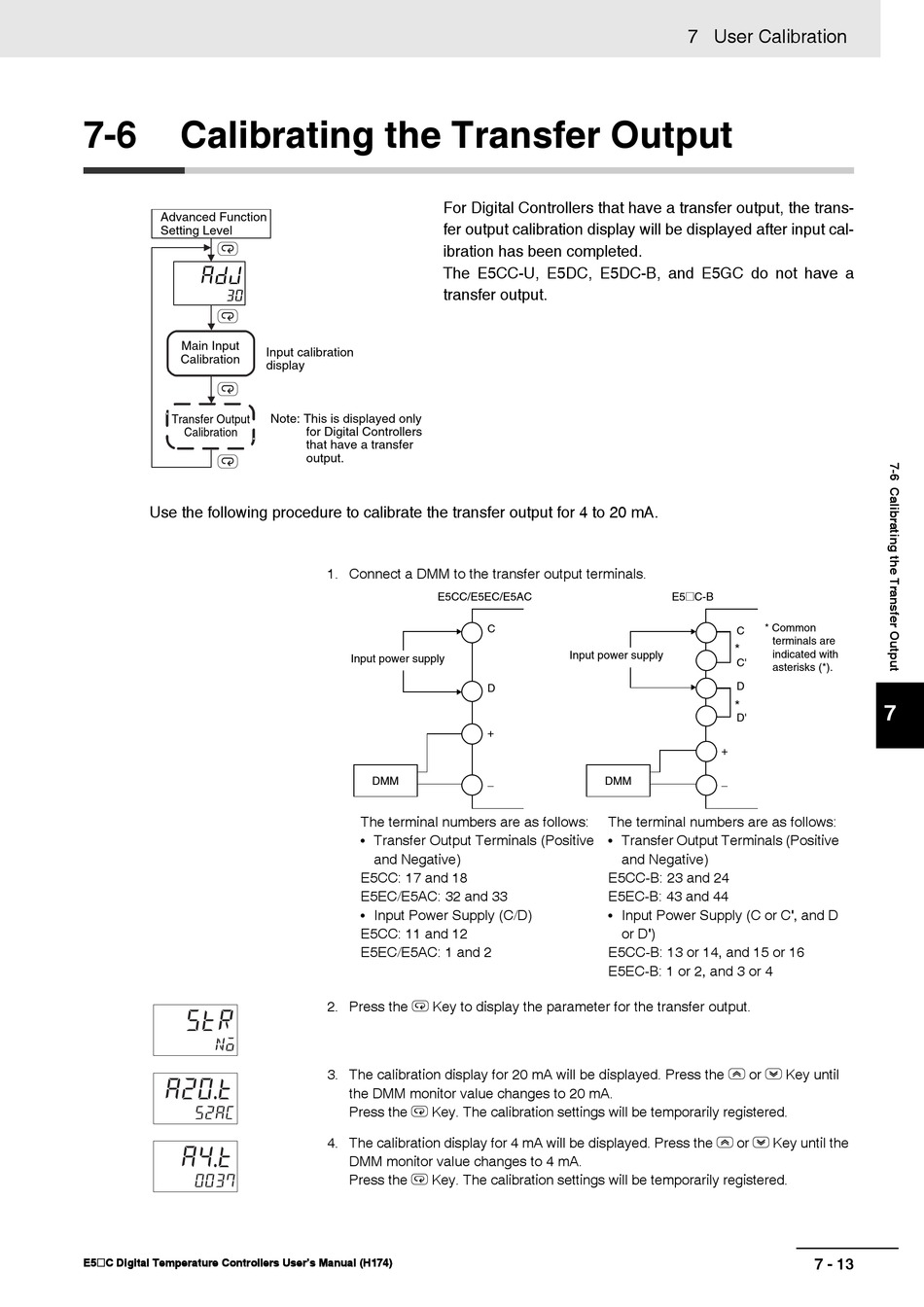

Calibrating the Transfer Output

Advanced Function
Setting Level
M
adj
30
M
Main Input
Calibration
M
Transfer Output
Calibration
M
Use the following procedure to calibrate the transfer output for 4 to 20 mA.
str
no
a20.t
52ac
a4.t
0037
E5@C Digital Temperature Controllers User's Manual (H174)
Input calibration
display
Note: This is displayed only
for Digital Controllers
that have a transfer
output.
1. Connect a DMM to the transfer output terminals.
E5CC/E5EC/E5AC
Input power supply
DMM
The terminal numbers are as follows:
• Transfer Output Terminals (Positive
and Negative)
E5CC: 17 and 18
E5EC/E5AC: 32 and 33
• Input Power Supply (C/D)
E5CC: 11 and 12
E5EC/E5AC: 1 and 2
2. Press the M Key to display the parameter for the transfer output.
3. The calibration display for 20 mA will be displayed. Press the U or D Key until
the DMM monitor value changes to 20 mA.
Press the M Key. The calibration settings will be temporarily registered.
4. The calibration display for 4 mA will be displayed. Press the U or D Key until the
DMM monitor value changes to 4 mA.
Press the M Key. The calibration settings will be temporarily registered.
For Digital Controllers that have a transfer output, the trans-
fer output calibration display will be displayed after input cal-
ibration has been completed.
The E5CC-U, E5DC, E5DC-B, and E5GC do not have a
transfer output.
C
Input power supply
D
+
DMM
−
The terminal numbers are as follows:
• Transfer Output Terminals (Positive
E5CC-B: 23 and 24
E5EC-B: 43 and 44
• Input Power Supply (C or C', and D
E5CC-B: 13 or 14, and 15 or 16
E5EC-B: 1 or 2, and 3 or 4
7 User Calibration
E5@C-B
* Common
C
terminals are
*
indicated with
C'
asterisks (*).
D
*
D'
+
−
and Negative)
or D')
7
7 - 13
