1 Introduction
1-1 Appearance, Features, and
Functions of the E5@C
1-1-1

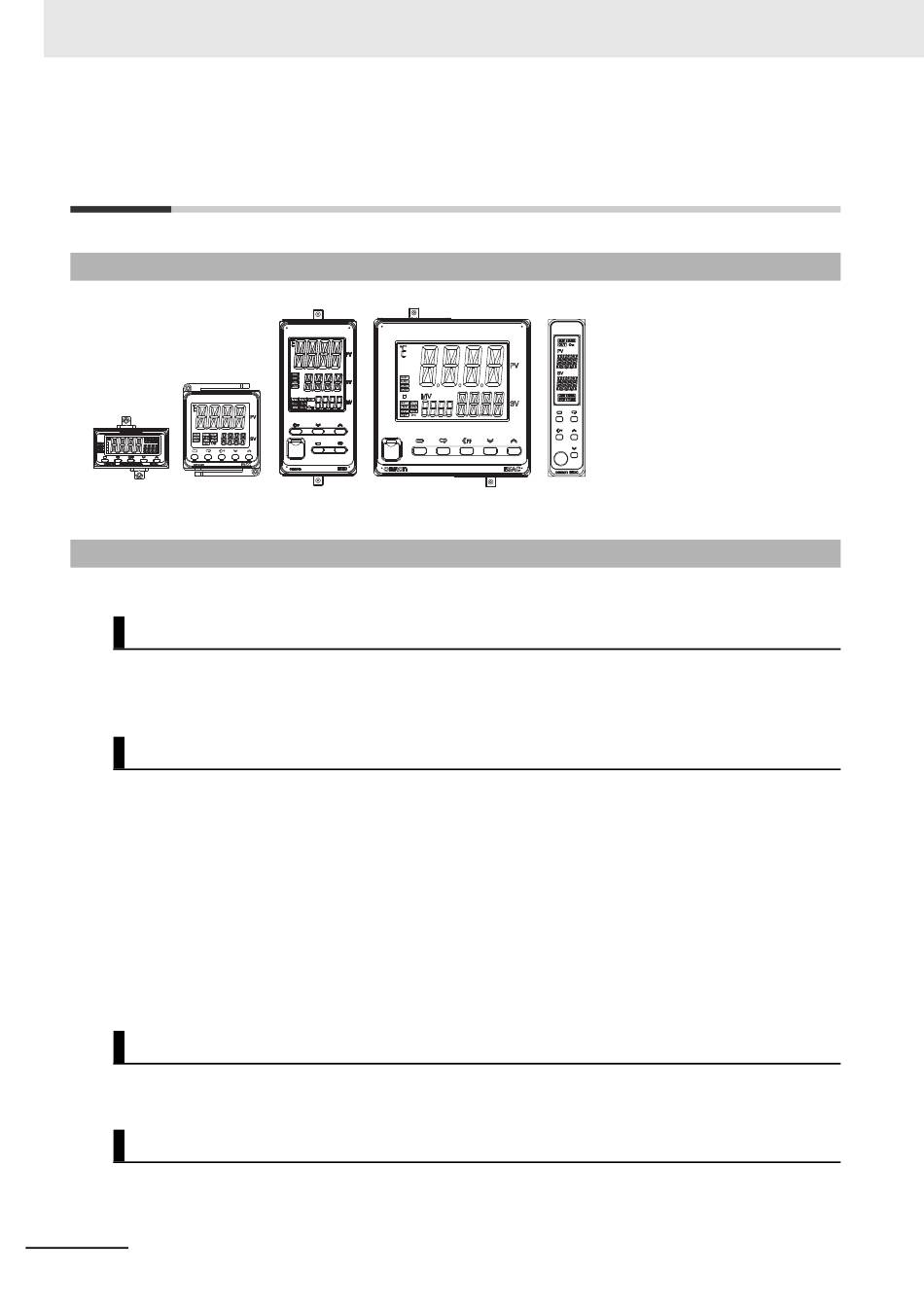

Appearance

E5GC E5CC, E5CC-U,
and E5CC-B
1-1-2

Features

This section compares the features of the E5@C with the previous E5@N Digital Controllers.
High-speed Control Capability
Input sampling cycle:
Control period:
Integral/differential time unit: Setting in increments of 0.1 s has been added.
I/O Expandability
• Number of event inputs:
• Number of auxiliary outputs: Increased from 2 to 3 for the E5CC and from 3 to 4 for the E5EC/E5AC.
• Remote SP inputs:
Universal Input Capability
Universal input:
Easier Numeric Inputs with a Digit Shift Key
Digit shift: When setting the SP or other parameters, you can use a Shift Key (assigned to the PF
Key) to shift the digit that is being set to aid changing the set values.
1 - 2
E5EC and E5EC-B E5AC
50 ms
0.1 s and 0.2 s have been added.
Increased from 2 to 4 for the E5CC and from 4 to 6 for the E5EC/E5AC.
The E5DC has only 1 event input.
The E5GC or E5CC-B has 2 event inputs.
The E5EC-B has 6 event inputs.
* The E5DC-B does not support event inputs.
The E5DC, E5DC-B, E5CC-U, E5GC, or E5CC-B has 2 auxiliary
outputs.
The E5EC-B has 4 auxiliary outputs.
A remote SP input that treats the external analog signal at the set point
(SP) has been added.
The input sensor can be selected freely from the following: Thermocouple, resis-
tance thermometer, ES1B Infrared Temperature Sensor, current, and voltage.
• A stylish design that gives a new
look to control panels.
• Large display characters and white
backlight for better visibility.
• A compact size to help downsize
control panels.
• Much faster sampling and greater
expandability than expected in this
class of Digital Controller.
• Even easier to use than previous
E5DC and
models.
E5DC-B
E5@C Digital Temperature Controllers User's Manual (H174)
