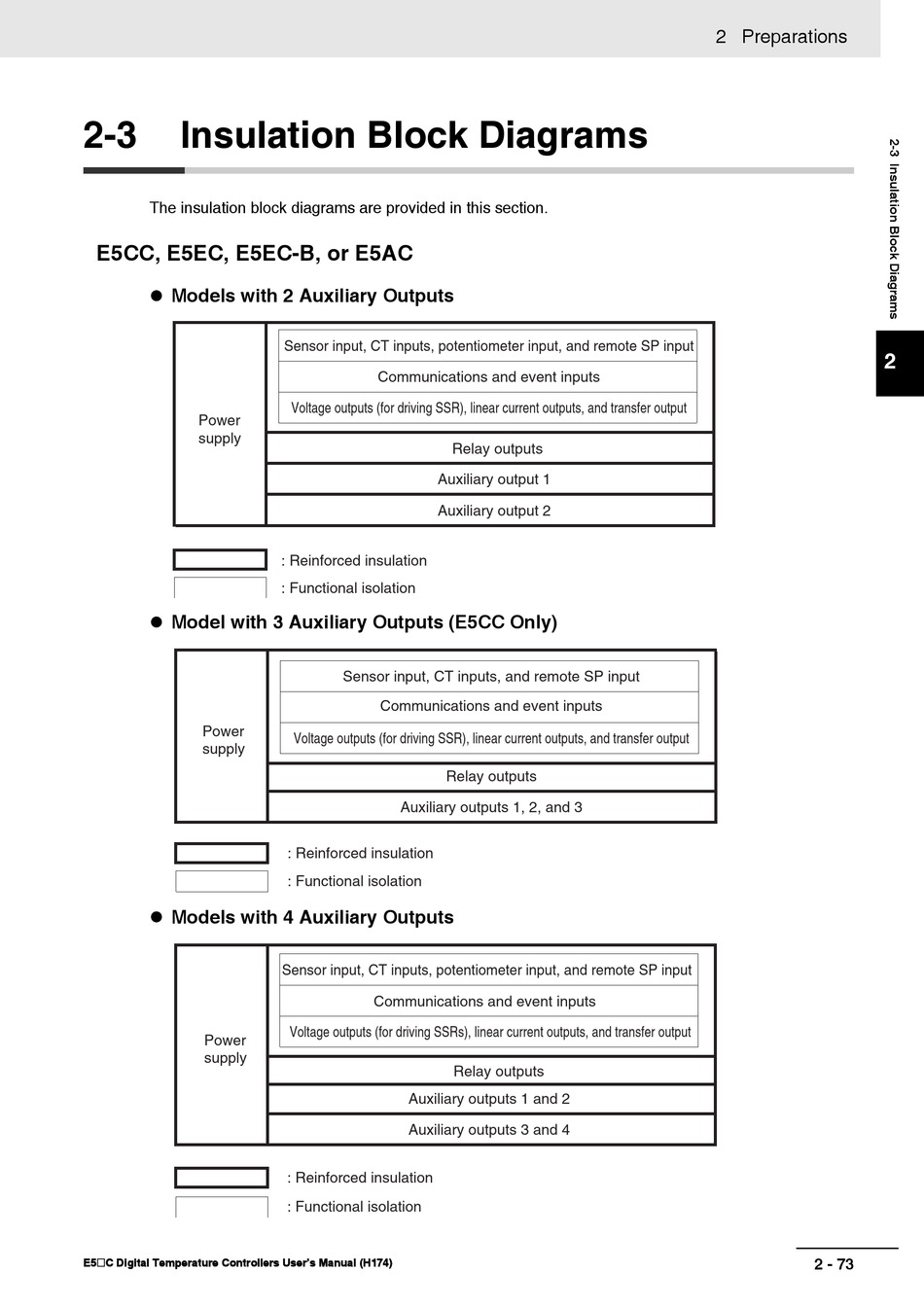

Insulation Block Diagrams

The insulation block diagrams are provided in this section.
E5CC, E5EC, E5EC-B, or E5AC
 Models with 2 Auxiliary Outputs
Power
supply
 Model with 3 Auxiliary Outputs (E5CC Only)
Power
supply
 Models with 4 Auxiliary Outputs
Power
supply
E5@C Digital Temperature Controllers User's Manual (H174)
Sensor input, CT inputs, potentiometer input, and remote SP input
Communications and event inputs
Voltage outputs (for driving SSR), linear current outputs, and transfer output
Relay outputs
Auxiliary output 1
Auxiliary output 2
: Reinforced insulation
: Functional isolation
Sensor input, CT inputs, and remote SP input
Communications and event inputs
Voltage outputs (for driving SSR), linear current outputs, and transfer output
Relay outputs
Auxiliary outputs 1, 2, and 3
: Reinforced insulation
: Functional isolation
Sensor input, CT inputs, potentiometer input, and remote SP input
Communications and event inputs
Voltage outputs (for driving SSRs), linear current outputs, and transfer output
Relay outputs
Auxiliary outputs 1 and 2
Auxiliary outputs 3 and 4
: Reinforced insulation
: Functional isolation
