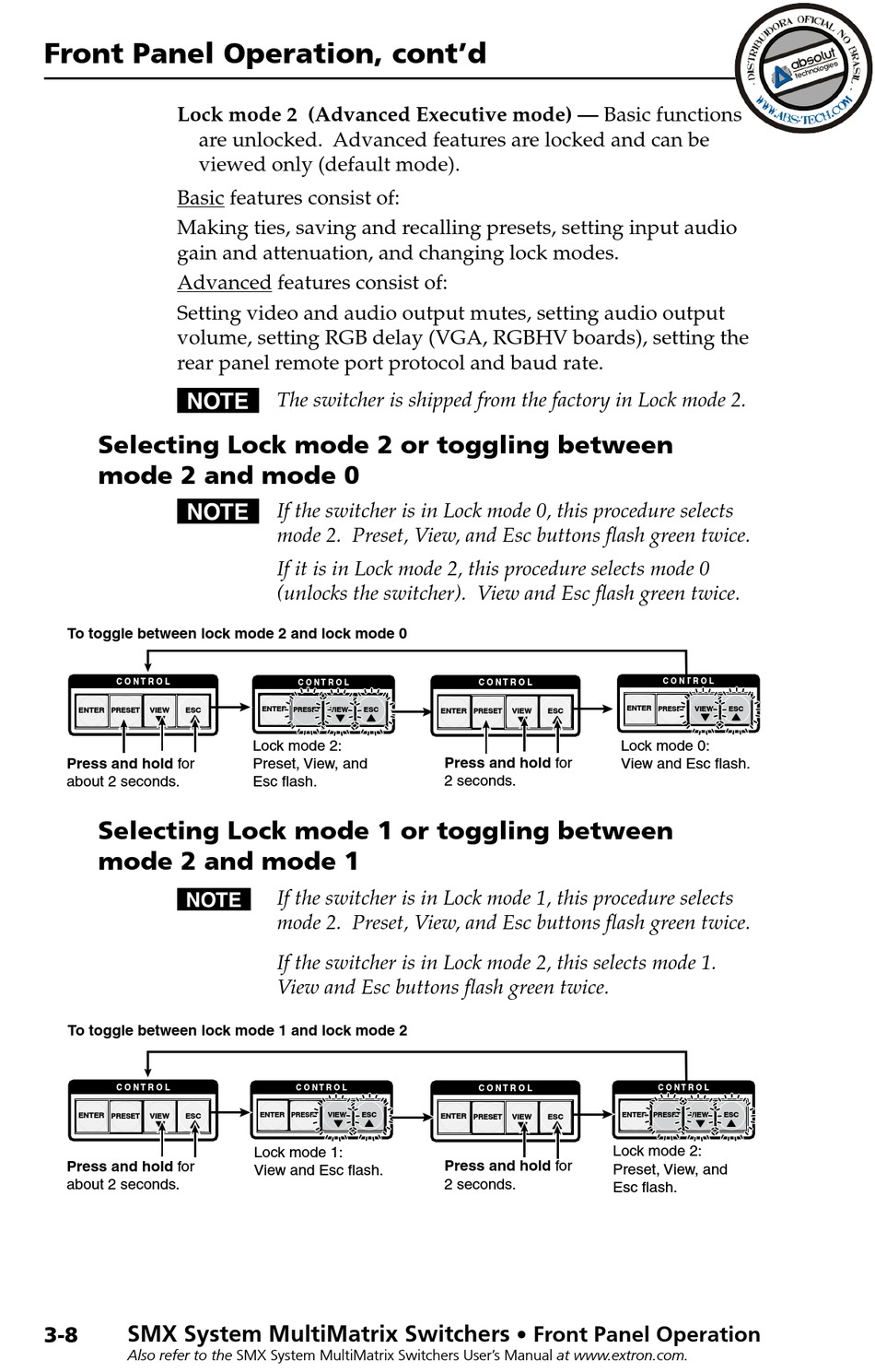

Front Panel Operation, cont'd
Lock mode 2 (Advanced Executive mode) — Basic functions
are unlocked. Advanced features are locked and can be
viewed only (default mode).
Basic features consist of:
Making ties, saving and recalling presets, setting input audio
gain and attenuation, and changing lock modes.
Advanced features consist of:
Setting video and audio output mutes, setting audio output
volume, setting RGB delay (VGA, RGBHV boards), setting the
rear panel remote port protocol and baud rate.
N
Selecting Lock mode 2 or toggling between
mode 2 and mode 0
N
To toggle between lock mode 2 and lock mode 0
C O N T R O L
ENTER
PRESET
VIEW
ESC
Press and hold for
about 2 seconds.
Selecting Lock mode 1 or toggling between
mode 2 and mode 1
N
To toggle between lock mode 1 and lock mode 2
C O N T R O L
ENTER
PRESET
VIEW
ESC
Press and hold for
about 2 seconds.
SMX System MultiMatrix Switchers
3-8
Also refer to the SMX System MultiMatrix Switchers User's Manual at www.extron.com.
The switcher is shipped from the factory in Lock mode 2.
If the switcher is in Lock mode 0, this procedure selects
mode 2. Preset, View, and Esc buttons flash green twice.
If it is in Lock mode 2, this procedure selects mode 0
(unlocks the switcher). View and Esc flash green twice.
C O N T R O L
ENTER
PRESET
VIEW
ESC
Lock mode 2:
Preset, View, and
Esc flash.
If the switcher is in Lock mode 1, this procedure selects
mode 2. Preset, View, and Esc buttons flash green twice.
If the switcher is in Lock mode 2, this selects mode 1.
View and Esc buttons flash green twice.
C O N T R O L
ENTER
PRESET
VIEW
ESC
Lock mode 1:
View and Esc flash.
C O N T R O L
ENTER
PRESET
VIEW
ESC
Press and hold for
2 seconds.
C O N T R O L
ENTER
PRESET
VIEW
ESC
Press and hold for
2 seconds.
• Front Panel Operation
C O N T R O L
ENTER
PRESET
VIEW
ESC
Lock mode 0:
View and Esc flash.
C O N T R O L
ENTER
PRESET
VIEW
ESC
Lock mode 2:
Preset, View, and
Esc flash.
