Front Panel Operation, cont'd
Mode
1
Hold down the recessed
Reset button while applying
power to the switcher.
3
Hold down the Reset
button for 3 seconds, until
the Reset LED blinks
once, then press Reset
momentarily (<1 second)
within 1 second.
4
Hold down the Reset
button for 6 seconds, until
the Reset LED blinks
twice (once at 3 seconds,
again at 6 seconds) then
press Reset momentarily
(<1 second) within 1
second.
5
Hold down the Reset button
for 9 seconds, until the
Reset LED blinks three
times (once at 3 seconds,
again at 6 seconds, and
then again at 9 seconds).
Then press Reset
momentarily (<1 second)
within 1 second.
N
SMX System MultiMatrix Switchers
3-14
Also refer to the SMX System MultiMatrix Switchers User's Manual at www.extron.com.

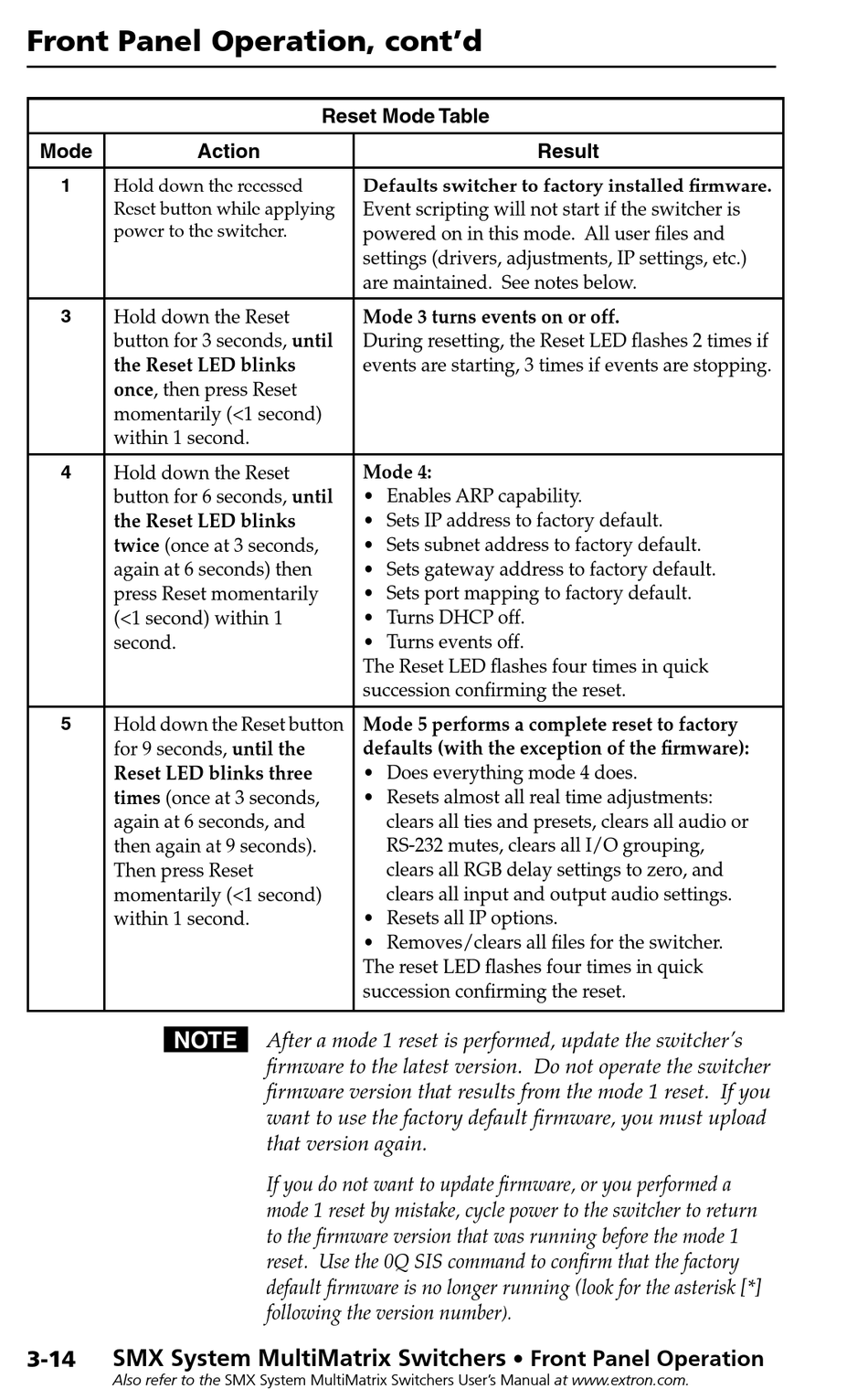

Reset Mode Table
Action
After a mode 1 reset is performed, update the switcher's
firmware to the latest version. Do not operate the switcher
firmware version that results from the mode 1 reset. If you
want to use the factory default firmware, you must upload
that version again.
If you do not want to update firmware, or you performed a
mode 1 reset by mistake, cycle power to the switcher to return
to the firmware version that was running before the mode 1
reset. Use the 0Q SIS command to confirm that the factory
default firmware is no longer running (look for the asterisk [*]
following the version number
Defaults switcher to factory installed firmware.
Event scripting will not start if the switcher is
powered on in this mode. All user files and
settings (drivers, adjustments, IP settings, etc.)
are maintained. See notes below.
Mode 3 turns events on or off.
During resetting, the Reset LED flashes 2 times if
events are starting, 3 times if events are stopping.
Mode 4:
• Enables ARP capability.
• Sets IP address to factory default.
• Sets subnet address to factory default.
• Sets gateway address to factory default.
• Sets port mapping to factory default.
• Turns DHCP off.
• Turns events off.
The Reset LED flashes four times in quick
succession confirming the reset.
Mode 5 performs a complete reset to factory
defaults (with the exception of the firmware):
• Does everything mode 4 does.
• Resets almost all real time adjustments:
clears all ties and presets, clears all audio or
RS-232 mutes, clears all I/O grouping,
clears all RGB delay settings to zero, and
clears all input and output audio settings.
• Resets all IP options.
• Removes/clears all files for the switcher.
The reset LED flashes four times in quick
succession confirming the reset.
).
