J. Install Decorative Front and Surround
A decorative front and surround is required to complete this
installation. Installation instructions are included with the
decorative front and surround. Consult your dealer for a
list of decorative front and surround options.
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause fireplace to overheat.
This fireplace has been supplied with an integral
barrier to prevent direct contact with the fixed glass
panel. DO NOT operate the fireplace with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative front.
See Figure 9.5 for Reset Switch Detail. The Reset Switch
included with the surround needs to be wired to the
appliance. Reference front/surround instructions (included
with the decorative front) and wiring diagram in Figure 6.2.
• Reset switch must be installed and in the "ON" position

for appliance to operate.
NOTE: For on site custom surround details, see instruc-
tions included with the surround.

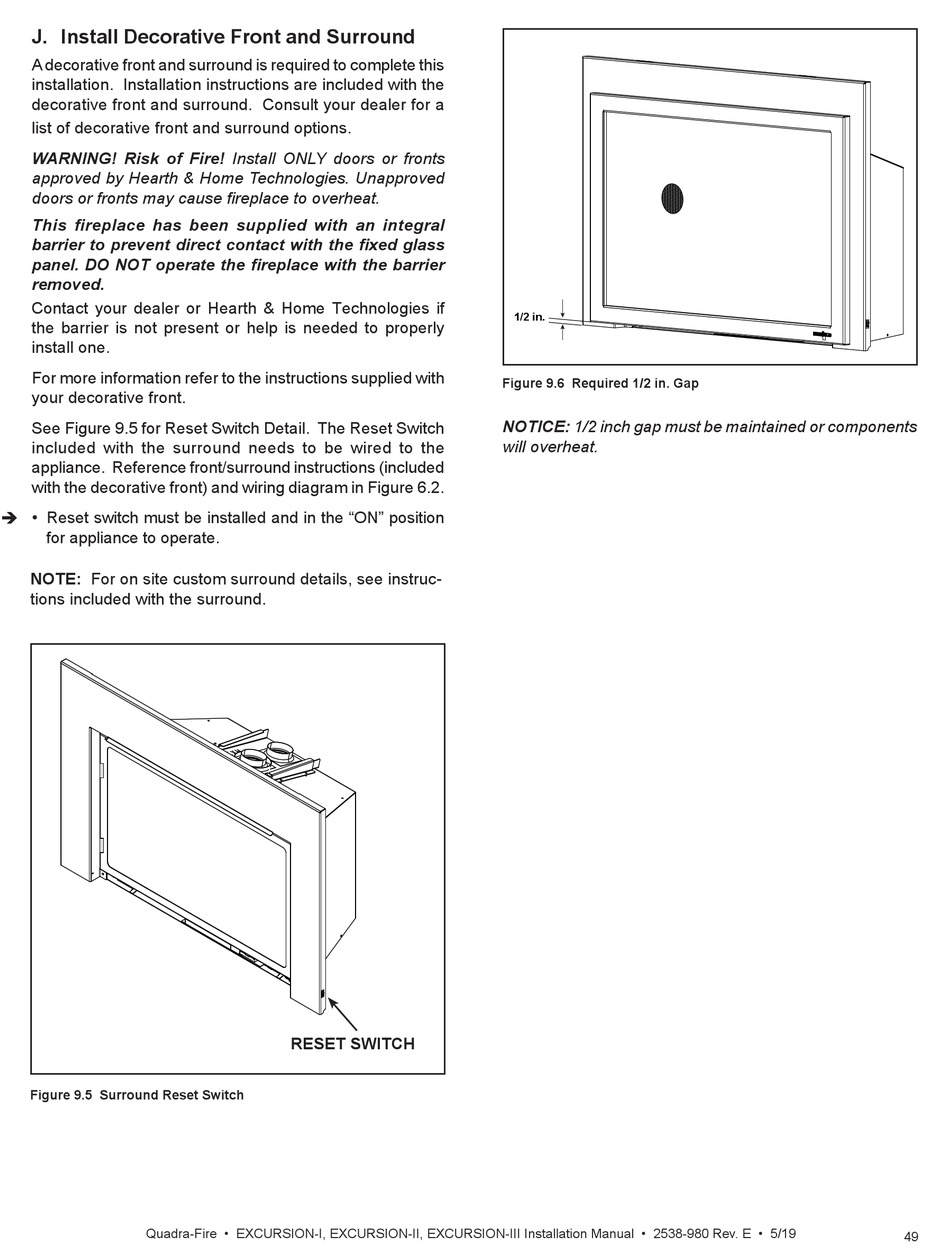

Figure 9.5 Surround Reset Switch
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
RESET SWITCH
1/2 in.
Figure 9.6 Required 1/2 in. Gap
NOTICE: 1/2 inch gap must be maintained or components
will overheat.
