F. Ember Rocks Placement
• Ember rocks shipped in the appliance manual bag.
• If desired, ember rocks can be used to reduce the
intensity of the accent lighting.
• The heavier the ember rocks is applied the more the
intensity of the accent lighting is reduced.

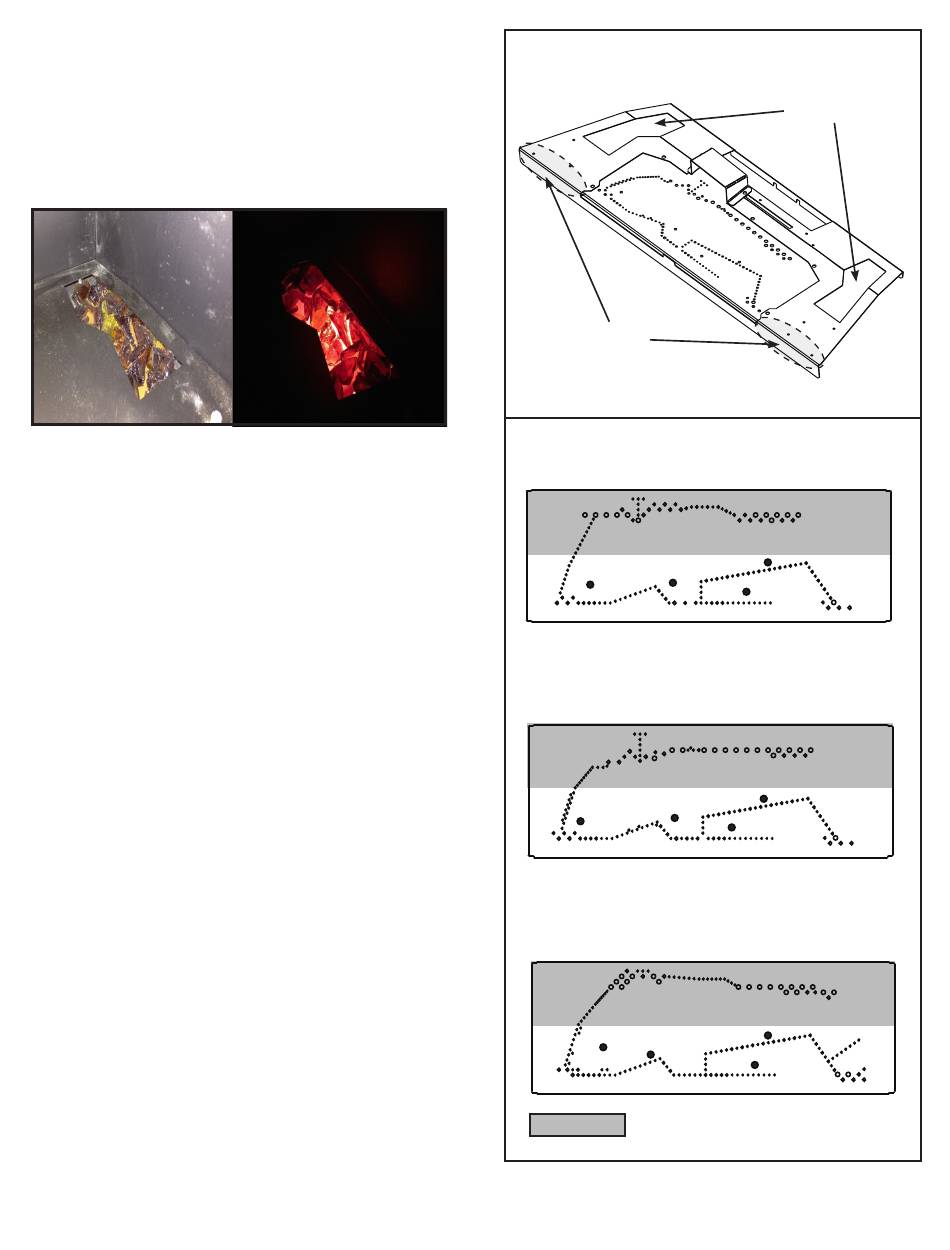

Figure 9.3 Accent Light with Ember Rocks
G. Mystic Embers Placement
WARNING! Risk of Explosion! Follow mystic ember
placement instructions. DO NOT place mystic embers on
burner. Improperly placed mystic embers interferes with
proper burner operation.
Mystic embers is shipped with this gas appliance. To place
the embers:
• Embers CANNOT be placed on the burner.
• Place embers in front of and to the sides of the burner.
• Use mystic embers to mask transition between base
refractory and base pan. See Figure 9.4.
H. Ember Placement
WARNING! Risk of Explosion! Follow ember placement
instructions in manual. Replace ember material annually.
Improperly placed embers interfere with proper burner op-
eration.
Ember material is shipped with this gas appliance. To place
the ember material:
• Embers CANNOT be placed directly over burner ports
that are indicated in Figure 9.4 or in pilot area as indicated
in Figure 9.4.
• Embers may be placed on the ports in areas indicated in
Figure 9.4. These embers must be placed loosely over
the port holes, not pressed down on or into the holes.
Create a single layer, no more than 1/4 inch thick.
•
Failure to follow this procedure will likely cause lighting
and sooting problems.
• Save the remaining ember materials for use during
appliance servicing. The embers provided should be
enough for 3 to 5 applications.
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
40
MYSTIC
EMBERS
EXCURSION-I
EXCURSION-II
EXCURSION-II
NO EMBERS
Figure 9.4 Placement of Embers
EMBER
ROCKS
