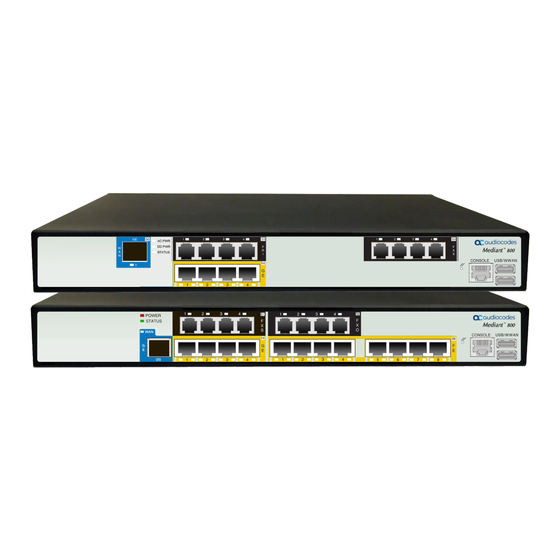

- Page 1 Hardware Installation Manual AudioCodes Gateway & Session Border Controller Series Mediant 800 Gateway and E-SBC Version 7.2...
-
Page 2: Weee Eu Directive
Please contact your local recycling authority for disposal of this product. Customer Support Customer technical support and services are provided by AudioCodes or by an authorized AudioCodes Service Partner. For more information on how to buy technical support for AudioCodes products contact... -
Page 3: Related Documentation
Open source software may have been added and/or amended for this product. For further information, please visit our website at https://www.audiocodes.com/services- support/open-source/ or contact your AudioCodes sales representative. Related Documentation Document Name SBC-Gateway Series Release Notes for Latest Release Versions... - Page 4 Notice Mediant 800 Gateway & E-SBC | Hardware Installation Manual LTRT Description 10267 AC power cable warning (Japanese). 10680 BRI cabling warning; LED label for console port; Status LED state typo. 10681 Download URL for CentOS driver. 10682 Typo fixed re 19-inch rack mounting brackets. 10683 Logo updated;...
-
Page 5: Table Of Contents
Content Mediant 800 Gateway & E-SBC | Hardware Installation Manual Table of Contents 1 Introduction 2 Unpacking the Device 3 Physical Description Physical Dimensions and Operating Environment Front Panel Description Ports and Buttons LEDs Description LAN Interface LEDs FXS LEDs FXO LEDs BRI LEDs E1/T1 (PRI) LEDs... -
Page 6: Introduction
Mediant 800C: Max. 4 E1/T1; AC and DC power (optional) ● Hardware configurations may change without notice. Currently available hardware configurations are listed in AudioCodes Price Book. For available hardware configurations, contact your AudioCodes sales representative. ● The Fast Ethernet ports are available only on "pure" SBC Mediant 800 (i.e., without PSTN / Gateway interfaces). -
Page 7: Unpacking The Device
Two mounting brackets for 19-inch rack mounting ● One AC power cord ● (Mediant 800C only) one AC/DC power adaptor (optional, separate orderable item) Check, retain and process any documents. If there are any damaged or missing items, notify your AudioCodes sales representative. - 2 -... -
Page 8: Physical Description
CHAPTER 3 Physical Description Mediant 800 Gateway & E-SBC | Hardware Installation Manual Physical Description This section provides a physical description of the device. Physical Dimensions and Operating Environment The device's physical dimensions and operating environment are listed in the following table: Table 3-1: Physical Dimensions and Operating Environment Physical Specification Description... - Page 9 CHAPTER 3 Physical Description Mediant 800 Gateway & E-SBC | Hardware Installation Manual The figures above are used only as an example. The number and type of port interfaces depends on the ordered model. Table 3-2: Front Panel Description Item # Label Description Mediant 800B:...
-
Page 10: Leds Description
CHAPTER 3 Physical Description Mediant 800 Gateway & E-SBC | Hardware Installation Manual Item # Label Description USB/WWAN Two USB ports that can be used for various functionality such as saving debug captures to a USB storage device. LEDs Description The front panel provides various LEDs depending on the device's hardware configuration (e.g., the available telephony interfaces). -
Page 11: Bri Leds
CHAPTER 3 Physical Description Mediant 800 Gateway & E-SBC | Hardware Installation Manual Table 3-5: FXO LEDs Description Description Color State Green FXO line is off-hooked toward the PBX. Flashing Ring signal detected from the PBX. ■ Error - malfunction in line or out of service due to Serial Peripheral Interface (SPI) failure. -
Page 12: Power Leds
CHAPTER 3 Physical Description Mediant 800 Gateway & E-SBC | Hardware Installation Manual Table 3-8: STATUS LED Description LED State Description Color Green The device is operational and in Standalone mode (not in High- Availability mode). Fast ■ Initial rebooting stage. Flashing ■... -
Page 13: Rear Panel Description
CHAPTER 3 Physical Description Mediant 800 Gateway & E-SBC | Hardware Installation Manual DC PWR LED The DC PWR LED indicates the DC power supply status, as described in the following table. Table 3-11: DC PWR LED Description Color State Description Green DC power is received by the device. - Page 14 DC power inlet for accepting a DC terminal block plug. Note: ■ DC power is applicable only to Mediant 800C. ■ Use only the AC/DC power adaptor that is supplied by AudioCodes to connect the DC inlet. - 9 -...
-
Page 15: Mounting The Device
CHAPTER 4 Mounting the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Mounting the Device The device can be mounted in one of the following ways: ■ Placed on a desktop – see Desktop Mounting below ■ Mounted on a wall – see Wall Mounting below ■... - Page 16 CHAPTER 4 Mounting the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 4-2: Attaching the Mounting Brackets to Chassis Mark the drilling locations of the four mounting holes on the wall. You can use the chassis with the attached wall-mounting brackets as a template. For this two people are needed, one to hold the chassis and one to mark the holes.
-
Page 17: 19-Inch Rack Mounting
CHAPTER 4 Mounting the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 4-3: Attaching the Chassis with Mounting Brackets to Wall 19-Inch Rack Mounting The device can be installed in a standard 19-inch rack by implementing one of the following mounting methods: ■... -
Page 18: Using A Pre-Installed Rack Shelf
CHAPTER 4 Mounting the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Rack Mount Safety Instructions: When installing the chassis in a rack, implement the following safety instructions: ● Elevated Operating Ambient Temperature: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. - Page 19 CHAPTER 4 Mounting the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 4-5: Attaching the Mounting Brackets Place the device on a pre-installed shelf in the rack. Attach the ends of the mounting brackets (that you installed in Step 1) to the vertical track of the rack's frame, using standard 19-inch rack bolts (not supplied).
-
Page 20: Cabling The Device
● As most of the installation is the responsibility of the customer, AudioCodes can assume responsibility for damage only if the customer can establish that the device does not comply with the standards specified above (and the device is within the hardware warranty period). -
Page 21: Connecting To Lan
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual ● To avoid electric shock and/or damage to ports due to over-voltage phenomena, you must connect the device to a reliable ground using the grounding termination located on the device's rear panel. ●... - Page 22 CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 5-2: LAN Port-Pair Groups and Web Interface String Names These ports support half- and full-duplex modes, auto-negotiation, and straight or crossover cable detection. Cable specifications: ■ Cable: Category 5e or Category 6 shielded twisted pair (STP) straight-through ■...
-
Page 23: Connecting To Analog Devices
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Connect the other end of the cable to the Gigabit Ethernet network (for the GE ports) and/or Fast Ethernet network (for the FE ports). For 1+1 LAN protection, repeat steps 1 and 2 for the standby port, but connect it to another network (in the same subnet). -
Page 24: Connecting The Fxo Interfaces
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 5-5: Connecting FXS Interfaces Connect the other end of the cable to the required telephone interface (e.g., fax machine, dial- up modem, and analog POTS telephone). Connecting the FXO Interfaces The procedure below describes how to cable the device's FXO interfaces. -
Page 25: Connecting The Fxs Analog Lifeline
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual ➢ To connect the FXO interfaces: Connect one end of an RJ-11 cable to the FXO port (labeled FXO). Figure 5-7: Connecting FXO Interfaces Connect the other end of the cable to the required telephone interface: (e.g., telephone exchange analog lines or PBX extensions). -
Page 26: Isdn Bri Interfaces
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Connect an analog PSTN line to Port B. Figure 5-9: Cabling FXS Lifeline ISDN BRI Interfaces This section describes how to cable the BRI interfaces. Connecting to BRI Lines The device provides up to four BRI S/T ports. -
Page 27: Connecting Pstn Fallback For Bri Lines
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual ➢ To connect the BRI ports: Connect the BRI cable to the device's BRI RJ-45 port. Connect the other end of the cable to your ISDN telephone or PBX/PSTN switch. Figure 5-11: Cabling BRI Ports Connecting PSTN Fallback for BRI Lines The device supports PSTN Fallback for BRI lines. -
Page 28: Connecting Isdn E1/T1 Interfaces
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 5-12: Cabling (Ports 1 and 2) PSTN Fallback ● PSTN Fallback is supported only on BRI interfaces. ● PSTN Fallback is supported only between ports on the same BRI module. ●... -
Page 29: Connecting Pstn Fallback For E1/T1 Trunks
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 5-14: Cabling E1/T1 Ports Connecting PSTN Fallback for E1/T1 Trunks The device supports PSTN Fallback for E1/T1 lines. If the device loses power, for example, due to a power outage or the unplugging of its power cable, it automatically routes calls that are received from the Tel side (e.g., PBX) directly to the PSTN (instead of to the IP network). -
Page 30: Connecting To A Computer For Serial Communication
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 5-16: Cabling PRI Ports for PSTN Fallback It doesn't matter which PRI port you use to connect to a Tel entity (i.e., PBX or PSTN). Connecting to a Computer for Serial Communication The device provides an RS-232 serial interface port on its front panel for serial communication with a PC. -
Page 31: Connecting The Osn Server
CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Figure 5-17: Cabling Serial Interface Connecting the OSN Server The device may be ordered with an embedded, Open Network Solution (OSN) platform for hosting third-party services such as an IP PBX. The OSN modules are located on the device's rear panel. The following table lists available, orderable OSN server platforms: Table 5-3: OSN Server Platforms Memory... -
Page 32: Connecting To Power
● The previous table lists the currently available OSN platforms. This list may change without notice. To check for any updated information on available OSN platforms, contact your AudioCodes sales representative. ➢ To connect to the OSN server: Perform the following cabling procedures on the OSN server, located on the rear panel: Connect computer peripherals (e.g., mouse and keyboard) to the USB ports (Standard-A... -
Page 33: Connecting To Ac Power
The device must be connected to a socket-outlet providing a protective earthing connection. ● To avoid electric shock or fire, use only the AC power cord that is supplied by AudioCodes with the device. ● For replacing the power fuse, see Replacing the Power Fuse on page 32. -
Page 34: Connecting To Dc Power
Value Input Voltage 12VDC / 10A Use only the AC/DC power adaptor that is provided by AudioCodes when ordering DC power. ➢ To connect the device for DC power: Insert the male DC plug into the DC inlet connector located on the device's rear panel. When inserting the DC plug, make sure that the latch faces up (see following figure). - Page 35 CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Table 5-6: Connecting DC Power Plug to DC Inlet Plug the female connector that is located on one end of the AC power cord (supplied), into the AC/DC power adaptor.
- Page 36 CHAPTER 5 Cabling the Device Mediant 800 Gateway & E-SBC | Hardware Installation Manual Plug the other end of the AC power cord (supplied) into a standard electrical wall outlet. The device's DC PWR LED, located on the front panel, lights up green. - 31 -...
-
Page 37: Maintenance
CHAPTER 6 Maintenance Mediant 800 Gateway & E-SBC | Hardware Installation Manual Maintenance This section describes hardware maintenance. Replacing the Power Fuse The device contains a fuse that protects the device from excessive AC current. The fuse is located on the rear panel, below the power socket. To replace the fuse, use only one of the following fuses described in the following table: Table 6-1: Allowed Fuses for the Device Manufacturer... - Page 38 CHAPTER 6 Maintenance Mediant 800 Gateway & E-SBC | Hardware Installation Manual This page is intentionally left blank. - 33 -...
