- Page 1 Mediant™ 800B Gateway and E-SBC SIP Protocol Hardware Installation Manual Version 6.8 October 2014 Document # LTRT-10257...
-
Page 3: Table Of Contents
Connecting to a Computer for Serial Communication ..........34 Connecting the OSN Server ................... 36 Powering up the Device ..................38 Maintenance – Replacing the Power Fuse ............. 39 A Installing CentOS Ver. 4.7 on OSN Server ............41 Version 6.8 Mediant 800B Gateway & E-SBC... - Page 4 Figure 5-14: Cabling E1/T1 Ports ......................33 Figure 5-15: Orderable RS-232 Cable Adapter ..................34 Figure 5-16: Cabling Serial Interface (RJ-45) on Mediant 800B ............35 Figure 5-17: Cabling OSN Server Ports ....................37 Figure 5-18: Connecting to the Power Supply ..................38 Figure 6-1: Opening the Fuse Cavity .....................
- Page 5 Table 3-10: Rear Panel Description ....................... 19 Table 5-1: RJ-45 Connector Pinouts for GbE/FE .................. 26 Table 5-2: OSN Server Platforms ......................36 Table 5-3: Power Specifications ......................38 Table 6-1: Allowed Fuses for the Device ....................39 Version 6.8 Mediant 800B Gateway & E-SBC...
- Page 6 Mediant 800B Gateway & E-SBC This page is intentionally left blank. Hardware Installation Manual Document #: LTRT-10257...
-
Page 7: Weee Eu Directive
Abbreviations and Terminology Each abbreviation, unless widely used, is spelled out in full when first used. Throughout this manual, unless otherwise specified, the term device refers to Mediant 800B Gateway and E-SBC. Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 8: Related Documentation
Disconnect the device from the mains and Telephone Network Voltage (TNV) before servicing. Documentation Feedback AudioCodes continually strives to produce high quality documentation. If you have any comments (suggestions or errors) regarding this document, please fill out the Documentation Feedback form on our Web site at http://www.audiocodes.com/downloads. -
Page 9: Introduction
Hardware Installation Manual 1. Introduction Introduction This document provides a hardware description of the Mediant 800B Gateway and E-SBC (hereafter referred to as device) and step-by-step procedures for mounting and cabling the device. The device supports the following interfaces (customer ordered): ... - Page 10 Mediant 800B Gateway & E-SBC This page is intentionally left blank. Hardware Installation Manual Document #: LTRT-10257...
-
Page 11: Unpacking The Device
One FXS Lifeline cable adapter (only for models with FXS interfaces) • One AC power cable Check, retain and process any documents. If there are any damaged or missing items, notify your AudioCodes sales representative. Version 6.8 Mediant 800B Gateway & E-SBC... - Page 12 Mediant 800B Gateway & E-SBC This page is intentionally left blank. Hardware Installation Manual Document #: LTRT-10257...
-
Page 13: Physical Description
Note: The Mediant 800 chassis platform has been upgraded. This revised chassis is referred to as Mediant 800B. The shipped chassis version depends on your ordered hardware configuration. For more information, contact your AudioCodes sales representative. In addition, throughout this manual, the Mediant 800B is used in illustrations, unless specific instructions are necessary for the Mediant 800 chassis. -
Page 14: Front Panel Description

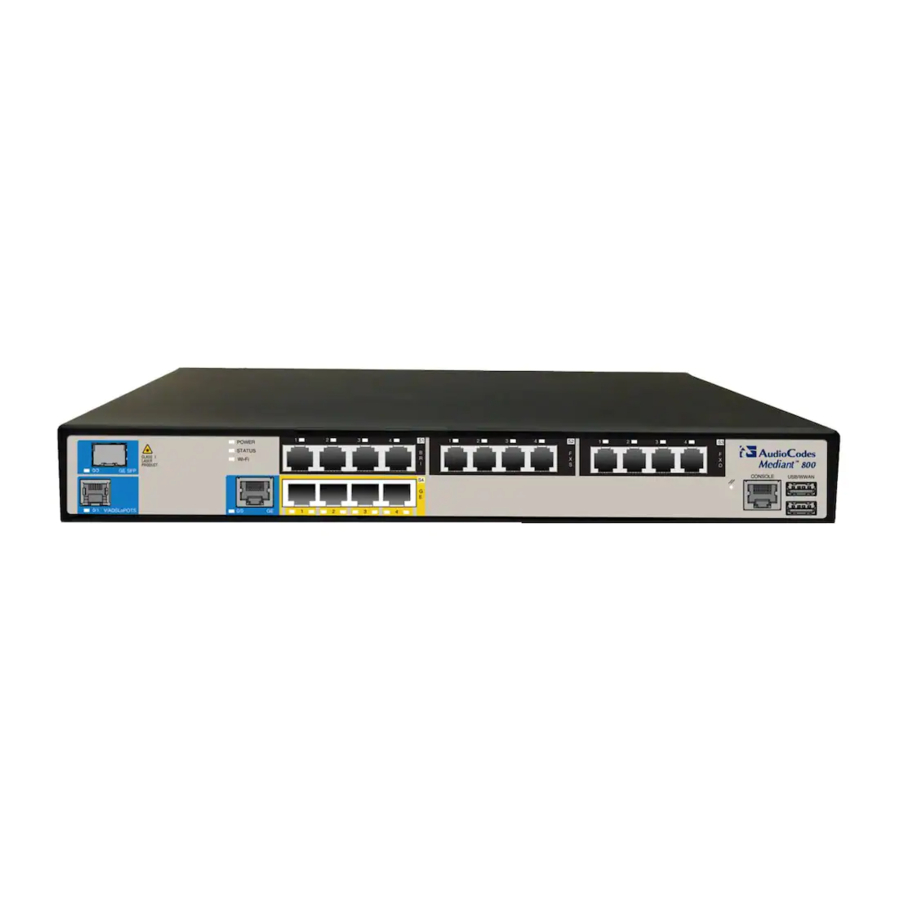

Ports and Buttons The device's front panel is shown in the figure below and described in the subsequent table. Figure 3-1: Mediant 800B Front Panel Figure 3-2: Mediant 800 Front Panel Note: The figures above are used only as an example. The number and type of port interfaces depends on the ordered model. - Page 15 Straight or crossover cable detection Eight Fast Ethernet (10/100Base-TX) RJ-45 LAN ports for connecting IP phones, computers, or switches. The supported port features are the same as the GE ports (see Item #6 above). Version 6.8 Mediant 800B Gateway & E-SBC...
-
Page 16: Leds Description
Mediant 800B Gateway & E-SBC 3.2.2 LEDs Description The front panel provides various LEDs depending on the device's hardware configuration (e.g., the available telephony interfaces). These LEDs are described in the subsequent subsections. 3.2.2.1 LAN Interface LEDs Each LAN port provides a LED (located on its left) for indicating LAN operating status, as described in the table below. -
Page 17: Fxo Leds
Each BRI port provides a LED for indicating operating status, as described in the table below: Table 3-6: BRI LEDs Description Color State Description Green Physical layer (Layer 1) is synchronized (normal operation). Physical layer (Layer 1) is not synchronized. Trunk is not active. Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 18: E1/T1 Leds
Mediant 800B Gateway & E-SBC 3.2.2.5 E1/T1 LEDs Each trunk port provides a LED for indicating operating status, as described in the table below: Table 3-7: E1/T1 LEDs Description Color State Description Green Trunk is synchronized (normal operation). Loss due to any of the following signals: ... -
Page 19: Rear Panel Description
WAN interface (to an IP PBX). Note: the number of ports depends on ordered OSN server platform (see Section on page 36). Protective earthing screw. 100-240V~1.5A 3-Prong AC power supply entry. 50-60Hz Version 6.8 Mediant 800B Gateway & E-SBC... - Page 20 Mediant 800B Gateway & E-SBC This page is intentionally left blank. Hardware Installation Manual Document #: LTRT-10257...
-
Page 21: Mounting The Device
Peel off the adhesive, anti-slide rubber feet and stick one in each anti-slide groove. Figure 4-1: Rubber Foot Attached to Underside of Device Flip the device over again so that it rests on the rubber feet and place it in the required position on a desktop. Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 22: 19-Inch Rack Mounting
Mediant 800B Gateway & E-SBC 19-Inch Rack Mounting The device can be installed in a standard 19-inch rack by implementing one of the following mounting methods: Placing it on a pre-installed shelf in a 19-inch rack – see Section 4.2.1... -
Page 23: Using Mounting Brackets
Place the device on a pre-installed shelf in the rack. Attach the ends of the mounting brackets (that you installed in Step 1) to the vertical track of the rack's frame, using standard 19-inch rack bolts (not supplied). Version 6.8 Mediant 800B Gateway & E-SBC... - Page 24 Mediant 800B Gateway & E-SBC This page is intentionally left blank. Hardware Installation Manual Document #: LTRT-10257...
-
Page 25: Cabling The Device
(located on the rear panel), using the supplied washer. Figure 5-1: Grounding the Device Connect the other end of the strap to a protective earthing. This should be in accordance with the regulations enforced in the country of installation. Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 26: Connecting To Lan
Mediant 800B Gateway & E-SBC Connecting to LAN The device provides up to four 10/100/1000Base-T (Gigabit Ethernet) RJ-45 ports and up to eight 10/100Base-TX (Fast Ethernet) RJ-45 ports for connection to the LAN. These LAN ports can operate in pairs (groups) to provide LAN port 1+1 redundancy. In each pair, one port serves as the active LAN port while the other as standby. -
Page 27: Figure 5-3: Connecting The Lan Ports
(in the same subnet). Note: If you are implementing the LAN port-pair redundancy, ensure that the two ports making up a pair are each connected to a different network (in the same subnet). Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 28: Analog Devices
Mediant 800B Gateway & E-SBC Analog Devices This section describes how to connect the device to analog equipment. 5.3.1 Connecting the FXS Interfaces The procedure below describes how to cable the device's FXS interfaces. Warnings: • The device is an INDOOR unit and therefore, must be installed only indoors. -
Page 29: Connecting The Fxo Interfaces
Connect one end of an RJ-11 cable to the FXO port (labeled FXO). Figure 5-7: Connecting FXO Interfaces Connect the other end of the cable to the required telephone interface: (e.g., telephone exchange analog lines or PBX extensions). Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 30: Connecting The Fxs Analog Lifeline
Mediant 800B Gateway & E-SBC 5.3.3 Connecting the FXS Analog Lifeline The device's analog Lifeline phone feature redirects IP calls to the PSTN upon a power outage or loss of IP network connectivity, thereby guaranteeing call continuity. The Lifeline is provided by FXS Port # 1. This port connects to the analog POTS phone and the PSTN / PBX using a splitter cable. -
Page 31: Isdn Bri Interfaces
To connect the BRI ports: Connect the BRI cable to the device's BRI RJ-45 port. Connect the other end of the cable to your ISDN telephone or PBX/PSTN switch. Figure 5-11: Cabling BRI Ports Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 32: Connecting The Pstn Fallback For Bri Lines
Mediant 800B Gateway & E-SBC 5.4.2 Connecting the PSTN Fallback for BRI Lines The device supports a PSTN Fallback feature for BRI lines, whereby if a power outage or IP connectivity problem (e.g., no ping) occurs, IP calls are re-routed to the PSTN. This guarantees call continuity. -
Page 33: Connecting To Isdn Pri (E1/T1) Trunks
To connect the E1/T1 trunk interface: Connect the E1/T1 trunk cable to the device’s E1/T1 port. Connect the other end of the trunk cable to your PBX/PSTN switch. Figure 5-14: Cabling E1/T1 Ports Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 34: Connecting To A Computer For Serial Communication
Port Type: 12-pin female LX40-12P Hirose connector • Cable: Can be purchased from AudioCodes - RS-232 cable adapter (9-pin DB to flat connector). The Customer Product Number is PicoBlade-Serial. This orderable item is supplied in a kit of 10 cables. The figure below displays this cable adapter, where "P1"... -
Page 35: Figure 5-16: Cabling Serial Interface (Rj-45) On Mediant 800B
Connect the RJ-45 cable connector to the device's serial port, labeled CONSOLE. Connect the other end of the cable to the COM1 or COM2 RS-232 communication port on your PC. Figure 5-16: Cabling Serial Interface (RJ-45) on Mediant 800B Mediant 800 (using AudioCodes serial cable adapter - not supplied): Connect one end of the crossover RS-232 cable ("P3") to the device's serial port,... -
Page 36: Connecting The Osn Server
OSN server. • The OSN server also provides an internal interface connection to the Mediant 800B LAN switch. In other words, instead of using the Gigabit Ethernet port on the rear panel, you can use the LAN port #1 located on the front panel for connecting to the OSN server. -
Page 37: Figure 5-17: Cabling Osn Server Ports
To reset the OSN server: Insert a sharp-pointed object (such as a drawing pin) into the Reset pinhole and then extract it after a second; the OSN server performs a reset. Version 6.8 Mediant 800B Gateway & E-SBC... -
Page 38: Powering Up The Device
Mediant 800B Gateway & E-SBC Powering up the Device The device receives power from a standard alternating current (AC) electrical outlet. The connection is made using the supplied AC power cord. Table 5-3: Power Specifications Physical Specification Value Input Voltage... -
Page 39: Maintenance - Replacing The Power Fuse
Figure 6-2: Removed Power Fuse Insert the new fuse securely into the fuse cavity until you hear a click sound. Reconnect the power cord and verify that the Power LED is lit green. Version 6.8 Mediant 800B Gateway & E-SBC... - Page 40 Mediant 800B Gateway & E-SBC This page is intentionally left blank. Hardware Installation Manual Document #: LTRT-10257...
-
Page 41: A Installing Centos Ver. 4.7 On Osn Server
Obtain the following files from AudioCodes: ♦ Binary compiled CentOS 4.7 driver for Intel e1000e Ethernet controller on Mediant 800B Gateway and SBC (e1000e.ko) ♦ Manual pages (e1000e.7.gz) Copy the files to the /root directory. Remove any old e1000e modules (if any) and install the new module and manual pages: #>... - Page 42 Hardware Installation Manual www.audiocodes.com...
