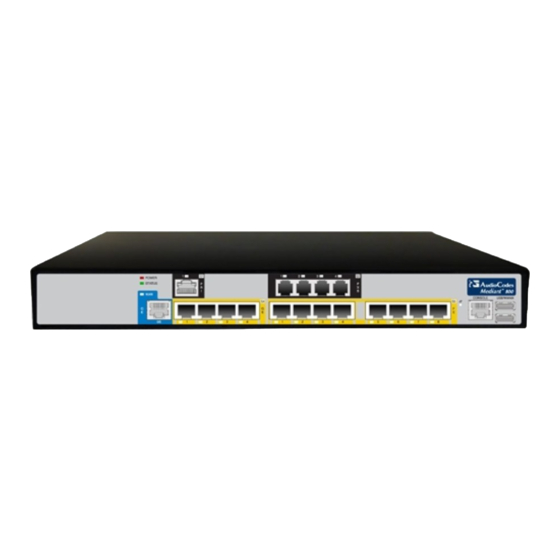

AudioCodes Mediant 800 Quick Setup Manual

Gateway and e-sbc
Hide thumbs Also See for Mediant 800:

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual
Mediant™ 800 Gateway and E-SBC
Quick Setup Guide
Welcome
Congratulations on purchasing your AudioCodes Mediant 800 Gateway and Enterprise Session Border
Controller (E-SBC), hereafter, referred to as the device! This Quick Guide applies to hardware revisions B and C.
This document is intended to provide basic setup instructions for initial access to the device and for connecting
it to your network. For advanced configuration and cabling, refer to the User's Manual and Hardware Manual
respectively, which can be downloaded from AudioCodes website at
https://www.audiocodes.com/library/technical-documents.
Before you begin, please read the

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)
are shipped with your device:
4 x anti-slide bumpers for desktop mounting
2 x mounting brackets for 19-inch rack mounting
1 x AC power cable
1 x AC/DC power adaptor (supplied only when DC power is ordered, which is applicable only to Rev. C)
Regulatory Information document
Safety Precautions
on page 9.
1 |
P a g e

Advertisement

loading

Related Manuals for AudioCodes Mediant 800

Summary of Contents for AudioCodes Mediant 800

  • Page 1: Package Contents

    Quick Setup Guide Welcome Congratulations on purchasing your AudioCodes Mediant 800 Gateway and Enterprise Session Border Controller (E-SBC), hereafter, referred to as the device! This Quick Guide applies to hardware revisions B and C. This document is intended to provide basic setup instructions for initial access to the device and for connecting it to your network.
  • Page 2 Physical Description of Front Panel Mediant 800 Rev. B Mediant 800 Rev. C [The number and type of port interfaces depend on your ordered hardware configuration.] POWER (Rev. B) LED indicating AC power status: AC PWR (Rev. C) Green On AC power is received by device.
  • Page 3 FXS port status LED: Green On Phone is in off-hook position. Green Flashing Phone is ringing. Red On Malfunction in line or out of service due to Serial  Peripheral Interface (SPI) failure. Port is disabled.  Phone is in on-hook position or no power. FXO port status LED: Green On FXO line with PBX is in off-hook position.
  • Page 4 Physical Description of Rear Panel [The number and type of port interfaces depend on your ordered hardware configuration.] DC IN (Rev. C) DC power inlet for accepting a DC terminal block plug. Note: DC power is a separate orderable item and applicable only to Rev. C. Protective earthing screw for grounding the device.

  • Page 5: Mounting The Device

    Mounting the Device You can mount the device on a desktop using the four anti-slide bumpers (supplied), which you need to stick on the grooves located on the underside of the device. Alternatively, you can mount the device in a standard 19-inch rack. Rack mounting involves placing the device on a pre-installed rack shelf (separate orderable item), and then securing the device to the rack frame using the mounting brackets (supplied), shown attached in the figure below.
  • Page 6 DC Power: Insert the male DC plug into the DC inlet (DC 12V) connector located on the device's  rear panel. Make sure that the latch faces up (see figure below) and that it snaps into the inlet. Plug the female connector located on one end of the AC power cord (supplied) into the AC/DC power adaptor.
  • Page 7 Assigning an IP Address to the Device Use the device's factory default IP address (192.168.0.2/24 and Default Gateway 192.168.0.1) to initially access the device's Web-based management interface and then change it to suit your networking addressing scheme for subsequent connectivity. Using a CAT-5e/6 straight-through RJ-45 Ethernet cable, connect the device's Ethernet port GE 1 (front panel) to the LAN port on a computer.
  • Page 8 Select the OAMP interface ('Application Type' with OAMP + Media + Control), click Edit, and then in the dialog box, modify the device's OAMP interface. Click Apply to submit your changes. On the toolbar, click Reset to access the Maintenance Actions page. On the Maintenance Actions page, click Reset to save your new settings to flash memory with a device reset.

  • Page 9: Safety Precautions

    Operate the device only from the type of power source indicated on the chassis.  For DC power, use only the AC/DC power adaptor that is supplied by AudioCodes.  Installation of the device must be in accordance with national wiring codes and conform to local ...
  • Page 10 Website: https://www.audiocodes.com/ ©2019 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice and CloudBond are trademarks or registered trademarks of AudioCodes Limited.
