PROGRAMMING

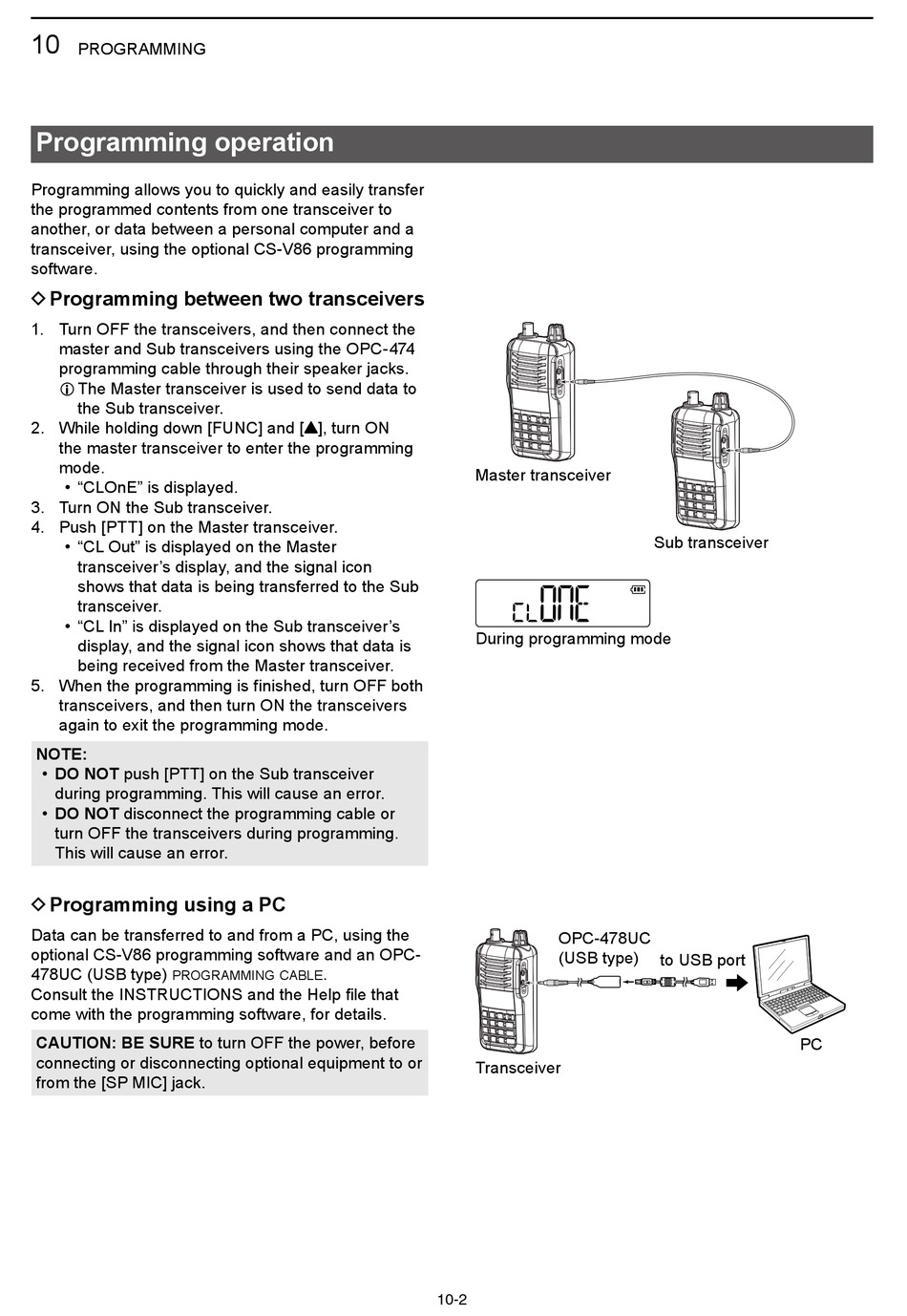

Programming operation

Programming allows you to quickly and easily transfer
the programmed contents from one transceiver to
another, or data between a personal computer and a
transceiver, using the optional CS-V86 programming
software.
D Programming between two transceivers
1. Turn OFF the transceivers, and then connect the
master and Sub transceivers using the OPC-474
programming cable through their speaker jacks.
L The Master transceiver is used to send data to
the Sub transceiver.
2. While holding down [FUNC] and [Y], turn ON
the master transceiver to enter the programming
mode.
• "CLOnE" is displayed.
3. Turn ON the Sub transceiver.
4. Push [PTT] on the Master transceiver.
• "CL Out" is displayed on the Master
transceiver's display, and the signal icon
shows that data is being transferred to the Sub
transceiver.
• "CL In" is displayed on the Sub transceiver's
display, and the signal icon shows that data is
being received from the Master transceiver.
5. When the programming is finished, turn OFF both
transceivers, and then turn ON the transceivers
again to exit the programming mode.
NOTE:
• DO NOT push [PTT] on the Sub transceiver
during programming. This will cause an error.
• DO NOT disconnect the programming cable or
turn OFF the transceivers during programming.
This will cause an error.
D Programming using a PC
Data can be transferred to and from a PC, using the
optional CS-V86 programming software and an OPC-
478UC (USB type)
programming cable
ConsulttheINSTRUCTIONSandtheHelpfilethat
come with the programming software, for details.
CAUTION: BE SURE to turn OFF the power, before
connecting or disconnecting optional equipment to or
from the [SP MIC] jack.
Master transceiver
During programming mode
.
Transceiver
10-2
Sub transceiver
OPC-478UC
(USB type)
to USB port
PC
