9

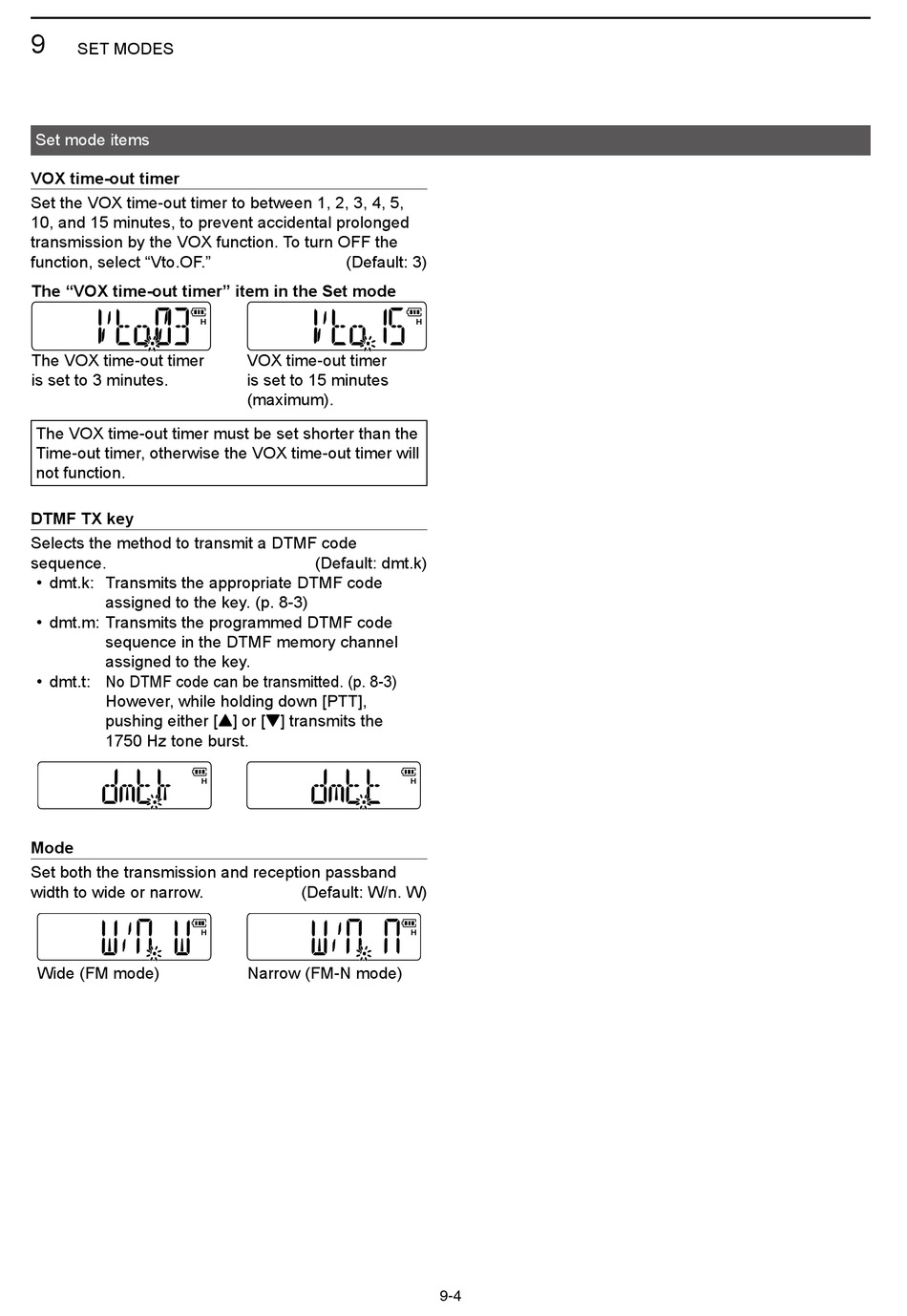

SET MODES
Set mode items

VOX time-out timer

Set the VOX time-out timer to between 1, 2, 3, 4, 5,
10, and 15 minutes, to prevent accidental prolonged
transmission by the VOX function. To turn OFF the
function, select "Vto.OF."
The "VOX time-out timer" item in the Set mode
The VOX time-out timer
is set to 3 minutes.
The VOX time-out timer must be set shorter than the
Time-out timer, otherwise the VOX time-out timer will
not function.

DTMF TX key

Selects the method to transmit a DTMF code
sequence.
• dmt.k: Transmits the appropriate DTMF code
assigned to the key. (p. 8-3)
• dmt.m: Transmits the programmed DTMF code
sequence in the DTMF memory channel
assigned to the key.
• dmt.t: No DTMF code can be transmitted. (p. 8-3)
However, while holding down [PTT],
pushing either [Y] or [Z] transmits the
1750 Hz tone burst.

Mode

Set both the transmission and reception passband
width to wide or narrow.
Wide (FM mode)
(Default: 3)
VOX time-out timer
is set to 15 minutes
(maximum).
(Default: dmt.k)
(Default: W/n. W)
Narrow (FM-N mode)
9-4
