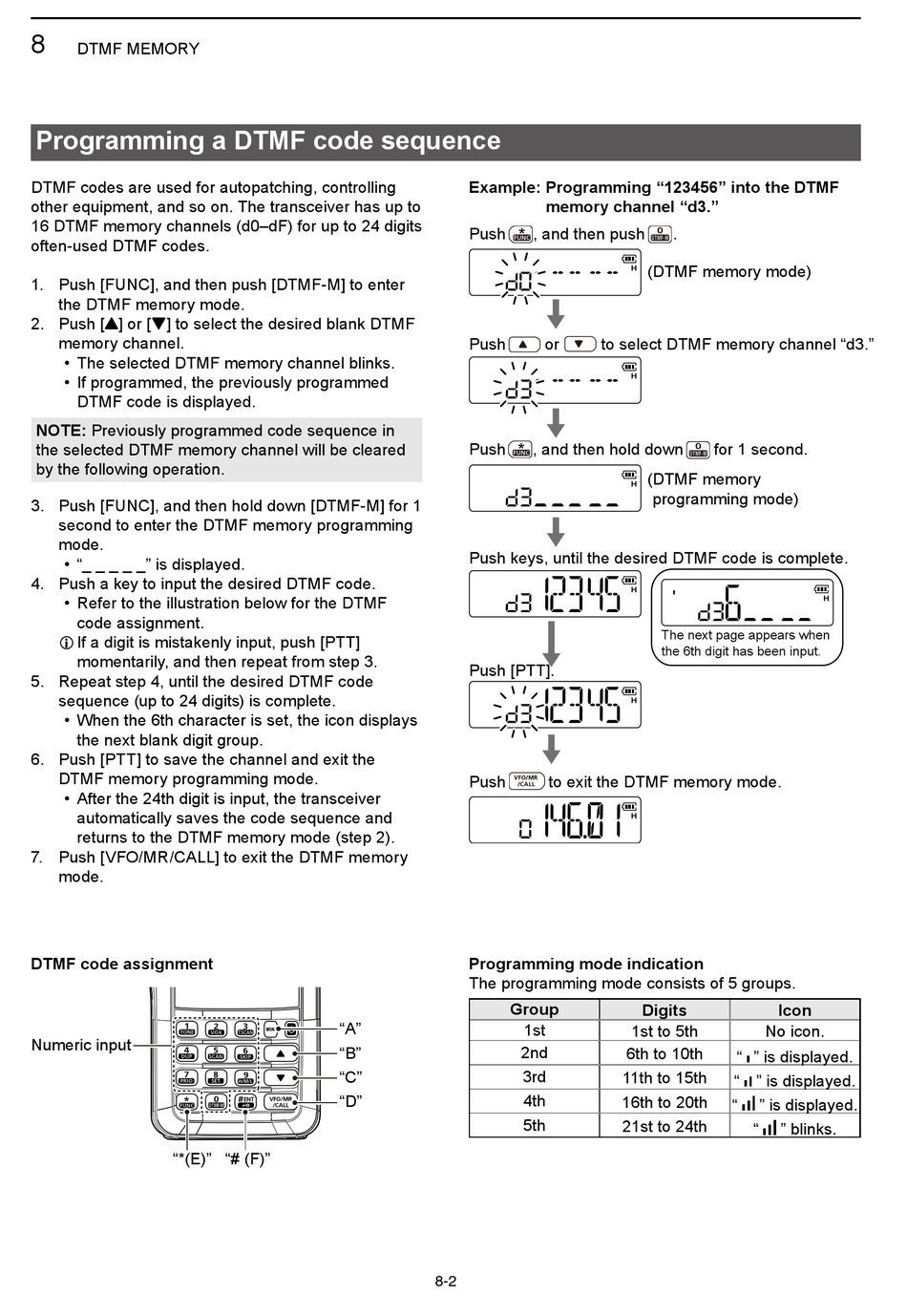

DTMF MEMORY

Programming a DTMF code sequence

DTMF codes are used for autopatching, controlling
other equipment, and so on. The transceiver has up to
16 DTMF memory channels (d0–dF) for up to 24 digits
often-used DTMF codes.
1. Push [FUNC], and then push [DTMF-M] to enter
the DTMF memory mode.
2. Push [Y] or [Z] to select the desired blank DTMF
memory channel.
• The selected DTMF memory channel blinks.
• If programmed, the previously programmed
DTMF code is displayed.
NOTE: Previously programmed code sequence in
the selected DTMF memory channel will be cleared
by the following operation.
3. Push [FUNC], and then hold down [DTMF-M] for 1
second to enter the DTMF memory programming
mode.
• "_ _ _ _ _" is displayed.
4. Push a key to input the desired DTMF code.
• Refer to the illustration below for the DTMF
code assignment.
L If a digit is mistakenly input, push [PTT]
momentarily, and then repeat from step 3.
5. Repeat step 4, until the desired DTMF code
sequence (up to 24 digits) is complete.
• When the 6th character is set, the icon displays
the next blank digit group.
6. Push [PTT] to save the channel and exit the
DTMF memory programming mode.
• After the 24th digit is input, the transceiver
automatically saves the code sequence and
returns to the DTMF memory mode (step 2).
7. Push [VFO/MR/CALL] to exit the DTMF memory
mode.

DTMF code assignment

Numeric input
"*(E)" "# (F)"
Example: Programming "123456" into the DTMF
Push
Push
Push
Push keys, until the desired DTMF code is complete.
Push [PTT].
Push

Programming mode indication

The programming mode consists of 5 groups.
"A"
"B"
"C"
"D"
8-2
memory channel "d3."
, and then push .
(DTMF memory mode)
or to select DTMF memory channel "d3."
, and then hold down
( DTMF memory
programming mode)
The next page appears when
the 6th digit has been input.
to exit the DTMF memory mode.
Group
Digits
1st
1st to 5th
2nd
6th to 10th
3rd
11th to 15th
4th
16th to 20th
5th
21st to 24th
for 1 second.
Icon
No icon.
" " is displayed.
" " is displayed.
" " is displayed.
" " blinks.
