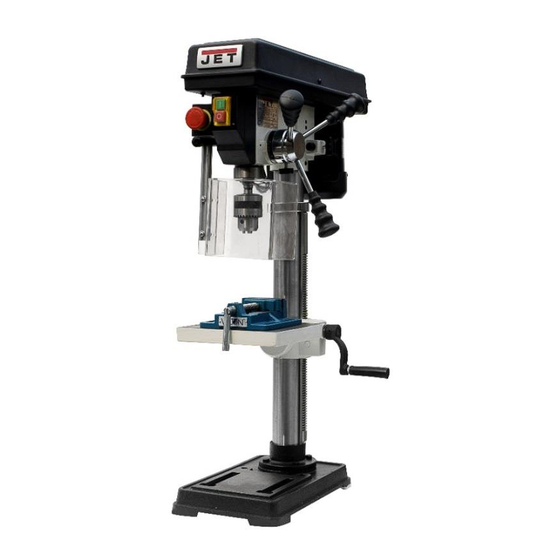

- Page 1 JDP- 8BM JDP-10BM DRILL PRESS JDP-13FM JDP- 20FT Operating Instructions JPW (Tool) AG Tämplerlistrasse 5 CH-8117 Fällanden Switzerland Phone +41 44 806 47 48 +41 44 806 47 58 www.jettools.com 2017-12...
- Page 2 CE‐Conformity Declaration CE‐Konformitätserklärung Déclaration de Conformité CE Product / Produkt / Produit: Drill Press Säulenbohrmaschine Perceuse à colonne JDP‐8BM/JDP‐10BM/JDP‐13FM/JDP‐20FT Brand / Marke / Marque: Manufacturer / Hersteller / Fabricant: JPW (Tool) AG, Tämperlistrasse 5, CH‐8117 Fällanden Schweiz / Suisse / Switzerland We hereby declare that this product complies with the regulations Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht Par la présente, nous déclarons que ce produit correspond aux directives suivantes 2006/42/EC Machinery Directive Maschinenrichtlinie Directive Machines ...
- Page 3 The machine is designed to operate in Before machining, remove any nails and General safety notes closed rooms and must be placed stable other foreign bodies from the workpiece. on firm and levelled table surface. Drill press can be dangerous if not used Make sure to guide and hold the chisel properly.
-
Page 4: Table Of Contents
Dear Customer, Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been prepared for the owner and operators of a JET JDP-8BM / JDP-10BM / JDP-13FM / JDP-20FT drill press to promote safety during installation, operation and maintenance procedures. -
Page 5: Remaining Hazards
Daily inspect the function and Do not use the machine in a dump If a work piece overhangs the table existence of the safety appliances environment and do not expose it to such that it will fall or tip if not held, before you start the machine. -
Page 6: Noise Emission
Dimensions 500x320x830mm Machine base Thread the table bracket lock handle Weight 39 kg Column and bracket assembly (A, Fig 2) into the table bracket (B). Head assembly Mains 230V ~1/N/PE 50Hz Table Output power 0.18 kW (1/4HP) S1 Table bracket lock handle Reference current Table bracket rising handle Extension cord (H05VV-F): 3x0.75mm²... -
Page 7: Mains Connection
Fig 4 Thoroughly clean the spindle opening, 5.4 Starting operation the arbor, and the chuck. Install three down feed handles (A, Fig You can start the machine with the Important: 5) into the down feed hub (B). green on button. The red button on the These three pieces must be free of main switch stops the machine. -
Page 8: Setup And Adjustments
Support long workpieces with helping Change the belts location according roller stands. the speed chart and the speed you desire. Do not use wire wheels, router bits, shaper cutters, circle cutters, or rotary Tension the belt and tighten two slide planers on this drill press. -
Page 9: Maintenance And Inspection
-the teeth of the quill. Clean the machine regularly. Defective safety devices must be 11. Available accessories replaced immediately. Refer to the JET-Pricelist. Repair and maintenance work on the electrical system may only be carried out by a qualified electrician. 9. Trouble shooting Motor doesn’t start... - Page 10 Replacement Parts JDP-8BM Assembly Breakdown...
- Page 11 JDP-8BM Parts List for Breakdown (1/2) Index Part Description Size Qty. 1 ... JDP8BM-001 ......Base ......................1 2 ... JDP8BM-002 ......Column support ................... 1 3 ... JDP8BM-003 ......Hex Cap Screw ............M8×20 ......3 4 ...
- Page 12 JDP-8BM Parts List for Breakdown (2/2) Index Part Description Size Qty. 59 ..JDP8BM-059 ......Shifter Bolt ....................2 60 ..JDP8BM-060 ......Chuck Guard Rod ..................1 61 ..JDP8BM-061 ......Cross Pan Head Screw ..........M5×40 ......3 62 ..
- Page 13 JDP-10BM Assembly Breakdown...
- Page 14 JDP-10BM Parts List for Breakdown (1/2) Index Part Description Size Qty. 1 ... JDP10BM-001 ......Base ......................1 2 ... JDP10BM-002 ......Column support ................... 1 3 ... JDP10BM-003 ......Hex Cap Screw ............M8×20 ......4 4 ...
- Page 15 JDP-10BM Parts List for Breakdown (2/2) Index Part Description Size Qty. 57 ..JDP10BM-057 ......Tapping Screw ............M4.2×9 ......2 58 ..JDP10BM-058 ......Electromagnetic Switch ................1 60 ..JDP10BM-060 ......Switch Plate ....................1 61 ..JDP10BM-061 ......Cross Pan Head Screw ..........M5×12 ......4 62 ..
- Page 16 JDP-13FM Assembly Breakdown...
- Page 17 JDP-13FM Parts List for Breakdown (1/2) Index Part Description Size Qty. 1 ... JDP13FM-001 ......Base ......................1 2 ... JDP13FM-002 ......Column support ................... 1 3 ... JDP13FM-003 ......Hex Cap Screw ............M10×40 ......4 4 ...
- Page 18 JDP-13FM Parts List for Breakdown (2/2) Index Part Description Size Qty. 57 ..JDP13FM-057 ......Emergency Stop Switch Box ................. 1 58 ..JDP13FM-058 ......Cross Pan Head Screw ..........M4×12 ......2 59 ..JDP13FM-059 ......E-Stop Switch Box Lid ................... 1 60 ..
- Page 19 JDP-20FT Assembly Breakdown...
- Page 20 JDP-20FT Parts List for Breakdown (1/3) Index Part Description Size Qty. 1 ... JDP20FT-001 ......Base ......................1 2 ... JDP20FT-002 ......Column Support ................... 1 3 ... JDP20FT-003 ......Hex Cap Screw ............M12×40 ......4 4 ...
- Page 21 JDP-20FT Parts List for Breakdown (2/3) Index Part Description Size Qty. 57 ..JDP20FT-057 ......Motor Rod ....................2 58 ..JDP20FT-058 ......Motor Base ....................1 59 ..JDP20FT-059 ......Lock Washer ............12 ......... 2 60 ..JDP20FT-060 ......Nut ................. M12 ......2 61 ..
- Page 22 Wiring Diagrams JDP‐8BM, JDP‐10BM ……………….1~230V, PE, 50Hz JDP‐13FM ……………….1~230V, PE, 50Hz ...
- Page 23 JDP‐20FT ……………….3~400V, PE, 50Hz ...
