5.2

Maintenance utility

The maintenance utility is esclusively used to perform the adjustments in boards repair laboratory.

5.3 Self-diagnostic mode

Individual explanation of LEVEL0 and LEVEL1.

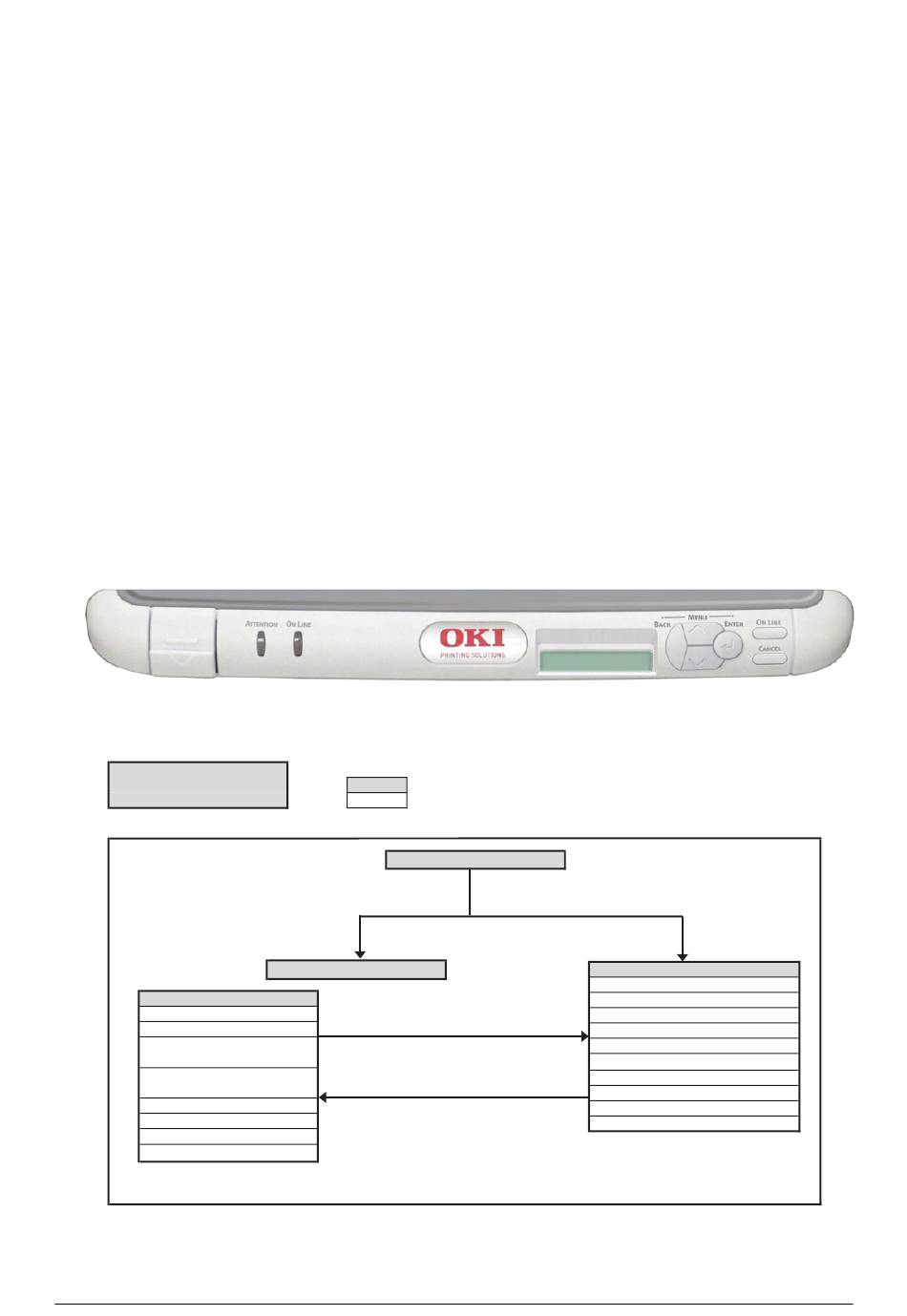

5.3.1 Operator panel

The explanation of the operations relating to the self-diagnosis presupposes the
Self-diagnostic Self-diagnostic
mode layout (Overall) mode layout (Overall)
LEVEL0-engine status indication
Engine status indication
(Heater temperature)
(Environmental temperature
& humidity indication)
Indication of each voltage
(TR, CH, DB, SB) during printing
Toner sensor
RFID internal noise monitoring
MOTOR INFORMATION
Error detail
Y110260-4
(1) Transition of menu items
xxxxx Level transition is possible only when a part is displayed.
xxxxx
Transition of is activated with [MENU-] or [MENU+].
POWER ON
Not pressed
Normal operation mode
Press [MENU+] and [ONLINE]
simultaneously.(3seconds)
Press [MENU-], [MENU+], [ENTER] and
[BACK] simultaneously.(6seconds)
d-Color P116 Service Manual
Hold down [MENU+] and [MENU-], until the system
maintenance menu is displayed.
Then, select ENGINE DIAG MODE and press [ENTER].
LEVEL1-ENGINE DIAG MODE XX.XX
MOTOR & CLUTCH TEST
REG ADJUST TEST
DENS ADJ TEST
CONSUMABLE STATUS
PRINTER STATUS
FACTORY MODE SET
SENSOR SETTING
LED HEAD DATA
SWITCH SCAN
TEST PRINT
