4.2.11 Feeder unit

(1) Open the top cover.
(2) Open the front cover. (See Subsection 4.2.4)
Remove the Lever_Lock_Assembly 1.
(3)
(4) Remove the left side cover. (See Subsection 4.2.1)
(5) Remove the right side cover. (See subsection 4.2.2)
(6) Detach the plate shield front. (See Subsection 4.2.16)
Remove a connector 3 connecting to the feeder unit 2 from the TB3 board (main board).
(7)
(8) Remove four screws (silver) 4 to remove the feeder unit 2.
Remove claws to remove the cover sensor 5.
(9)
(10) Remove the MIP board (front sensor board) 6.
TB3-PCB
(Main circuit board PCB)
Y110260-4
5
3
2

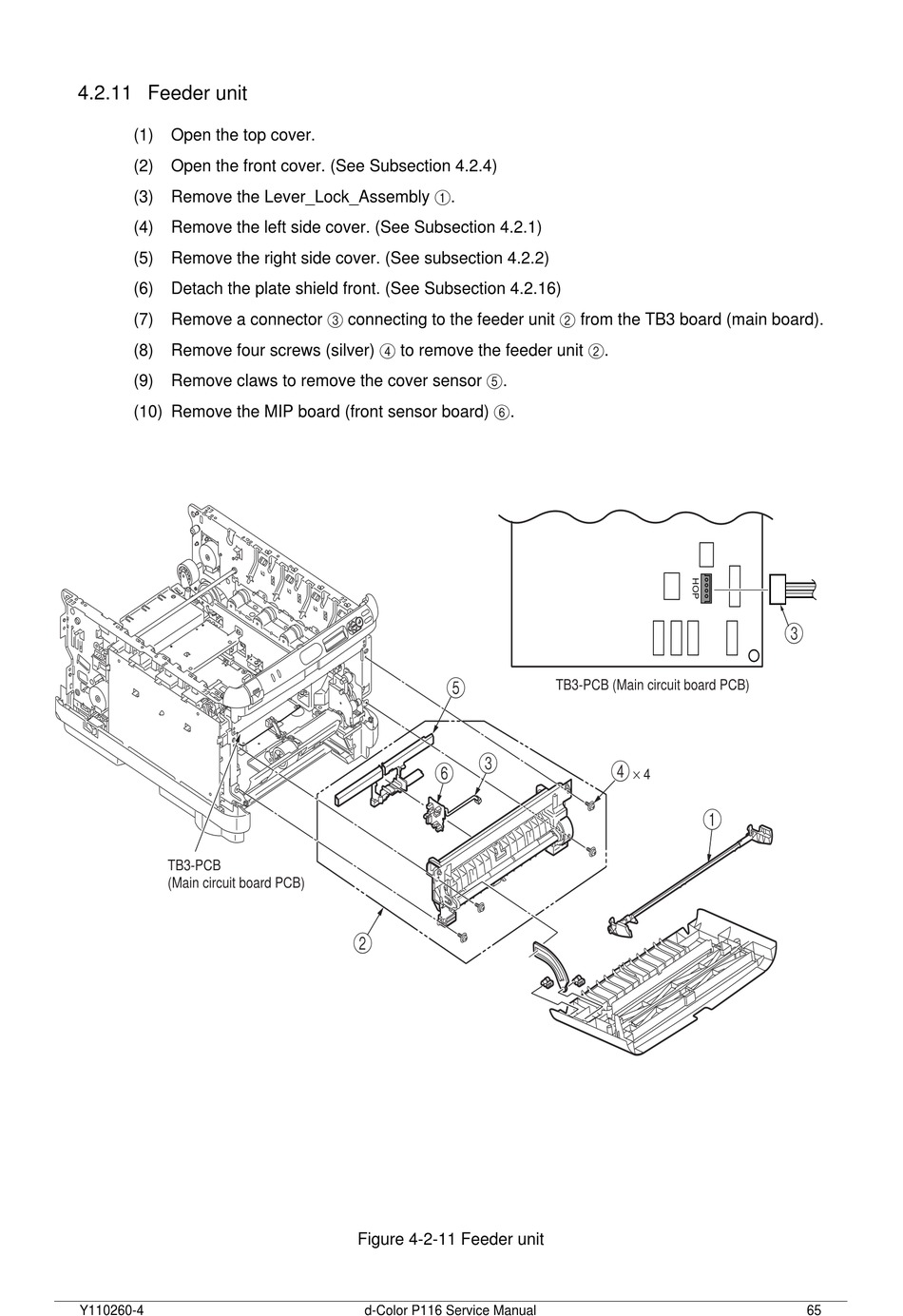

Figure 4-2-11 Feeder unit
