- Page 1 500 Series Instruction manual...
-
Page 3: Table Of Contents
Overview of the operating menus ... 26 Cleaning the devices ... 29 Specifications ... 32 Manufacturer Declarations ... 36 For an animated instruction manual, visit the respective product pages at www.sennheiser.com. There you will also find detailed instruction manuals for the individual devices. Contents... -
Page 4: Important Safety Instructions
• Heed all warnings and follow all instructions in this instruction manual. • Only clean the devices when they are not connected to the mains. Use a cloth for cleaning. • Only use attachments/accessories specified by Sennheiser. • Refer all servicing to qualified service personnel. -
Page 5: Bodypack Transmitter And Radio Microphone
• Danger due to high volumes This device is capable of producing sound pressure exceeding 85 dB(A). 85 dB(A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for the duration of a working day. It is used as a basis according to the specifications of industrial medicine. -
Page 6: The Ew 500 G3 Evolution Wireless Series
The frequency bank system Please note: Frequency usage is different for each country. Your Sennheiser partner will have all the necessary details on the available legal frequencies for your area. The devices are available in 6 UHF frequency ranges with 1,680 frequencies per frequency... -

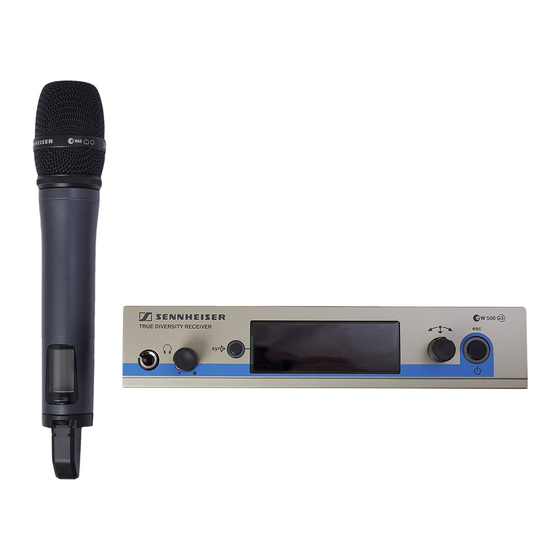

Page 7: Product Overview
Product overview Overview of the EM 500 receiver ³ · » ¿ º ¾ Operating elements – front panel ³ Headphone output, ¼” (6.3 mm) jack socket ( ) · Headphone volume control » button, backlit ¿ Infra-red interface ´ Display panel, backlit in orange ²... -
Page 8: Overview Of The Displays Of The Em 500 Receiver
Product overview Overview of the displays of the EM 500 receiver After switch-on, the receiver displays the standard display illustrations and examples of the different standard displays, please refer to page 25. This standard display displays the operating states of the receiver and provides the most important information on the received transmitter –... - Page 9 Display Meaning Transmitter battery Charge status: status When the battery charge status is critical, additionally appears on the display panel. Lock mode icon Lock mode is activated Product overview approx. 100% approx. 70% approx. 30% Battery icon is flashing; charge status is critical “LOW BATT”...
-
Page 10: Overview Of The Sk 500 Bodypack Transmitter
Product overview Overview of the SK 500 bodypack transmitter Operating elements ³ Microphone/instrument input (MIC/LINE), 3.5 mm jack socket, lockable · MUTE » Antenna ¿ Operation and battery status indicator, red LED (lit = ON/flashing = ´ Audio overmodulation indicator, yellow LED (lit = ²... -
Page 11: Overview Of The Displays Of The Sk 500 Bodypack Transmitter
Overview of the displays of the SK 500 bodypack transmitter After switch-on, the bodypack transmitter displays the standard display “Frequency/Name”. For further illustrations and examples of the different standard displays, refer to page 25. The display backlighting is automatically reduced after approx. 20 seconds. 543.200 ew500 G3 Display... -
Page 12: Overview Of The Skm 500 Radio Microphone
Product overview Overview of the SKM 500 radio microphone º Operating elements ³ Microphone head (interchangeable) · Name and pick-up pattern of the micro- phone head (not visible here) » Body of radio microphone ¿ Battery compartment (not visible from outside) ´... -
Page 13: Overview Of The Displays Of The Skm 500 Radio Microphone
Overview of the displays of the SKM 500 radio microphone After switch-on, the radio microphone displays the standard display “Frequency/Name”. For further illustrations and examples of the different standard displays, refer to page 25. The display backlighting is automatically reduced after approx. 20 seconds. 543.200 ew500 G3 Display... -
Page 14: Putting The Devices Into Operation
Align the antennas in a V-shape. When using more than one receiver, we recommend connecting remote antennas and, if necessary, using Sennheiser antenna accessories. Fore more information, visit the ew G3 product page at www.sennheiser.com. to the sides of the receiver using the previously removed... - Page 15 PC running the supplied ware. For information on network operation, refer to the instruction manual of the EM 500 receiver available on the ew G3 product page at www.sennheiser.com. Connecting the mains unit Only use the supplied mains unit. It is designed for the receiver and ensures safe operation.
-
Page 16: Sk 500 Bodypack Transmitter
The audio input is designed for the connection of both condenser microphones and instru- ments (e.g. guitars). DC powering of the condenser microphones is via the audio input. Use one of the recommended Sennheiser microphones or the optional CI 1 instrument cable. - Page 17 Attaching and positioning the MKE 2 microphone Use the microphone clip to attach the microphone to clothing (e.g. tie, lapel). The MKE 2 clip-on microphone has an omni-directional pick-up pattern. It is therefore not necessary to position it precisely. Attaching the bodypack transmitter to clothing You can use the belt clip to attach the bodypack transmitter to clothing (e.g.
-
Page 18: Skm 500 Radio Microphone
SKM 500 radio microphone Inserting the batteries/accupack For powering the radio microphone, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack. Unscrew the lower part of the radio microphone from the radio microphone’s body »... -
Page 19: Using The Devices
Do not touch the contacts of the radio microphone nor the contacts of the micro- phone head. The contacts can become dirty or damaged if touched. When unscrewing the microphone head during operation, the muting function is automatically activated. “MUTE” appears on the display panel. When screwing the microphone head back to the radio microphone, the muting function is deactivated. -
Page 20: Switching The Devices On/Off
Using the devices If you cannot establish a transmission link between transmitter and receiver: Make sure that transmitter and receiver are set to the same frequency bank and to the same channel. If necessary, read the chapter “If a problem occurs ...” on page 30. Switching the devices on/off EM 500 receiver To switch the receiver on:... - Page 21 SK 500 bodypack transmitter ¸ To switch the bodypack transmitter ¸ and open the battery compartment cover µ. Push the two catches Briefly press the ON/OFF ON/OFF The bodypack transmitter transmits an RF signal. The transmission icon displayed. ¿ The red lights up and the standard display “Frequency/Name”...
- Page 22 Using the devices Use this function to save battery power or to prepare a bodypack transmitter for use during live operation without causing interference to existing transmission links. activate SKM 500 radio microphone To switch the radio microphone ON/OFF You can switch the radio microphone on and For more information, see below.
-
Page 23: Synchronizing A Transmitter With The Receiver
Use this function to save battery power or to prepare a radio microphone for use during live operation without causing interference to existing transmission links. activate Synchronizing a transmitter with the receiver You can synchronize a suitable transmitter of the ew 500 G3 series with the receiver. During synchronization, the following parameters are transferred to the transmitter: Setting “Frequency... -
Page 24: Deactivating The Lock Mode Temporarily
Using the devices Deactivating the lock mode temporarily You can activate or deactivate the automatic lock mode via the page 26). If the lock mode is activated, you have to temporarily deactivate it In order to be able to operate the devices: EM 500 SK 500 SKM 500... -
Page 25: Muting The Audio Signal Or Deactivating The Rf Signal
Muting the audio signal or deactivating the RF signal EM 500 mute the audio signal: When one of the standard displays is shown on the display panel, press the STANDBY button. “RX Mute On?” appears on the display panel. Press the jog dial. The audio signal is muted. - Page 26 Using the devices Audio signal is muted Transmitter’s display panel: Receiver’s display panel: only when activated on the receiver (see above) Audio signal is activated (muting is deactivated) Transmitter’s display panel: Receiver’s display panel: RF signal is deactivated Transmitter’s display panel: Receiver’s display panel: only when activated on the receiver (see above) RF signal is activated...
-
Page 27: Selecting A Standard Display
Information on the soundcheck function and the guitar tuner function can be found in the instruction manual of the EM 500 receiver available on the ew G3 product page at www.sennheiser.com. SK 500 and SKM 500 To select a standard display: SK 500 Press the rocker button. -
Page 28: Overview Of The Operating Menus
If you then turn the jog dial to the right, you switch the squelch on again. CAUTION! For more detailed information on the operating menus, refer to the individual instruction manuals of the devices. These instruction manuals can be down- loaded from the respective product pages at www.sennheiser.com. “Easy Setup” Reset List Current List... - Page 29 Display Function of the menu item Easy Setup Scans for unused frequency presets, releases and selects frequency presets Frequency Preset Changes the frequency bank and the channel Name Enters a freely selectable name AF Out Adjusts the audio output level Adjustment range: –24 dB to +24 dB, adjustable in 3-dB steps, 6 dB gain reserve Special function “gain reserve”: When you have adjusted a level of +18 dB, turn the jog dial...
- Page 30 Overview of the operating menus Display Function of the menu item TX-Mute • Transmitter is muted or • no pilot tone RX-Mute Receiver is muted Low Battery Charge status of the transmitter battery/the BA 2015 accupack is critical Exit Exits the submenu “Warnings” and returns to the extended menu SK 500 and SKM 500 Main menu “Menu”...
-
Page 31: Cleaning The Devices
Cleaning the devices CAUTION! Liquids can damage the electronics of the devices! Liquids entering the housing of the devices can cause a short-circuit and damage the electronics. Keep all liquids away from the devices. EM 500 Before cleaning, disconnect the device from the mains. Use a slightly damp cloth to clean the receiver from time to time. -
Page 32: If A Problem Occurs
Cleaning the devices If a problem occurs ... EM 500 Problem Possible cause Receiver cannot be oper- Lock mode is activated ated, “Locked” appears on the display panel No operation indication No mains connection No RF signal Transmitter and receiver are not on the same channel Transmitter is out of range RF signal available,... - Page 33 If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.sennheiser.com under “Service &...
-
Page 34: Specifications
75 dB Off, 5 to 25 dB V in steps of 2 dB can be switched off 2 BNC sockets Sennheiser –3 dB at 180 Hz –3 dB at 180 Hz +6 dB at 10 kHz +6 dB at 10 kHz 115 dBA 0.9%... - Page 35 Temperature range In compliance with Europe: USA: Canada: Certified by cCSAus KL, 60065, CSA. For accessories and information on connector assignment, visit the ew G3 product page at www.sennheiser.com. SK 500 and SKM 500 RF characteristics Modulation Frequency ranges Transmission frequencies...
- Page 36 Weight (incl. batteries) In compliance with (SK and SKM) Europe: Approved by (SK) Canada: USA: Approved by (SKM) Canada: USA: Sennheiser microphone: 80–18,000 Hz line: 25–18,000 Hz 80–18,000 Hz 110 dBA 0.9% 40 k unbalanced/1 M switchable SK: 60 dB, adjustable in steps of 3 dB SKM: 48 dB, adjustable in steps of 6 dB –10°C to +55°C...
- Page 37 Microphones (SK 500) MKE 2 Microphone type condenser Sensitivity 5 mV/Pa Pick-up pattern omni-directional Max. SPL 142 dB SPL Microphone heads (SKM 500) MMD 935-1 Radio microphone type dynamic Sensitivity 2.5 mV/Pa Pick-up pattern cardioid Max. SPL 154 dB SPL Polar diagrams and frequency response curves of the microphone heads (SKM 500) Polar diagram MMD 935-1 0°...
-
Page 38: Manufacturer Declarations
(super-cardioid) Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •... - Page 39 • Consult the dealer or an experienced radio/TV technician for help. These class B digital devices comply with the Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Sennheiser elec- tronic Corp. may void the FCC authorization to operate this equipment.
- Page 42 Sennheiser electronic GmbH & Co. KG Printed in Germany Am Labor 1, 30900 Wedemark, Germany Publ. 01/09 www.sennheiser.com 529662/A01...
