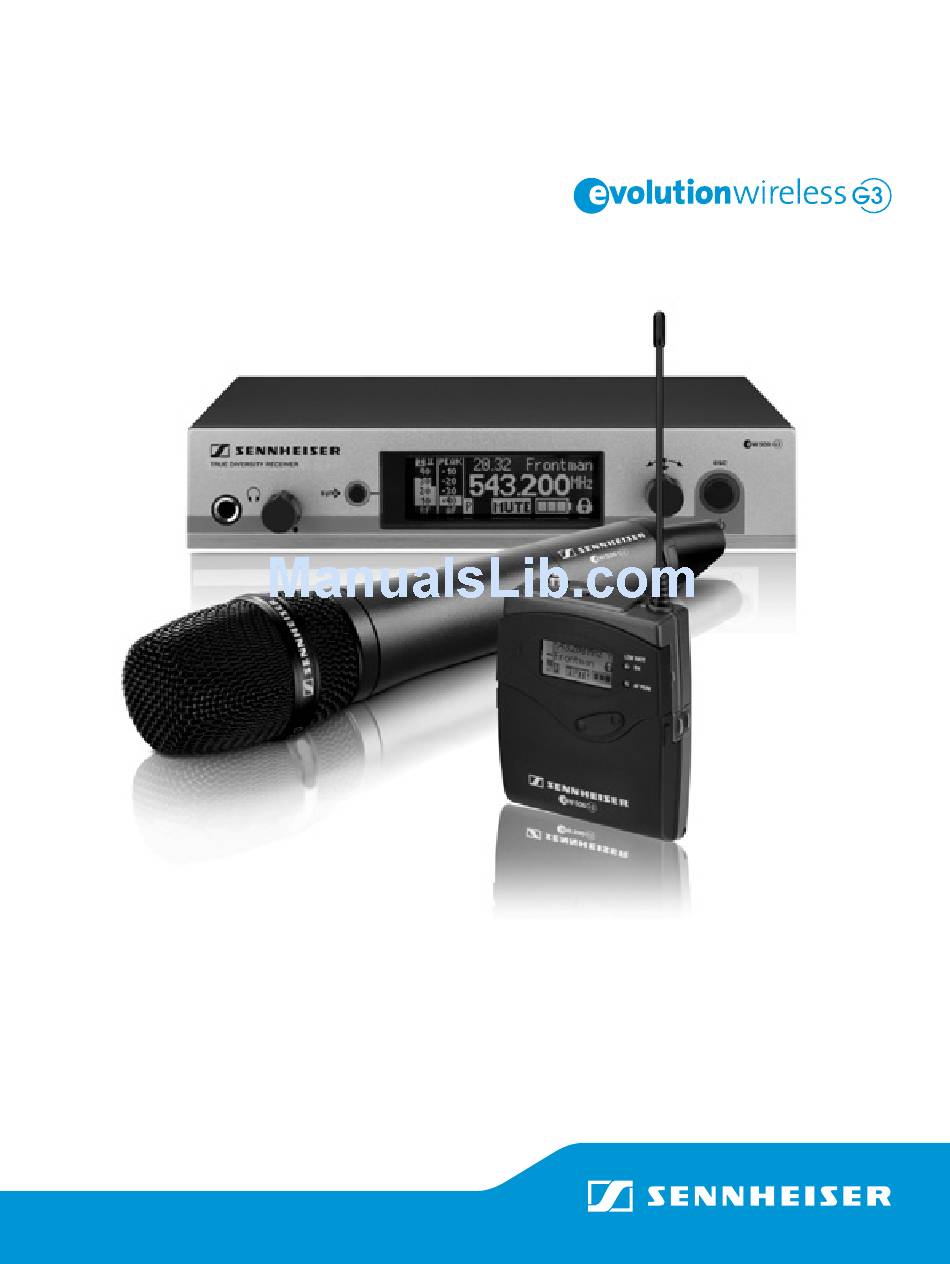

- Page 1 WORKING WITH COmpReHeNsIve GuIde TO seTTING up, CONfIGuRING aNd usING evOluTION WIReless G3 sysTems...
- Page 2 applICaBle fOR use IN THe u.s. CONsumeR aleRT Most users do not need a license to operate a wireless microphone system. Nevertheless, operat- ing a microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.
-
Page 3: Table Of Contents
Antenna Distribution and Mounting Packages ...16 Frequently Asked Questions ...........17 Conclusion ................19 Appendix: Frequency Preset Charts .......19 Visit Sennheiser's YouTube channel at: www.youtube.com/sennheiserusa to watch several video clips that will help you set up and operate the evolution wireless G3 systems... -
Page 4: Introduction
G3 is used with confidence every day by professional users the world over. about uHf Wireless Sennheiser wireless systems operate in the UHF (Ultra High Frequency) range. UHF is the most common, most reliable format for wireless systems today. Within the US, wireless systems are allowed to operate from 470 –... -
Page 5: The Building Blocks Of A Wireless System
The Building Blocks of a Wireless System Every wireless system consists of three main components: 1) Transmitter The transmitter accepts a (mic or line) input signal, converts it into an RF (radio frequency) signal, and then transmits it. G3 sKm Handheld Transmitter G3 sKp plug-On Transmitter G3 sK Bodypack Transmitter 2) Receiver... -
Page 6: The Transmitter
Professional events demand reliability and extensive operating range, regardless of conditions. Sennheiser’s evolution wireless G3 transmitters meet that challenge with 30 mW of output power, which can deliver approximately 300 feet of operating range (line of sight) in a good RF environment. -
Page 7: The Receiver
Sennheiser’s G3 portable transmitters can operate for up to 8 hours on a pair of AA batteries. Audio and RF transmission quality is never compromised as batteries run down, thanks to dedicated circuitry that maintains a constant internal system voltage. G3 transmitters also relay battery strength to their receivers, allowing sound engineers to remotely monitor battery life at a glance. -
Page 8: Antennas
Antennas For basic wireless applications, the supplied antenna rods provide excellent results. For more complicated systems, remote antennas can further enhance reliability and reception. There are two common remote antennas used for multi-channel systems: 1) Omnidirectional antennas Omnidirectional antennas, such as the passive A1031-U, receive or radiate UHF signals in a circular, ‘donut’... -
Page 9: Wireless Monitoring Systems
300 Iem + Ie 4 The ew 300IEM G3 monitor system includes Sennheiser’s high quality IE4 stereo earphones, which provide lightweight, comfortable listening. The receiver can also be used with custom ear molds (ordered separately) for the ultimate in wireless comfort, fit and performance. -
Page 10: Choosing A Wireless System
Choosing a Wireless System Sennheiser’s evolution wireless G3 line is available in three performance grades – ew 100 G3, ew 300 G3, and ew 500 G3. All three lines are fully compatible, sharing identical RF technology with 1,680 tunable frequencies, 30 mW of output power and True Diversity reception on all rackmount receivers. -
Page 11: Selecting Systems And Components
To help simplify the matching process, Sennheiser clearly prints the tuning range (A, G or B) on the back of all components. Transmitters and receivers must also use the same compander circuitry to provide correct audio results. Sennheiser’s proprietary HDX™... -
Page 12: Operation: Frequency Considerations
In planning your systems’ frequency requirements, it is advisable to determine what frequencies are in use by local television stations. Sennheiser’s website, www.sennheiserUSA.com, has an interactive Frequency Finder which can assist in identifying the local TV stations broadcasting in your area. -
Page 13: Putting Together A System
Putting Together a System Following are diagrams of several typical wireless microphone and wireless monitor systems. NOTE: For systems larger than 8 channels, we recommend using Sennheiser's 2000 Series wireless: www.sennheiserUSA.com/2000Series Four Channel Wireless System (4 Handheld Systems) model description... -
Page 14: Eight Channel Wireless System
Eight Channel Wireless System (4 Handheld Systems and 4 Lavalier Systems) Model Description ew 365 G3 Handheld systems w/mme865-1 capsules ew 312 G3 lavalier systems w/me2 capsules G3 Omni Kit 8 active splitter kit for eight receiver system using omnidirectional remote paddle antennas, includes two (2) asa1/NT, two (2) a1031-u, Ga3, two (2) Note: various lengths of Rf cable available for antenna run (sold separately) * aB3 boosters may be used to compensate for Rf loss associated... -
Page 15: Single Channel Wireless Monitor System
Single Channel Wireless Monitor System (1 ew 300IEM G3 system, for a single stage mix) NOTE: additional EK300 receivers may be added as needed to monitor the same mix Model Description ew 300Iem G3 Wireless monitor system with rack mountable transmitter, Ga3 rack mount kit, bodypack receiver and Ie4 earbuds Four Channel Wireless Monitor System (4 ew300IEMG3 systems) -
Page 16: Antenna Distribution And Mounting Packages
Antenna Distribution and Mounting Packages Sennheiser has put together several antennas distribution packages to address common wireless scenarios. G3 OMNI KIT 4 G3 DIR KIT 4 G3 FRONT KIT 4 Active splitter kit for four receiver Active splitter kit for four receiver... -
Page 17: Frequently Asked Questions
Can I use rechargeable batteries? Yes. Sennheiser offers the BA2015 rechargeable battery pack and the L2015/NT charging station. Most G3 portable components feature external charging contacts to allow charging the BA2015 by simply placing the portable device into the L2015 charger. -
Page 18: Conclusion
Wireless mic and monitoring systems allow you to express yourself to your audience without being constrained by cables. Sennheiser is committed to making wireless systems powerful, yet simple to use. As such, evolution wireless G3 systems are ready to perform, right out of the box. With exceptional clarity, extended transmission range, and proven durability, evolution wireless G3 is the best choice for affordable, professional wireless performance. -
Page 19: Appendix: Frequency Preset Charts
12 channels in each frequency bank, ew 300 G3 series include the first 24 channels, and ew 500 G3 systems include the maximum 32 channels in each frequency bank. for additional information about evolution wireless G3 or other sennheiser products, please contact sennheiser at (860) 434-9190, or visit our website: www.sennheiserusa.com www.sennheiserUSA.com/G3... - Page 20 Frequency Range A 516–558 MHz Ch. 21 (512–518 MHz) Ch. 24 (530–536 MHz) Ch. 27 (548–554 MHz) US TV Channel Ch. 22 (518–524 MHz) Ch. 25 (536–542 MHz) Ch. 28 (554–560 MHz) Ch. 23 (524–530 MHz) Ch. 26 (542–548 MHz) Channel Bank 1 Bank 2...
- Page 21 Frequency Range A 516–558 MHz (continued) Ch. 21 (512–518 MHz) Ch. 24 (530–536 MHz) Ch. 27 (548–554 MHz) US TV Channel Ch. 22 (518–524 MHz) Ch. 25 (536–542 MHz) Ch. 28 (554–560 MHz) Ch. 23 (524–530 MHz) Ch. 26 (542–548 MHz) Channel Bank 11 Bank 12...
- Page 22 Frequency Range G 566–608 MHz Ch. 30 (566–572 MHz) Ch. 33 (584–590 MHz) Ch. 36 (602–608 MHz) US TV Channel Ch. 31 (572–578 MHz) Ch. 34 (590–596 MHz) Ch. 32 (578–584 MHz) Ch. 35 (596–602 MHz) Channel Bank 1 Bank 2 Bank 3 Bank 4 Bank 5...
- Page 23 Frequency Range G 566–608 MHz (continued) Ch. 30 (566–572 MHz) Ch. 33 (584–590 MHz) Ch. 36 (602–608 MHz) US TV Channel Ch. 31 (572–578 MHz) Ch. 34 (590–596 MHz) Ch. 32 (578–584 MHz) Ch. 35 (596–602 MHz) Channel Bank 11 Bank 12 Bank 13 Bank 14...
- Page 24 Frequency Range B 626–668 MHz Ch. 40 (626–632 MHz) Ch. 43 (644–650 MHz) Ch. 46 (662–668 MHz) US TV Channel Ch. 41 (632–638 MHz) Ch. 44 (650–656 MHz) Ch. 42 (638–644 MHz) Ch. 45 (656–662 MHz) Channel Bank 1 Bank 2 Bank 3 Bank 4 Bank 5...
- Page 25 Frequency Range B 626–668 MHz (continued) Ch. 40 (626–632 MHz) Ch. 43 (644–650 MHz) Ch. 46 (662–668 MHz) US TV Channel Ch. 41 (632–638 MHz) Ch. 44 (650–656 MHz) Ch. 42 (638–644 MHz) Ch. 45 (656–662 MHz) Channel Bank 11 Bank 12 Bank 13 Bank 14...
- Page 26 Notes:...
- Page 28 Corporation One Enterprise Drive, Old Lyme, CT 06371 Tel: (860) 434-9190 • Fax: (860) 434-1759 Latin America: Tel: 52-55-5639-0956 • Fax: 52-55-5639-9482 Canada: Tel: (514) 426-3013 Fax: (514) 426-3953 Revised: 04/2012 www.sennheiser.ca...
