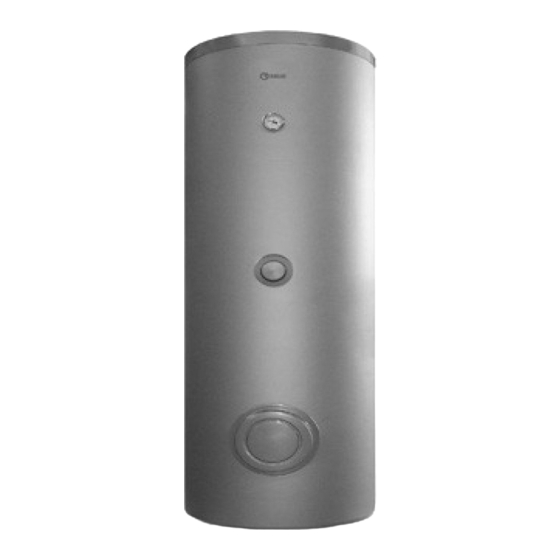

- Page 1 7200 V Plus EN INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
- Page 2 MODEL CODE dependable and safe service and to provide comfort in the RIELLO 7200.200 V PLUS 4030203 home for many years to come. Arrange for your storage RIELLO 7200.300 V PLUS...
-
Page 3: Table Of Contents
Contents CONTENTS GENERAL General Safety Information ..... . 4 Precautions ........4 Description of the appliance . -
Page 4: General
GENERAL GENERAL GENERAL SAFETY INFORMATION 2 PRECAUTIONS The operation of any appliance that uses electrical power demands that a number of fundamental safety precautions be Check that the product is complete, undamaged and as respected. In particular: ordered as soon as you receive it. Report any discrepancies or damage to the dealer who sold it. -
Page 5: Description Of The Appliance
4 IDENTIFICATION 7200 V Plus storage cylinders are identified by: Data plate This lists the technical specifications and performance of the product. RIELLO S.p.A. Via Ing.Pilade Riello 7 37045 Legnago (VR) - ITALY 066964ED STORAGE CYLINDER PUFFERERHITZER Model Serial number... -
Page 6: Technical Specifications
GENERAL GENERAL 6 TECHNICAL SPECIFICATIONS 7200 V Plus DESCRIPTION 1000 Type of storage cylinder Vitrified Storage cylinder layout Vertical Heat exchanger layout Vertical Storage cylinder capacity Diameter of storage cylinder with insulation 1000 Diameter of storage cylinder without insulation Height with insulation 1330 1840 1630... -
Page 7: Water Circuit
GENERAL GENERAL 7 WATER CIRCUIT TYPICAL INSTALLATION SCHEMATIC DHW production system with one storage cylinder Inlet 800 V PLUS Outlet 1000 V PLUS DHW production system with two storage cylinders Inlet Outlet 200 V PLUS 300 V PLUS Disconnect valves 7200 V Plus storage cylinders are delivered without Pressure reducer a boiler heating pump. -
Page 8: Location Of Sensors
GENERAL GENERAL 8 LOCATION OF SENSORS 7200 V Plus storage cylinders are equipped with dedicated sockets for the storage cylinder TEMPERATURE GAUGE or TEMPERATURE SENSOR. The installer is responsible for making all necessary connections to the water heating system. Installers must use their expertise to ensure proper installation and functioning in compliance with all applicable legislation. -
Page 9: Overall Dimensions And Water Fittings
GENERAL GENERAL 9 OVERALL DIMENSIONS AND WATER FITTINGS 7200 V Plus 200 ÷ 550 (SB) (*) Cable routing 7200 V Plus storage cylinders can also be connected to previously installed water heating systems provided they are of adequate output power, but care must be taken to ensure correct water flow directions. Water fittings have the following specifications: 7200 V Plus DESCRIPTION... - Page 10 GENERAL GENERAL 7200 V Plus 800 - 1000 (SB) 7200 V Plus storage cylinders can also be connected to previously installed water heating systems provided they are of adequate output power, but care must be taken to ensure correct water flow directions. Water fittings have the following specifications: 7200 V Plus DESCRIPTION...
-
Page 11: Installer
INSTALLER INSTALLER 10 UNPACKING THE PRODUCT MODELS 7200 V Plus 200 to 550 7200 V Plus storage cylinders are delivered in a single package, protected by a cardboard box on a wooden pallet. The following items are delivered in a plastic bag inside the packaging: −... - Page 12 INSTALLER INSTALLER If suitable equipment is not on hand to lift the storage cylinder off the pallet using the eyebolt, proceed as follows. − Place a platform of about half the height of the pallet near the storage cylinder. Make sure the platform is able to support the weight of the storage cylinder.
-
Page 13: Place Of Installation
INSTALLER INSTALLER 12 PLACE OF INSTALLATION Fit the feet provided into the holes in the bottom of the storage cylinder and adjust as necessary to compensate for any unevenness in the floor. 7200 V Plus storage cylinders can be installed in any room where there is no specific requirement for an electrical protection rating higher than IP X0D. -
Page 14: Technical Assistance Service
TECHNICAL ASSISTANCE SERVICE TECHNICAL ASSISTANCE SERVICE 14 PUTTING INTO SERVICE 15 TEMPORARY SHUTDOWN It is essential to perform the following checks before starting up If you are going away for a short period of time like a weekend or testing the functioning of the storage cylinder. In particular, or a short holiday, etc., and outdoor temperatures are going to check that: remain above ZERO, proceed as follows. -
Page 15: Maintenance
TECHNICAL ASSISTANCE SERVICE TECHNICAL ASSISTANCE SERVICE 17 MAINTENANCE Scheduled maintenance is essential for the safety, efficiency and long working life of your storage cylinder. Proper maintenance also reduces energy consumption and ensures reliability over time. Have your storage cylinder serviced either by the manufacturer’s Technical Assistance Service or by a qualified heating engineer at least once a year. - Page 16 TECHNICAL ASSISTANCE SERVICE TECHNICAL ASSISTANCE SERVICE MODELS 7200 V Plus 800 - 1000 Removing and checking the second magnesium anode − Remove the flange cover (5) and use a suitable wrench to Removing and checking the first magnesium anode unscrew the anode holder (6). If the magnesium anode is fitted in the top of the storage −...
-
Page 17: Recycling And Disposal
TECHNICAL ASSISTANCE SERVICE TECHNICAL ASSISTANCE SERVICE 19 RECYCLING AND DISPOSAL At the end of its useful working life, do not abandon the storage cylinder in the environment, but dispose of it through the proper channels in accordance with applicable legislation. 20 TROUBLESHOOTING FAULT CAUSE... -
Page 18: End User
END USER END USER END USER INSTRUCTIONS Refer to the GENERAL SAFETY INFORMATION and PRECAUTIONS section for safety-related information. 21 START-UP 22 TEMPORARY SHUTDOWN The storage cylinder must be put into service for the first time by To reduce impact on the environment and save energy, before personnel from the manufacturer’s Technical Assistance Service. - Page 19 END USER END USER...
- Page 20 RIELLO S.p.A. 37045 Legnago (VR) - Italy Tel. 0442630111 - Fax 044222378 - www.riello.it The manufacturer strives to continuously improve all products. Appearance, dimensions, technical specifications, standard equipment and accessories are therefore liable to modification without notice.
