Summary of Contents for Fuji Xerox DocuPrint 3105

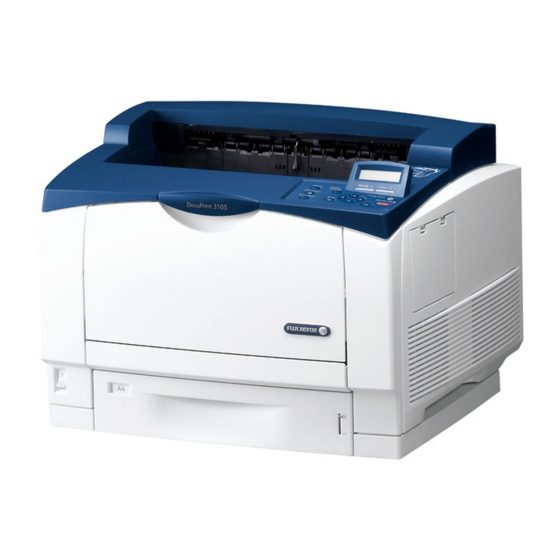

- Page 1 DocuPrint 3105 ® ® HP-GL , HP-GL/2 Emulation Setting Guide...
- Page 2 3. We welcome any comments on ambiguities, errors, omissions, or missing pages. 4. Never attempt any procedure on the machine that is not specifically described in this manual. Unauthorized operation can cause faults or accidents. Fuji Xerox is not liable for any problems resulting from unauthorized operation of the equipment.
-
Page 3: Preface
Preface Thank you for purchasing the DocuPrint 3105. This guide provides information about the HP-GL and HP-GL/2 emulations of the printer. To get the most out of this printer and to use it effectively, please read this guide as necessary. -
Page 4: Table Of Contents
Contents Preface......................3 Types of Manuals....................5 Using This Guide ....................6 Using Emulation ..................7 About Emulation ...................... 7 Emulation Mode .......................7 Host Interface and Emulation ..................7 Switching Between Print Languages ...............8 Mode Menu Screen ....................8 Default Settings ....................... 9 Paper Margin ......................9 About Fonts ...................... -
Page 5: Types Of Manuals
Manual (PDF Document)]. CD-ROM Documentation Describes how to set up the printer's operating environment, and how (HTML) to install a print driver and various Fuji Xerox software. • This guide is on the Driver CD Kit CD-ROM. Emulation Setting Guide ®... -
Page 6: Using This Guide
Using This Guide Organization This guide is organized into the following chapters. The summary of each chapter is as follows: Using Emulation Describes the fonts and interfaces supported and the printer emulated in the HP-GL and HP-GL/2 emulation modes. Setting the HP-GL Mode Describes how to configure the HP-GL and HP-GL/2 emulation modes. -
Page 7: Using Emulation
Using Emulation About Emulation This section explains the HP-GL, HP-GL/2 emulations of the print language available on this printer. Print data follows certain rules (grammar). These rules (grammars) are referred to as "print languages". This printer supports a page description language used to create images on a page basis, and an emulation feature used to obtain the print result similar to that obtained by another printer. -
Page 8: Switching Between Print Languages
Switching Between Print Languages This printer supports multi-emulation, allowing you to switch between print languages. There are three methods of switching between print languages. Switching by Commands Commands for switching between supported print languages are provided. This printer switches to the supported print language when it receives the respective command. Automatic Switching This printer analyzes the data received by the host interface to identify the print language to be used. -
Page 9: Default Settings
Default Settings The following describes printing that can be performed under the initial default settings of the HP-GL and HP-GL/2 emulation modes. Under the default setting the printer is configured to reduce or enlarge the document data to match the paper size (Auto Layout). File Size: Auto, Zoom Mode: Output Size, Zoom: On Print Area File size... -
Page 10: About Fonts
About Fonts This section explains about the fonts that can be used in the HP-GL and HP-GL/2 emulation modes. Usable Fonts The following fonts can be used in the HP-GL and HP-GL/2 emulations. • Stroke font Font Cache To ensure high-speed printing, outline fonts are cached if they are not too large. Outline fonts are converted to bit map data temporarily and then printed. -
Page 11: Paper Eject Function
Paper Eject Function This section explains the paper eject function. There are two types of paper eject functions as shown here. • The remaining data is forcibly ejected. • All the jobs in the printer are eliminated. Forcibly Ejecting the Remaining Data In the HP-GL and HP-GL/2 emulation modes, the printer does not eject a job unless it receives a full page worth of data. -
Page 12: To Eject All Jobs In The Printer
To Eject All Jobs in the Printer Print all the jobs that the printer has received. Through this procedure, you can interrupt the receiving of data and empty the buffer. The procedure is explained below. Press the <Online> button when the display appears as shown to the right. -
Page 13: Setting The Hp-Gl Mode
Setting the HP-GL Mode Control Panel Menus There are two types of control panel menus: the mode menus and common menus. The mode menus are the menus that relate to the emulation modes. The common menus are the menus for all the other features of the printer. Common Menus Mode Menus ESCP... -
Page 14: Hp-Gl Mode Menu
Allocate Memory To specify the amount of HP-GL/2 Auto Layout memory, select [Allocate Memory] from the [Admin Menu]. • HPGL Auto Layout You can specify the amount of memory allocated for storing print data for Auto Layout. Refer to • For informaition about the [AllocateMemory],refer to the User Guide. HP-GL Mode Menu The HP-GL mode menu allows you to configure the HP-GL and HP-GL/2 emulation modes. -
Page 15: Hp-Gl Mode Menu Settings
HP-GL Mode Menu Settings This section explains the items that can be set using HP-GL mode menu and the setting procedures. List of HP-GL Setting Items This section explains the items that can be set using the HP-GL mode menu. Features Menu Paper Supply Sets the paper tray that supplies paper. - Page 16 File Size Sets the Client-Created file size. Candidate values are shown below. [Auto] (default) [Output] This is the same size as that set in [Output Size]. [A0] [A1] [A2] [A3] [A4] [A5] [B0] [B1] [B2] [B3] [B4] [B5] The [Zoom Mode], [Area Determine], and [Paper Margin] settings of [Print Control] are enabled.
- Page 17 Quantity Enter Quantity Sets the number of copies to be printed. You can set the number in a range from 1 to 250. The default value is 1. Note • The number of copies specified by the client is used when printing. After the printing, the setting on the control panel will be overwritten to that value.
- Page 18 If entering the value in inches, enter it within -9.8 to 9.8" in increments of 0.1". The default is [0.0"]. Left & Right Adjusts the position of the printable area in horizontal direction. The position can be adjusted within the range of -250 to 250 mm in increments of 1 mm. The default is [0mm]. If entering the value in inches, enter it within -9.8 to 9.8"...
- Page 19 Zoom Determines whether to enlarge/reduce (scaling) the file size so that the file size fits the output size. [On] (default) Turns on scaling. [Off] Turns off scaling. Print data is printed at actual size (100%). With this setting, the print data may not fit on the paper.
- Page 20 Paper Margin Sets the paper margin for auto scaling. The position can be specified within the range 0 to 99 mm in 1 mm increments (0.0 to 3.9 inch in 0.1 inch increments). Default is [0mm]. If entering the value in inches, enter it within 0 to 3.9" in increments of 0.1". The default is [0.0"].
- Page 21 Line End Sets the line end shape. Candidate values are shown below. [Cut] (default) : Coordinate specification position [Round] : Coordinate specification position [Rectangle] : Coordinate specification position Line Intersect Sets the intersection shape. Candidate values are shown below. [None] (default): [Cut]: [Round]: [Join]:...
- Page 22 Stored Prog. Menu Settings can be registered to NV memory (No. 01 to 20) and can be called up as required. At startup [At startup] refers to the reading of non-volatile memories (No. 01 to 20) pre-registered by [Store] when the power is switched on or the system is reset. Sets the No.
-
Page 23: Setting The Hp-Gl Mode Menu
Setting the HP-GL Mode Menu The following example explains how to use the mode menu to select [A3] as the HP-GL mode file size. Ready to print Toner Left ■ Press the <Settings> button. Settings Language Emulation Press the < > or <OK> button. Language Emulation ESCP Press the <... -
Page 24: About The Hp-Gl Mode List
About the HP-GL Mode List This section explains the HP-GL mode list. Refer to • For information about reports and lists, refer to the ‘User Guide’. HP-GL/2 Settings List You can confirm the HP-GL mode setting values. To print this report/list, select [Print Reports] > [Language Emulation] > [HP-GL/2 Settings] on the control panel. -
Page 25: Hp-Gl Mode Reference Materials
HP-GL Mode Reference Materials Hard Clip Area In the HP-GL mode, the plottable area is determined in accordance with the printable area. This area is called the hard clip area, which defines the maximum area for pen movement. This means that imaging is impossible outside of the hard clip area. This printer lets you select from among the following hard clip areas. -
Page 26: Printable Area
Printable Area Printable areas in the HP-GL mode are as follows: Note • Some output sizes may not be used depending on the printer type. Output Sizes and Printable Area Paper length Coordinate value (1/7200 inch) (1/7200 inch) Output Margin Printable area Upper right corner Margin... - Page 27 Paper length Coordinate value (1/7200 inch) (1/7200 inch) Output Margin Printable area Upper right corner Margin Size direction direction Bottom Bottom Long Short Width Height left X left Y edge edge right X right Y 84168 119052 1260 1260 81648 116532 82908 117792...
-
Page 28: Auto Layout
Auto Layout This section explains auto layout. What Is Auto Layout? Auto layout is the function that judges the file size according to the HP-GL data input from the host system, enlarges/reduces the document so that it fits the paper size, and lays out the document at the center of the paper. - Page 29 Area Determine Methods for obtaining the effective coordinate area based on the HP-GL data are as follows: [Auto] An effective coordinate area determining method is automatically selected among PS, IW, IP, and Adapted. PS, IW, IP, Adapted are given priority in this order. [IW] The area specified by the last IW command in data is determined as the effective coordinate area.
-
Page 30: Determining The File Size
Zoom Mode This setting selects the mode for determining the file size in accordance with the obtained effective coordinate area. The selected mode also determines, in accordance with the effective coordinate area, whether orientation is portrait or landscape. When [Coordinate Area] is selected The file size is the area obtained by the area judgment mode minus the area specified for [Paper Margin]. -
Page 31: Determining The Output Size
Example: Assume that the following data is input when Zoom Mode = Output Size, Origin Position = Auto, Paper Margin = 10 mm, Area Determine = IP. All pen width are set to 0.1 mm. The following data does not contain a character size specification command and the physical size of the area specified by IP/IW is A3. -
Page 32: Determining The Scaling Factor
When [Output Size] Is Set to [Auto] Candidate paper sizes for the paper actually loaded in the tray are A3, B4, A4, B5, and A5. If A3, B4, A4, B5, or A5 paper is not loaded in the tray, an error message appears on the control panel display prompting you to load one of the candidate paper sizes. - Page 33 When [File Size] Is Set to [Auto] and [Zoom Mode] Is Set to [Output Size] The [Hard Clip] setting becomes ineffective. The output size hard clip area is always used. • When the file size is the same as the paper size, image is actual size (100%). •...
-
Page 34: Limits During Auto Layout Mapping
Limits During Auto Layout Mapping When the Hard Disk (Optional) Is Installed in the Printer Print data is stored in the hard disk when Auto Layout is executed. When the Hard Disk (Optional) Is Not Installed in the Printer Print data is stored in the Auto Layout memory when Auto Layout is executed. The initial capacity of the Auto Layout memory is 64 KB. -
Page 35: Hp-Gl/2 Mode Restrictions
File Size: Auto, Zoom Mode: Coordinate Area, Zoom: On Printable area Determined according to input data Output size Effective coordinate area File Size: Auto, Zoom Mode: Coordinate Area, Zoom: Off Printable area Determined according to input data Output size Effective coordinate area HP-GL/2 Mode Restrictions On the HP DJ750C Plus, the emulation target of HP-GL/2 mode, if the line width is less than 0.35 mm, the intersection shape of lines are specified as rounded and not angled. -
Page 36: Index
Index Auto Layout ............. 28 eject function ........... 11 emulation mode ..........7 font cache ............10 hard clip area........... 25 host interface ............. 7 HP-GL Logical Printers/Stored Prog. List ..24 HP-GL/2 Settings List ........24 limits during auto layout mapping ....34 mode menu............ -
Page 37: Mode Menu (Hp-Gl, Hp-Gl/2)
Mode Menu (HP-GL, HP-GL/2) Set(s) Mode Menu (HP-GL, HP-GL/2) - Page 38 DocuPrint 3105 HP-GL, HP-GL/2 Emulation Settings Guide Fuji Xerox Co., Ltd. ME4970E2-1 (Edition 1) June 2011 Copyright© 2011 by Fuji Xerox Co., Ltd.
