Endress+Hauser Waterpilot FMX167 Technical Information

Technical Information
Waterpilot FMX167
Hydrostatic level measurement
Reliable and robust level probe with ceramic measuring cell
Compact device for level measurement in fresh water, wastewater
and saltwater
TI351P/00/EN/06.09
71096099
Application
The Waterpilot FMX167 is a pressure sensor for
hydrostatic level measurement.

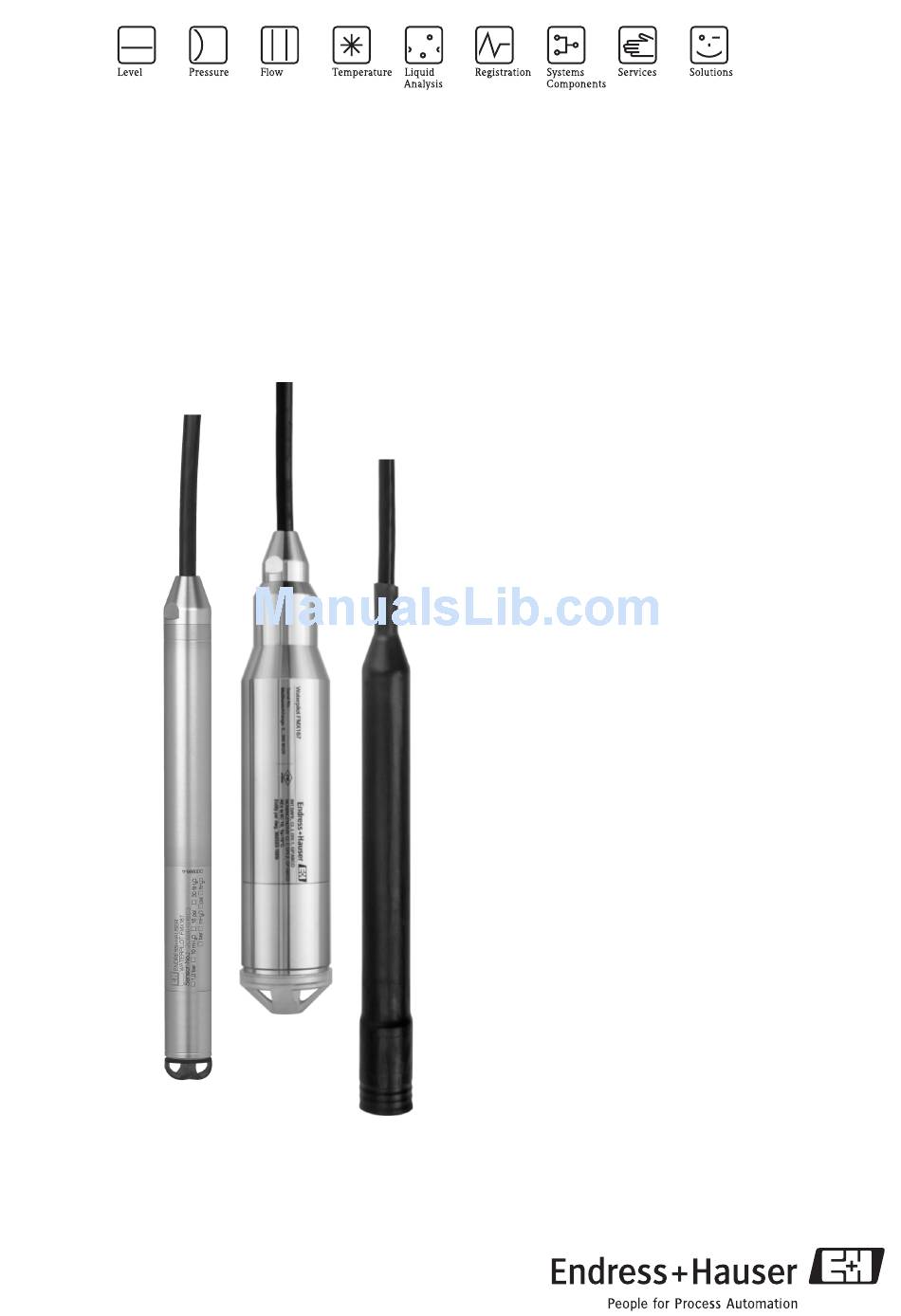

Three versions of FMX167 are available at
Endress+Hauser:

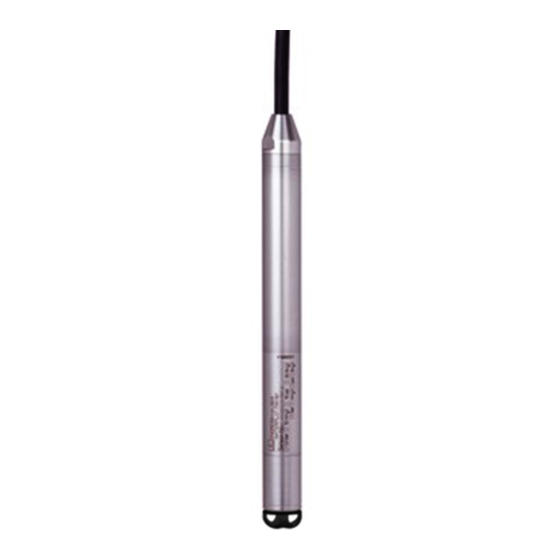

• FMX167 with a stainless steel housing, outer diameter
of 22 mm (0.87 inch): Standard version suitable for
drinking water applications and for use in bore holes
and wells with small diameters
• FMX167 with a stainless steel housing, outer diameter
of 42 mm (1.66 inch): Heavy duty version, easy clean
flush-mounted process diaphragm. Ideally suited to
wastewater and sewage treatment plants
• FMX167 with a coated housing, outer diameter of
29 mm (1.15 inch): Corrosion resistant version
generally for use in saltwater, particularly for ship
ballast water tanks.
Your benefits
• High mechanical resistance to overload and aggressive
media
• High-precision, robust ceramic measuring cell with
long-term stability
• Climate proofed sensor thanks to completely potted
electronics and 2-filter pressure compensation system
• 4 to 20 mA output signal with integrated overvoltage
protection
• Simultaneous measurement of level and temperature
with optionally integrated Pt100 temperature sensor
• Drinking water approvals: KTW, NSF, ACS
• Approvals: ATEX, FM and CSA
• Marine certificate: GL, ABS
• Extensive range of accessories provides complete
measuring point solutions
