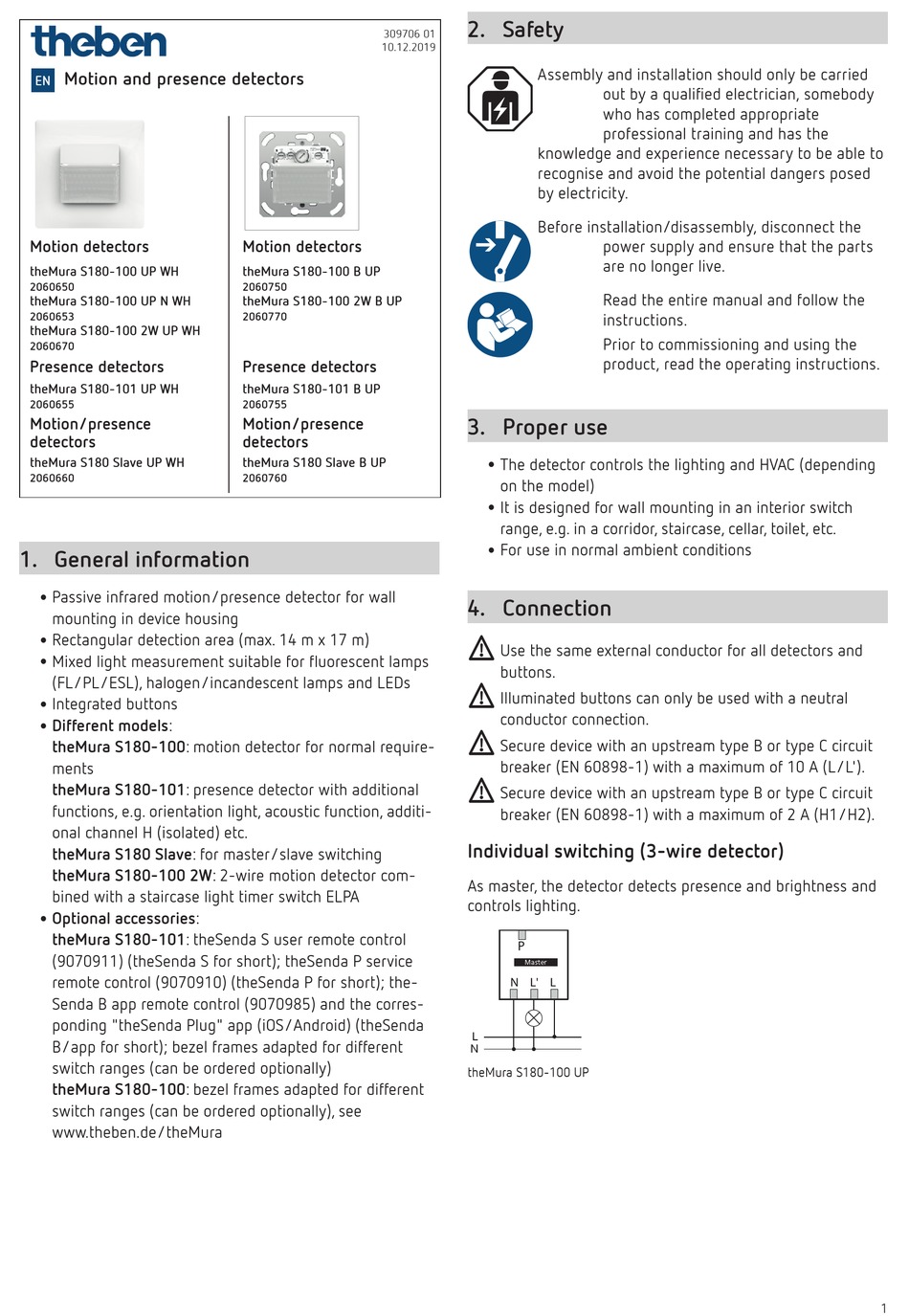

Motion and presence detectors
EN
Motion detectors
theMura S180-100 UP WH
2060650
theMura S180-100 UP N WH
2060653
theMura S180-100 2W UP WH
2060670
Presence detectors
theMura S180-101 UP WH
2060655
Motion/presence
detectors
theMura S180 Slave UP WH
2060660
1. General information
•
Passive infrared motion/presence detector for wall
mounting in device housing
•
Rectangular detection area (max. 14 m x 17 m)
•
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Integrated buttons
•
Different models:
theMura S180-100: motion detector for normal require-
ments
theMura S180-101: presence detector with additional
functions, e.g. orientation light, acoustic function, additi-
onal channel H (isolated) etc.
theMura S180 Slave: for master/slave switching
theMura S180-100 2W: 2-wire motion detector com-
bined with a staircase light timer switch ELPA
•
Optional accessories:
theMura S180-101: theSenda S user remote control
(9070911) (theSenda S for short); theSenda P service
remote control (9070910) (theSenda P for short); the-
Senda B app remote control (9070985) and the corres-
ponding "theSenda Plug" app (iOS/Android) (theSenda
B/app for short); bezel frames adapted for different
switch ranges (can be ordered optionally)
theMura S180-100: bezel frames adapted for different
switch ranges (can be ordered optionally), see
www.theben.de/theMura
309706 01
10.12.2019
Motion detectors
theMura S180-100 B UP
2060750
theMura S180-100 2W B UP
2060770
Presence detectors
theMura S180-101 B UP
2060755
Motion/presence
detectors
theMura S180 Slave B UP
2060760
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody
who has completed appropriate
professional training and has the
knowledge and experience necessary to be able to
recognise and avoid the potential dangers posed
by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts
are no longer live.
Read the entire manual and follow the
instructions.
Prior to commissioning and using the
product, read the operating instructions.
3. Proper use
•
The detector controls the lighting and HVAC (depending
on the model)
•
It is designed for wall mounting in an interior switch
range, e.g. in a corridor, staircase, cellar, toilet, etc.
•
For use in normal ambient conditions
4. Connection
!
Use the same external conductor for all detectors and
buttons.
!
Illuminated buttons can only be used with a neutral
conductor connection.
!
Secure device with an upstream type B or type C circuit
breaker (EN 60898-1) with a maximum of 10 A (L/L').
!
Secure device with an upstream type B or type C circuit
breaker (EN 60898-1) with a maximum of 2 A (H1/H2).
Individual switching (3-wire detector)
As master, the detector detects presence and brightness and
controls lighting.
P
Master
N L' L
L
N
theMura S180-100 UP
1
Advertisement
Table of Contents
Related Manuals for Theben theMura S180-100 UP WH
Summary of Contents for Theben theMura S180-100 UP WH
- Page 1 Before installation/disassembly, disconnect the Motion detectors Motion detectors power supply and ensure that the parts are no longer live. theMura S180-100 UP WH theMura S180-100 B UP 2060650 2060750 Read the entire manual and follow the theMura S180-100 UP N WH...
-
Page 2: Detection Area
1 (see illustration) L To switch the load, the 2-wire detector always requires a Disconnect power source. † staircase light timer switch, e.g. a Theben-ELPA 3, ELPA 6, Connect detector according to the wiring diagram (see † section 4) ELPA 6 plus, ELPA 8 or ELPA 041. - Page 3 Teach-in at 2-wire motion detector (theMura S180-100 Set the time delay at the staircase light timer switch to † minimum. Set the potentiometer to teach-in † ▻ The detector saves the current surrounding bright- ness after 75 s (red LED fl ickers) as the new switch-on brightness.
- Page 4 Recommended guide values L With theMura S180-101, the surrounding brightness is checked after 30 min. If there is suffi cient brightness, the Transit zones (not work areas) approx. 5 min light is switched off despite the presence of persons. School rooms, basements approx.
- Page 5 9. Parameters and control commands via Parameter theSenda B/ Can be Can be app check changed by changed by theSenda B/ theSenda P Room correction factor 1. Parameters Brightness measure- ment value A Brightness setpoint value A Detection sensitivity Time delay A Short presence A Channel function H Time delay H...
-
Page 6: Detection Sensitivity
Time delay A After selecting the parameter brightness measurement † theSenda B/app theSenda P value A either press input and enter brightness measure- ment value A manually Short presence A or follow the instructions in the app and confi rm with OK. †... - Page 7 Time delay H Orientation light time delay theSenda B/app theSenda P Switch-on delay H The integrated orientation light conveys a sense of security and good orientation in dark rooms and corridors. Time delay When the channel A time delay has expired, the orientation light comes on for the set time delay.
-
Page 8: Control Commands
L The extended function duration does not work if the time 2. Control commands delay A is set to pulse or the staircase light function is activated. Teach-in channel A Activating a function Press button for 3 s and release ▻ the LED fl ashes 2 x; †... -
Page 9: Factory Settings
Factory settings theSenda P theSenda S Test detection area (walking test) Parameter theMura S180-101 UP The walking test is used to test the detection area and to Brightness setpoint value A 500 lux restrict it if necessary. Room correction factor A Select ON in the app †... -
Page 10: Troubleshooting
Short circuit or several phases in parallel swit- respond ching! Disconnect detector from the power supply for 5 min (thermal fuse) theMura S180-100 UP WH (2060650) + theMura S180-101 UP WH (2060655) Error flashing Error in self-test; (4 x per second) device not functional! 11. - Page 11 13. Contact Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Phone +49 7474 692-0 Fax +49 7474 692-150 Hotline Phone +49 7474 692-369 hotline@theben.de Addresses, telephone numbers, etc. www.theben.de...
