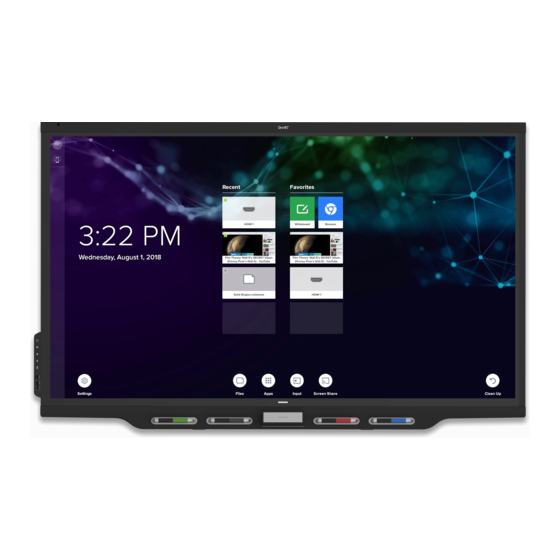

Smart Technologies SMART Board SBID-7075P User Manual
Smart board 7000 and 7000 pro series
Hide thumbs
Also See for SMART Board SBID-7075P:
- Installation and maintenance manual (83 pages) ,
- Installation and maintenance manual (89 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Smart Technologies SMART Board SBID-7075P
Summary of Contents for Smart Technologies SMART Board SBID-7075P

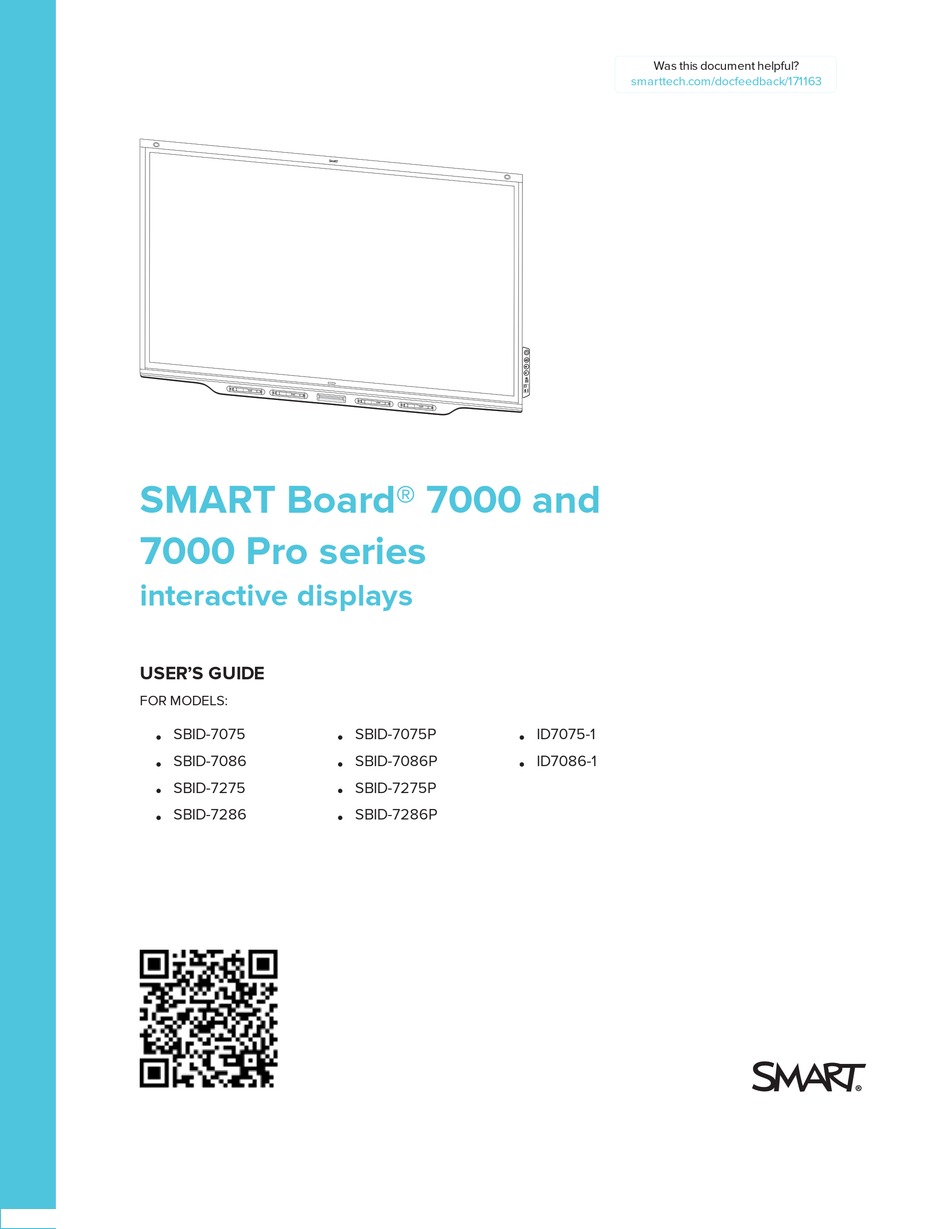

- Page 1 Was this document helpful? smarttech.com/docfeedback/171163 SMART Board® 7000 and 7000 Pro series interactive displays USER’S GUIDE FOR MODELS: SBID-7075 SBID-7075P ID7075-1 SBID-7086 SBID-7086P ID7086-1 SBID-7275 SBID-7275P SBID-7286 SBID-7286P...
- Page 2 Licenses The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The Bluetooth word mark is owned by the Bluetooth SIG, Inc. and any use of such marks by SMART Technologies ULC is under license. Trademark notice SMART Board, SMART Notebook, SMART Meeting Pro, SMART Ink, SMART amp, SMART lab, SMART kapp, SMART kapp iQ, HyPr Touch, Pen ID, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S.
-
Page 3: Important Information
Important information NOTE Refer to the installation and maintenance guide for important information about installing and maintaining the display (see More information on page 7). WARNING Do not open or disassemble the display. You risk electrical shock from the high voltage inside the casing. -
Page 4: Federal Communication Commission Interference Statement
IMPORTANT INFORMATION Federal Communication Commission interference statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Eu Declaration Of Conformity
IMPORTANT INFORMATION EU declaration of conformity Hereby, SMART Technologies ULC declares that the radio equipment type Interactive Display SBID-7075, SBID-7075P, SBID-7086, SBID-7086P, ID7075-1, ID7086-1 and the interactive pen SBID-7000-PEN, SBID-7000P-PEN are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: smarttech.com/compliance... -
Page 7: Table Of Contents
Contents Important information Federal Communication Commission interference statement Innovation, Science and Economic Development Canada statement EU declaration of conformity Compliance to Malaysia specification United Arab Emirates – TRA registration details Chapter 1: Welcome About this guide Identifying your specific model Features Components Accessories... -
Page 9: Chapter 1: Welcome
Chapter 1 Welcome About this guide Identifying your specific model Identifying your SMART Board 7000 or 7000 Pro series interactive display model Identifying your iQ appliance model Features Components Screen Presence detection sensors Home button Pens and eraser Convenience panel iQ appliance Internal speakers Accessories SBA-100 projection audio system... -
Page 10: Identifying Your Specific Model
CHAPTER 1 WELCOME Identifying your specific model SMART offers several different models of the SMART Board 7000 and 7000 Pro series interactive display and iQ appliance. Identifying your SMART Board 7000 or 7000 Pro series interactive display model The following models of SMART Board 7000 and 7000 Pro series interactive display are available: Model Frame style Screen size (approximate) -
Page 11: Components
CHAPTER 1 WELCOME The display includes the following features: Feature Description More information iQ experience The display’s iQ appliance provides one-touch access to Page 16 collaborative tools, including a whiteboard, wireless screen sharing and a web browser. Touch support You can do everything on the display that you can do at Page 12 your computer—open and close applications, meet with others, create new documents or edit existing ones, visit... -
Page 12: Screen
CHAPTER 1 WELCOME Name More information Pictured Screen Page 4 Presence detection sensor (×2) Page 5 Home button Page 5 Eraser Page 5 Pen (×4) Page 5 Convenience panel Page 6 iQ appliance Page 6 Connector panel Page 20 Not pictured AC power inlet, outlet and switch [N/A] RS-232 connectors [N/A] Speakers... -
Page 13: Presence Detection Sensors
CHAPTER 1 WELCOME Presence detection sensors The display has two presence detection sensors on its top frame that can detect people up to 16' (5 m) away when the display is in Standby mode. When the sensors detect people in the room, the display is ready to turn on. -
Page 14: Accessories
CHAPTER 1 WELCOME For more information about the pens and eraser, see Using the pens and eraser on page 13. Convenience panel The convenience panel contains buttons for turning the display on and off and controlling the volume. It also includes connectors for USB peripherals and a computer or other input source. For more information about the convenience panel, see Using the convenience panel on page 10. -
Page 15: More Information
CHAPTER 1 WELCOME SMART Audio 400 classroom amplification system Available for education models, the SMART Audio 400 classroom amplification system provides high-quality audio amplification. The system comes with a teacher microphone and optional student microphone. Multiple speaker options are available, including wall- and ceiling-mounted speakers. The amplifier receives audio signals from the microphones and translates them into crystal-clear sound through the speakers. - Page 16 CHAPTER 1 WELCOME Document Link SBID-7086P specifications smarttech.com/kb/171212 SBID-7275P specifications smarttech.com/kb/171213 SBID-7286P specifications smarttech.com/kb/171214 Comparison smarttech.com/kb/171161 These documents are available in the Support section of the SMART website (smarttech.com/support). Scan the QR code on the cover of this guide to view the SMART Board 7000 and 7000 Pro series interactive displays pages in the Support section.
-
Page 17: Chapter 2: Using The Display
Chapter 2 Using the display Waking up the display and putting it back to sleep Using the convenience panel Using the Power button to identify the display’s status Adjusting audio Freezing the screen Using touch Using the pens and eraser Using the pens Using the eraser Writing, drawing and erasing... -
Page 18: Waking Up The Display And Putting It Back To Sleep
CHAPTER 2 USING THE DISPLAY Waking up the display and putting it back to sleep The display’s presence detection sensors can detect people up to 16' (5 m) away when the display is in Standby mode (in other words, sleeping). When the sensors detect people, the display enters Ready mode and is ready to wake. -
Page 19: Using The Power Button To Identify The Display's Status
CHAPTER 2 USING THE DISPLAY Name Procedure Power Press to enter or exit Standby mode. Press and hold for four seconds to turn off the display. Press and hold for 10 seconds to reset the display. Volume increase Press to increase the volume. Volume Press to decrease the volume. -
Page 20: Using Touch
CHAPTER 2 USING THE DISPLAY Using touch You can do everything on the display that you can do at your computer—open and close applications, meet with others, create new documents or edit existing ones, visit websites, play and manipulate videos, and so on—by touching the display’s surface. You can use an array of gestures within applications, including panning, scaling, rotating and zooming in and out. -
Page 21: Using The Pens And Eraser
CHAPTER 2 USING THE DISPLAY Pinch to zoom in / scale (enlarge) Pinch to zoom out / scale (reduce) Rotate Flick Using the pens and eraser Using the pens The display comes with black, red, blue and green pens. Each pen has an attached eraser and an indicator light. - Page 22 CHAPTER 2 USING THE DISPLAY When you first turn on the display or pick up a pen from the magnetic holder, the pen’s light turns on to indicate the pen’s status: Light Pen status Action Solid green The pen is charging slowly Pick up the pen and use it to write on the and can be used for at least display.
-
Page 23: Using The Eraser
CHAPTER 2 USING THE DISPLAY To fully charge the pens, keep them in the holders for at least four hours before users start using the display. Using the eraser In addition to the pens, the display includes an eraser, which you can use when you want to erase a large area on the screen. -
Page 24: Using The Iq Experience
CHAPTER 2 USING THE DISPLAY To write or draw in digital ink 1. Pick up one of the display’s pens. 2. Use the pen to write or draw in digital ink. NOTE The Pen ID feature enables you to use the pens at the same time and customize their colors and other settings independently. -
Page 25: Using Whiteboard
CHAPTER 2 USING THE DISPLAY NOTE SMART Notebook Player is available on education models only. To show the launcher Tap the Home button at the bottom of the screen. To hide the launcher Select an app, tap the Home button or tap anywhere on the screen. Using Whiteboard Using Whiteboard, you can write and erase notes on the display just as you do on a traditional dry erase board. -
Page 26: Connecting And Using Computers
CHAPTER 2 USING THE DISPLAY To learn how to connect computers to the display and view their input, see Using Input. Using Screen Share You can share content from computers and mobile devices on the display wirelessly using Screen Share. Screen Share supports the following devices: Chromebook™... -
Page 27: Setting The Resolutions And Refresh Rates Of Computers You Want To Connect To The Display
CHAPTER 2 USING THE DISPLAY The SBID-7075P, SBID-7086P, SBID-7275P and SBID-7286P models come with one room license and ten personal licenses of SMART Meeting Pro software. You can download SMART Meeting Pro software from smarttech.com/downloads and install the room license on a room computer and the personal licenses on up to then users’ laptops following the instructions in Installing and maintaining SMART Meeting Pro You can purchase additional licenses of SMART software to install on other computers. -
Page 28: Connecting Computers To The Display
CHAPTER 2 USING THE DISPLAY Connecting computers to the display You can connect computers with SMART software to the display as shown below. NOTES To interact with content, connect a USB cable to the appropriate USB Type-B receptacle on the connector panel or convenience panel (as shown in the above diagrams). Your organization’s installers might have connected cables to the connector panel or the convenience panel and run the cables behind a wall or under the floor to a desk or table where you can place your computer. -
Page 29: Using Smart Software On Connected Computers
CHAPTER 2 USING THE DISPLAY 3. Tap Input The display shows thumbnails of the devices that are connected to the display’s inputs: A gray thumbnail indicates no device is connected to an input. A blue thumbnail indicates a device is connected to an input but is in sleep mode. A thumbnail showing a preview screen indicates a device is connected to an input and is currently active. -
Page 31: Chapter 3: Troubleshooting
Chapter 3 Troubleshooting Resolving issues with power Resolving issues with presence detection Resolving issues with video Resolving issues with image quality Resolving issues with audio Resolving issues with touch and digital ink Resolving issues with the iQ experience Resolving issues with software Referring to the SMART knowledge base for additional troubleshooting information Contacting your reseller for additional support Finding the display serial number... -
Page 32: Resolving Issues With Power
CHAPTER 3 TROUBLESHOOTING Resolving issues with power Issue Solutions The SMART product doesn’t turn Make sure the power cable is securely fastened to the power outlet and the on and its power light isn’t lit. SMART product. NOTE If the power cable is connected to a power bar, make sure the power bar is securely fastened to the power outlet and turned on. -
Page 33: Resolving Issues With Video
CHAPTER 3 TROUBLESHOOTING Resolving issues with video Issue Solutions You’re experiencing the following Make sure any connected computers are on and not in Standby mode. or similar issues with video: Make sure the iQ appliance is securely installed in the accessory slot and its power light is on. - Page 34 CHAPTER 3 TROUBLESHOOTING Issue Solutions There are bright spots on the Open the on-screen display menu. If it appears correctly, the issue is with the screen. video input. Take a photograph of the screen and send it to SMART support. If SMART support determines that the issue is with the screen and the SMART product is under warranty, you may be eligible for a replacement.
-
Page 35: Resolving Issues With Audio
CHAPTER 3 TROUBLESHOOTING Resolving issues with audio Issue Solutions You’re experiencing the following If you’re using external speakers, make sure the speakers are turned on. or similar issues with audio: Make sure the cables connecting the SMART product to the computer are securely fastened. -
Page 36: Resolving Issues With Touch And Digital Ink
CHAPTER 3 TROUBLESHOOTING Resolving issues with touch and digital ink Issue Solutions You’re experiencing the following Restart the SMART product. or similar issues with touch and Confirm with the installers that the computer is connected to the SMART product digital ink: with only a single cable. -
Page 37: Resolving Issues With Software
CHAPTER 3 TROUBLESHOOTING Resolving issues with software For information on resolving issues with SMART Learning Suite (including SMART Notebook software), see Troubleshooting SMART Notebook For information on resolving issues with SMART Meeting Pro software, see Troubleshooting SMART Meeting Pro Referring to the SMART knowledge base for additional troubleshooting information Refer to the SMART knowledge base for additional troubleshooting information: community.smarttech.com/s/topic/0TO0P00000010RIWAY/7000-series... - Page 38 SMART TECHNOLOGIES smarttech.com/support smarttech.com/contactsupport smarttech.com/kb/171163...
