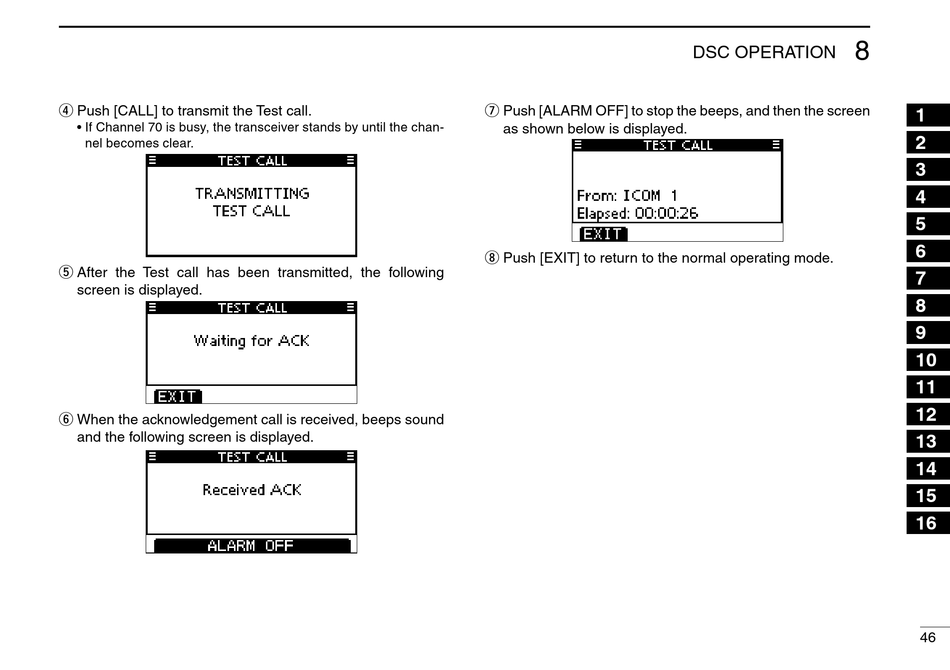

Icom IC-M92D Instruction Manual page 50

Push [CALL] to transmit the Test call.
r
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.
After the Test call has been transmitted, the following
t
screen is displayed.
When the acknowledgement call is received, beeps sound
y
and the following screen is displayed.
Push [ALARM OFF] to stop the beeps, and then the screen
u
as shown below is displayed.
Push [EXIT] to return to the normal operating mode.
i
8
DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
46
