30. Press a 3/4" Round Inner Cap (34) into each end of
the Pad Tube (28).
Insert the Pad Tube (28) through the indicated hole in
the Leg Lever (29). Slide a Foam Pad (30) onto each
end of the Pad Tube.
31. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 17 of this manual.
Before using the home gym system, pull each cable a few times to be sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly installed, they may be damaged when heavy weight is used. If there is
any slack in the cables, you will need to remove the slack by tightening the cables. See TROUBLE-
SHOOTING AND MAINTENANCE on page 18.

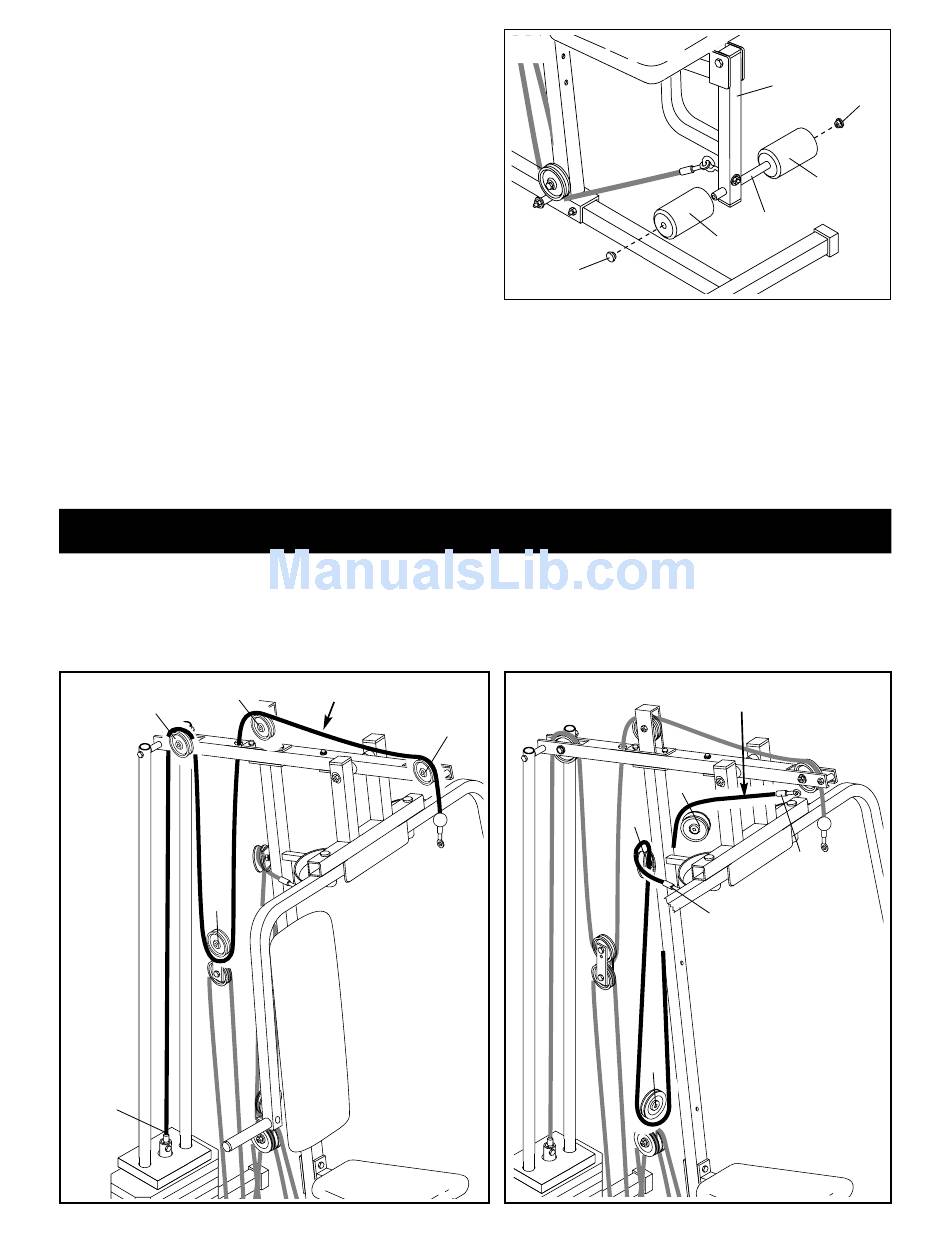

Cable Diagram (1)

The Cable Diagrams below and on the next page shows the proper routing of the Short Cable (58), the Butterfly
Cable (76) and the Long Cable (23). The numbers show the correct route for each Cable. Make sure the
Cables are routed correctly, that the Pulleys move smoothly and that the Cable Traps do not touch or
bind the Cables. Incorrect cable routing can damage the weight system.
2
4
3
5
Short Cable (58)
1
15
30
34
Butterfly Cable (76)
4
2
3
29
34
30
28
30
5
1
