Chapter 2: Basic Operation

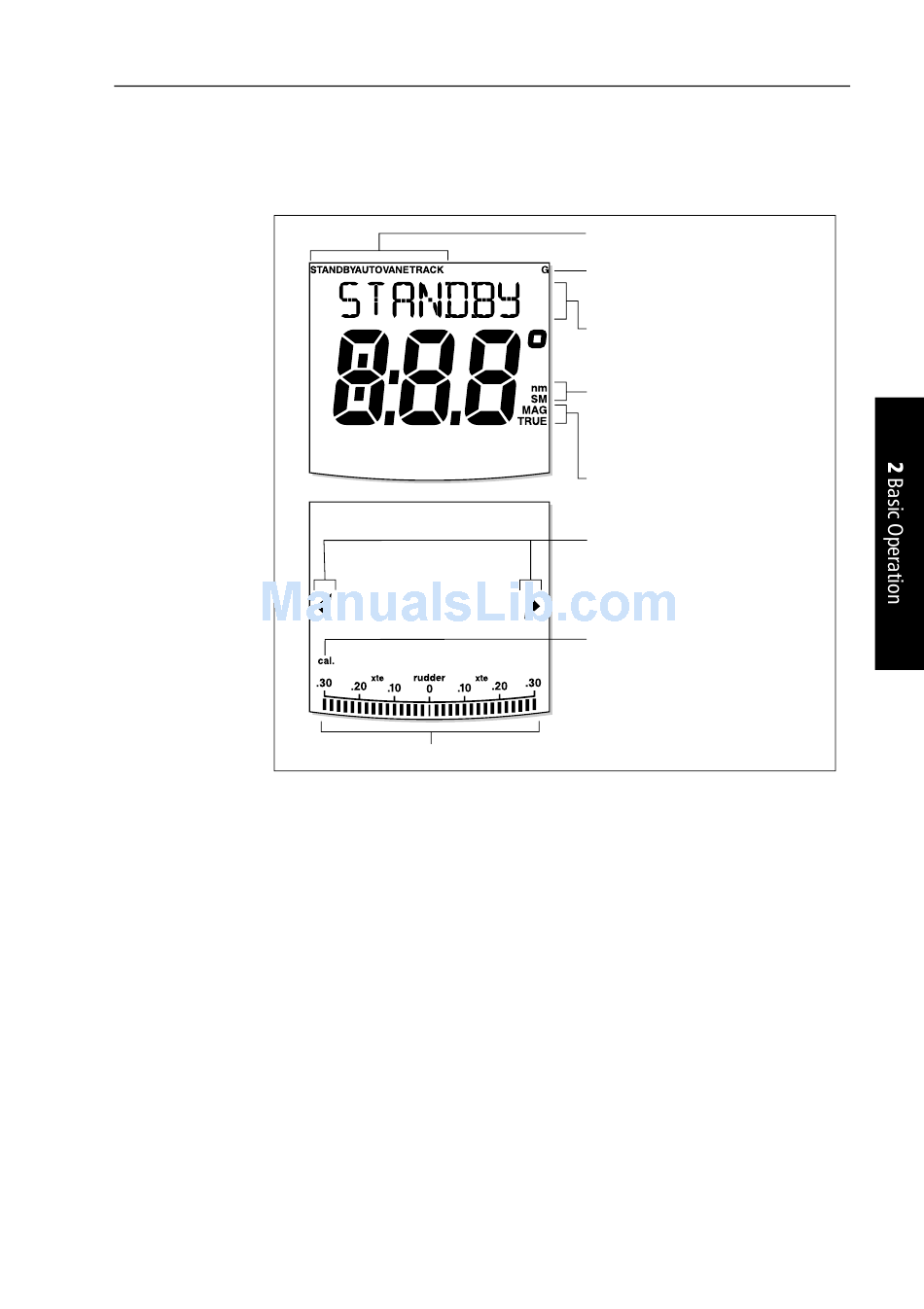

Display layout

The ST7001+ display screen provides the following information:
The bar graph at the bottom of the screen is normally a rudder position
indicator. This indicates the current position of the rudder, as
measured by the rudder position sensor.
Note: You can change this to a heading/cross track/wind error bar in
Display Calibration, see page 79.
Rudder position indicator or error bar
Autopilot mode indicators
GyroPlus indicator (appears if a
yaw sensor is connected to the autopilot)
Variable text area (up to 9 characters)
Distance units:
• no units = kilometres
• nm = nautical miles
• SM = statute miles
Heading indicators
Port and Starboard
direction-to-steer
indicators
Calibration mode indicator
(displayed on calibration pages)
5
D5458-1
