How to Set Up Your SRX550 High Memory Services Gateway
The SRX550 High Memory Services Gateway is a large branch office
gateway that combines security, routing, switching, and WAN interfaces
with next-generation firewall and advanced threat mitigation capabilities
for cost-effective, secure connectivity across distributed enterprise
locations. The services gateway simplifies network complexity, protects and
prioritizes network resources, and improves user and application experience.
The SRX550 High Memory Services Gateway comes with 4 GB of DRAM
memory and 8 GB of flash memory.
Package Contents
Verify that you have the following parts available:
• SRX550 High Memory Services Gateway
• RJ-45 cable with DB-9 adapter
• AC power supply
• Power cable
• Mounting brackets and screws
• USB cable
• Warranty and registration information
• End User License Agreement
• Quick Start Guide

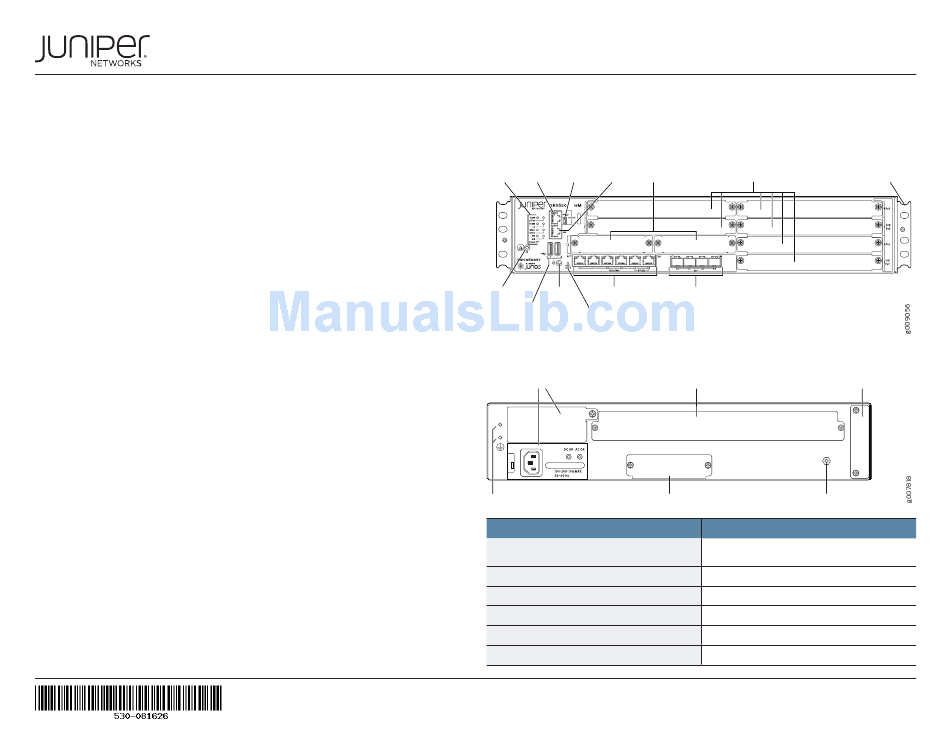

Front Panel
Serial
USB
Mini-PIM
console
console
AUX
LEDs
port
port
port
slots
ESD
Power
Gigabit
button
Ethernet ports
point
USB 0 and
Reset Config
USB 1 ports
button
Back Panel
Power supply slots
Grounding point
Storage slot
Specification
Dimensions (H x W x D)
Chassis weight
Average power consumption
Average heat dissipation
Relative humidity
Noise level
GPIM
slots
SFP
Ethernet ports
ACE slot
Air filter cover
ESD point
Value
3.5 in. x 17.5 in. x 18.2 in.
(8.89 cm x 44.45 cm x 46.23 cm)
21.96 lb (9.96 kg)
85 W
238 BTU/hr
5% to 90%, noncondensing
51.8 dB per ISO 7779 standard
Mounting
bracket
1
