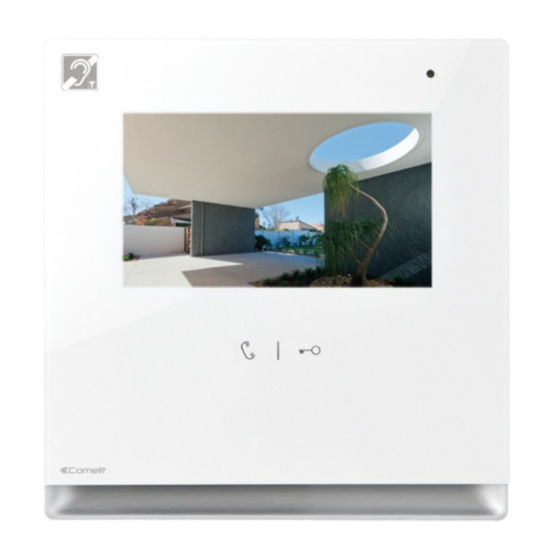

- Page 1 USER MANUAL User manual for Icona ViP monitor Art. 6602W - 6602W/BM - 6602WK...
-
Page 2: Table Of Contents
• All the equipment must only be used for the purpose it was designed for. • Comelit Group S.p.A. declines any responsibility for improper use of the apparatus, for any alterations made by others for any reason or for the use of non-original accessories or materials. -
Page 3: Monitor Description
MONITOR DESCRIPTION 1. Microphone 2. 4.3" touch screen 3. Door lock key [programmable] 4. Privacy / Doctor key [programmable] 5. Self-ignition key [programmable] 6. Open doors key 7. Video memory key 8. Key "3" [programmable] 9. Key "2" [programmable] 10. Key "1" [programmable] 11. -
Page 4: Icona Vip Menu
ICONA ViP MENU FAVOURITES BAR, FAVOURITES PAGE AND ADVANCED INFO The icons in the Icona ViP menu vary according to the type of system „ Hold pressed one of the icons in the main menu to open the installed and the functions available. corresponding favourites bar / favourites page / advanced info To navigate the menu, simply use your finger to touch the icon corresponding to the desired function. -
Page 5: Door Entry Monitors
DOOR ENTRY MONITORS DOOR ENTRY MONITORS - Open doors DOOR ENTRY MONITORS-Open doors This function allows you to interrogate a directory of doors (see "Door entry monitors- Doors directory" on page 18) to check their status (open/closed). Album 01 „ Press the icon to access the function, then select from the directory the door to be interrogated in Intercoms Cameras... -
Page 6: Door Entry Monitors - Messages
DOOR ENTRY MONITORS - Messages „ Press the VIDEO MESSAGES icon to access the video memory sub-menu. DOOR ENTRY MONITORS-Messages This function allows you to manage the ViP messaging system of the device. „ Press the icon to access the dedicated sub- VIDEO SEGRETERIA menu. -
Page 7: Door Entry Monitors - Audio Message
DOOR ENTRY MONITORS - Audio message AUDIO BROADCAST DOOR ENTRY MONITORS-Audio message The audio broadcast function allows you to play music and audio files The function allows you to enable audio message playback on the in the various rooms connected to the home automation manager. device on receipt of an incoming call. -
Page 8: Audio Broadcast - Player Screen
AUDIO BROADCAST - Player screen AUDIO BROADCAST - Playlist screen „ Short press on a player to open the play panel. „ Scroll to the left to display the PLAYLIST page Player 1 Playlist 1. Song_1 Player 1 Playlist Library Artist - Album 1. -
Page 9: Setup Menu Description
SETUP MENU DESCRIPTION General parameters-Language SETUP-General parameters-Language You can change the interface language. „ Press the icon to access the setup menu. Setup Language SETUP Italiano General parameters English Widgets Deutsch Audio broadcast Español Configure messages on event „ Select the desired language by pressing the relative icon, then confirm the selection. -
Page 10: General Parameters-Set Date And Time
General parameters-Set date and time General parameters-Volume control SETUP-General parameters-Set date and time SETUP-General parameters-Volume control This function allows you to set the time and date of the device. The menu allows you to manage and control the audio volumes associated with the various functions of the device. -
Page 11: General Parameters-Soft Touch Keys
SETUP-Widgets SETUP-Widgets The menu allows you to select which widgets are to be shown on the VIDEO DOOR ENTRY SETUP HOME page. Melody 1 Melody 2 Melody 3 SETUP Melody 4 Meter 1 Thermo 1 Alarm „ Press the name of the melody hear a preview. „... -
Page 12: Setup - Audio Broadcast
Port SETUP - Audio broadcast SETUP-Audio broadcast-Port From this menu you can manage the operating parameters of the audio broadcast function. „ Enter the port of the desired audio broadcast server, then confirm. • For configuration of the media server, refer to the technical documentation available online at the address http://wiki.slimdevices.com/index.php/Logitech_Media_Server •... -
Page 13: Setup - Configure Event Messages
„ Swipe your finger up or down to view all the available menu options. „ To access the desired sub-menu, press the corresponding icon. indirizzo@comelit.it » The available options are: Programming keys / Total reset / Import/ Export / Door entry monitors. -
Page 14: Total Reset
Total reset Create backup SETUP-ADVANCED-Total reset SETUP-ADVANCED-Import/Export-Create backup This function deletes all user, door entry monitor, home automation This function allows you to create a complete system backup and to and alarm system settings, plus calibration settings, restoring the save it on an SD card. default settings of the product. -
Page 15: Door Entry Monitors
Door entry monitors SETUP-ADVANCED-Door entry monitors The section allows you to manage the parameters of the door entry monitor system. 00000001 VIDEO SYSTEM Addresses Actuator directory Cameras directory Intercom Directory „ Enter the desired value, then confirm. Door entry monitors - Actuators directory „... -
Page 16: Door Entry Monitors - Cameras Directory
Door entry monitors - Cameras directory • CONFIGURE NAME allows you to enter or edit the name of the device to be entered in SETUP-ADVANCED-Door entry monitors-Cameras directory the list. This function allows you manage a directory of the cameras connected to ViP systems or via RTSP protocol. -
Page 17: Door Entry Monitors - Intercoms Directory
Door entry monitors - Intercoms directory „ Press the icon (1) to move to the next mode. ViP > RTSP SETUP-ADVANCED-Door entry monitors-Intercoms directory RTSP > ViP This function allows you to add and manage the intercoms connected √ RTSP MODE to the ViP system. -
Page 18: Door Entry Monitors- Doors Directory
Door entry monitors- Doors directory Door entry monitors - Set tone repetition SETUP-ADVANCED-Door entry monitors-Doors directory SETUP-ADVANCED-Door entry monitors-Set tone repetition This function allows you to add and manage electronic locks (doors) This function allows you to set the number times the tone is repeated connected to the door entry monitor system. -
Page 19: Door Entry Monitors - Alarms
„ Press next to the required call type to open the corresponding sub- • The waiting time value only applies when the ACTIVATE TIMED menu. DIVERT function is enabled (see below). • ACTIVATE TIMED DIVERT Selecting this function activates call divert in the event of no reply or absence. -
Page 20: Door Entry Monitors - Hands-Free
