- Page 1 TECHNICAL MANUAL Maxi door entry monitor Art. 6801W Passion.Technology. Design.
-
Page 2: Table Of Contents
Table of contents Warning Description ..................3 Soft-touch key description ..............4 Soft-touch key activation ................4 Indicator LED description................4 Technical specifications ..............5 Installation ..................7 Mounting the 7" MAXI SBC monitor on flush-mounted box Art. 6817 .. 7 Wall-mounting (Art. 6820 - optional) ............8 Connections .................. -
Page 3: Description

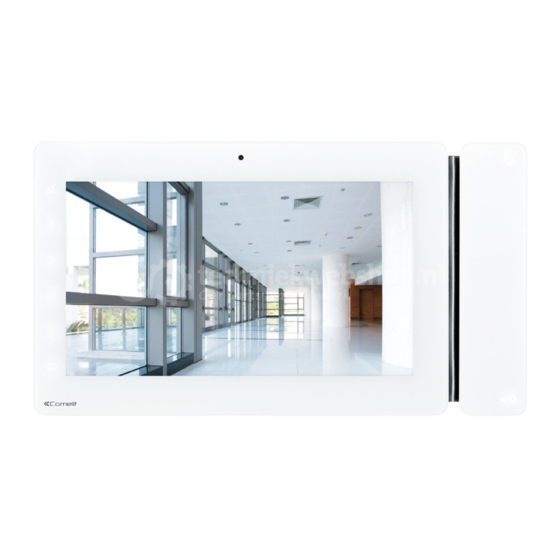

Article 6801W is a colour monitor equipped as standard with 8 function buttons and 6 adjustment buttons. • Article 6801W/BM is a colour monitor equipped as standard with 8 buttons, 6 adjustment buttons and an induction loop. 1. 7” colour LCD screen 2. -
Page 4: Soft-Touch Key Description
3 flashes (every 5 s.) = Doctor function enabled steady = privacy function enabled The monitor Art. 6801W is designed for use in colour systems, in the SB2 section downstream of Art. 4888C, or in systems without mixer, such as the system with 2-wire KIT or Art. 1210. -
Page 5: Technical Specifications
Technical specifications MAIN SPECIFICATIONS 6801W 6801W/BM Audio/video system Flush-mounted Wall-mounted Desk base-mounted Hands-free function Induction loop function Type of display Display size (inches) 7? 16/9 7? 16/9 Display resolution (H x V) 800x480pixel 800x480pixel B/W or colour display Color Color... - Page 6 TECHNICAL SPECIFICATIONS 6801W 6801W/BM Power supply voltage 22÷28Vdc 22÷28Vdc Maximum current absorption (mA) Power consumption stand-by (mA) In called absorption (mA) In communication absorption (mA) Microphone 5mm omni-direction 5mm omni-direction Loudspeaker 80mm 80Ohm 1W 80mm 80Ohm 1W IP Rating Operating temperature (°C) -5÷40...
-
Page 7: Installation
Installation Mounting the 7" MAXI SBC monitor on flush-mounted box Art. 6817 223 mm ALTO HAUT OBEN L min = 6 cm L max = 10 cm CLACK ! DISASSEMBLY... -
Page 8: Wall-Mounting (Art. 6820 - Optional)
Wall-mounting (Art. 6820 - optional) 223 mm L min = 6,5 cm L max = 7 cm CLACK ! DISASSEMBLY... -
Page 9: Connections
1212/B ADDITIONAL RINGER 1229 VIDEO ENTRY SYSTEM RISER IN IN 6801W 1214/2C PROGRAMMABLE INPUT VIDEO ENTRY SYSTEM RISER 20 m MAX - Connect only one call repetition device for each user code. 20 m MAX - Use shielded cable for the connection and do not route the cables in the vicinity of heavy inductive loads or power supply cables (230V/400V). -
Page 10: Monitor Configuration
Monitor configuration Standard configuration for soft-touch keys DIP S2 DIP 1 DIP 2 DIP 3 DIP 4 INTb INTb INTb INTb INTb NULL NULL NULL NULL NULL NULL NULL PROG Standard configuration for DIP switches 1-2-3-4 Legend Lock- release Audio Actuator Self-ignition Main switchboard call –... -
Page 11: Power Supply Configuration And Management - Dip 7 Of S2
Power supply configuration and management - Dip 7 of S2 f For correct power management, the DIP switch should be set in accordance with the type of system and its configuration: • in systems with power supply units 1209 and1210: always set the DIP switch to ON •... -
Page 12: Advanced Monitor Configuration
Advanced monitor configuration Warning If the default settings (see table “Standard configuration for soft-touch keys”) do not reflect requirements, the keys can be programmed differently by carrying out the steps below. At the end, set S2 DIP switches 1-2-3-4 to the combination 1111 (PROG setting in the configuration tables "Advanced monitor configuration"). -
Page 13: Programming Buttons For Intercom Call
Programming buttons for intercom call DIP S2 DIP S1 DIP 1 DIP 2 DIP 3 DIP 4 INTb INTb INTb ADDRESS INTb INTb PROG Example 1 - all systems (INCLUDING KITS!) - General intercom on a monitor with user code 5, P2 programming = general internal call, P3 = general intercom with address 9 Example 2 - Selective intercom on a monitor with user code 1 and intercom address 1, P2 programming = selective intercom with address 2, P3 = selective intercom with address 3... -
Page 14: Direct Programming Of Intercom Call
Direct programming of intercom call Allows direct programming of intercom call via the internal units. √ Requires 2 operators Step 1: enter programming mode Operator 1 and Operator 2 carry out the following procedures on 2 internal units: 1. Set S2 DIP switches 1-2 -3-4 to the combination 1111 2. -
Page 15: Programming Keys For Generic Or Coded Actuator
Programming keys for generic or coded actuator DIP S2 DIP S1 DIP 1 DIP 2 DIP 3 DIP 4 ADDRESS PROG Example: on a monitor with user code 5, P1 programming = generic actuator, = coded actuator (code 125) Take note of the DIP-switch settings 1. -
Page 16: Programming Buttons For Other Functions
Programming buttons for other functions DIP S2 DIP S1 DIP 1 DIP 2 DIP 3 DIP 4 ADDRESS NULL NULL NULL NULL NULL NULL PROG Legend Lock- release Audio Self-ignition Main switchboard call – not for use in systems with KIT Secondary switchboard call –... -
Page 17: Programming Range
Programming range Take note of the S2, S1 setting and restore it when programming is complete f Carry out steps 1 to 4 Range S2 DIP minimum 1 2 3 4 5 6 address 0 0 0 0 1 0 set code, addressing table Range... -
Page 18: Led/Alarm/Lock-Release/Actuator Programming
LED/alarm/lock-release/actuator programming Take note of the S2, S1 setting and restore on completion of programming f Carry out steps 1 to 4 S2 DIP Input IN 1- IN 2 1 2 3 4 5 6 LED (default)* 0 0 0 1 1 0 Input CFP2 - IN 1 ALARM* Input CFP2 - IN 1... -
Page 19: Changing Monitor Ringtones
Changing monitor ringtones 1. Keep the button pressed until a confirmation tone is emitted (this operation is only possible with the system in stand- by; otherwise the signalling LED will flash to warn the user) 2. Press and release the button: once (1 confirmation tone is emitted) to change the ringtone of calls from the external unit. - Page 20 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
