- Page 1 TECHNICAL MANUAL Handsfree door entry phone Mini 6750W, Mini 6751W Passion.Technology. Design.
- Page 2 Table of contents Warning Description ..................3 Art. 6750W ....................3 Art. 6751W ....................4 Technical characteristics ..............5 Wall-mounted ................... 6 Connections ..................8 Connection to the video entry riser and the floor door call button ..8 Branched connection to the video entry system riser from the internal video unit....................8 Connection to the door entry riser and the floor door call button ..8 Touch-sensitive buttons ..............
-
Page 3: Description

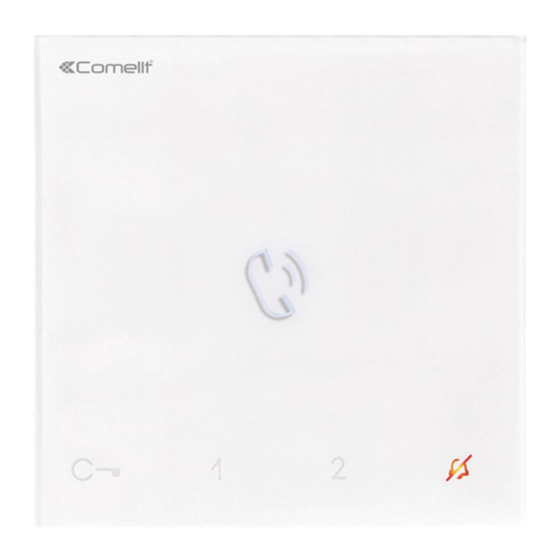

Description Art. 6750W • Mini series handsfree door entry phone with full-duplex audio and integrated magnetic induction audio amplification system. With 5 touch sensitive buttons for audio key, lock release, actuator, switchboard call and Privacy functions, and door status indicator LED. Floor door call management as standard. Equipped with branch terminal art. 1214/2C. •... -
Page 4: Art. 6751W
Art. 6751W • Mini series door entry phone with full-duplex audio. With 5 touch sensitive buttons for audio key, lock release, actuator, switchboard call and Privacy functions, and door status indicator LED. Floor door call management as standard. • For use in SimpleBus2 audio systems with power supply unit art. 1210. 1. -
Page 5: Technical Characteristics
Technical characteristics Art. 6750W Art. 6751W MAIN SPECIFICATIONS SimpleBus 2 audio system SimpleBus Top audio/video system Building Kit audio/video system Audio/Video kit Induction Loop system Branch terminal provided Wall-mounted Full-duplex audio Product colour White White Sensitive Touch technology Total buttons Additional buttons LED signaling (No.) FUNCTIONS... -
Page 6: Wall-Mounted
Wall-mounted optional CLACK! » REMOVAL... - Page 7 Terminal removal Terminal installation...
-
Page 8: Connections
Connections Connection to the video entry riser and the floor door call button VIDEO ENTRY 6750W SYSTEM RISER 1214/2C FLOOR DOOR CALL 1209 / 1210 /4888C Branched connection to the video entry system riser from the internal video unit VIDEO ENTRY SYSTEM RISER 6721W 6750W... -
Page 9: Touch-Sensitive Buttons
Touch-sensitive buttons Description Audio activation [programmable] Lock release [programmable] Actuator function [programmable] Secondary switchboard [programmable] Privacy Mode [not programmable] f Press the desired button once to activate the associated function. Wait for approximately 1 sec. before pressing the same button again. Pressing the same button several times in quick succession will cancel the command. -
Page 10: Configuration
Configuration Touch-sensitive buttons Legend Audio Lock-release Privacy mode Actuator Call to main switchboard Call to secondary switchboard Caretaker door-entry phone call Doctor (Automatic door opening on receipt of call) Panic General or selective programmable intercom. Default: single-family call General or selective programmable intercom. INTb Default: two-family call NULL... -
Page 11: Advanced Configuration
Advanced configuration Warning If the default settings (Table "Basic configuration") do not reflect requirements, the buttons can be programmed differently by carrying out the steps below. After programming, set S2 DIP switches 1-2-3-4 to the combination 1111. With these DIP-switch settings, the buttons control the programmed functions. -
Page 12: Intercom Call: Button Programming
Intercom call: button programming 1. To enter programming mode, set S2 DIP-switch 6 to combination 1 » the Privacy LED flashes S2 DIP 1 2 3 4 5 6 0 0 0 0 0 1 2. Refer to the table Basic configuration and select a combination in which the intercom function is listed for the buttons you wish to program. -
Page 13: Intercom Call: Direct Programming
Intercom call: direct programming Allows direct programming of intercom call via the internal units. √ Requires 2 operators Step 1: enter programming mode Operator 1 and Operator 2 carry out the following procedures on 2 internal units: 1. Set S2 DIP switches 1-2-3-4 to the combination 1111 2. -
Page 14: Generic Actuator, Addressable Actuator: Button Programming
Generic actuator, Addressable actuator: button programming Take note of the DIP-switch settings. 1. To enter programming mode, set S2 DIP switch 6 to combination 1 » the Privacy LED flashes S2 DIP 1 2 3 4 5 6 0 0 0 0 0 1 2. -
Page 15: Other Functions
Other functions 1. To enter programming mode, set S2 DIP switch 6 to combination 1 » the Privacy LED flashes S2 DIP 1 2 3 4 5 6 0 0 0 0 0 1 2. Refer to the table "Basic configuration" and select a combination in which the desired/necessary functions are listed for the buttons you wish to program. -
Page 16: Programming Range
Programming range Take note of the S2, S1 settings and restore on completion of programming Carry out steps 1 to 4 S2 DIP Range minimum 1 2 3 4 5 6 address 0 0 0 0 1 0 set code, addressing table Range maximum address... -
Page 17: Programming Reset
Programming reset Factory settings • Button functions for the S2 DIP switches 1-2-3-4 combination • Intercom address absent • Range function and min./max. addresses absent DIP OFF • Ringtone reset Take note of the S2, S1 settings and restore on completion of programming S2 DIP DIP ON 1 2 3 4 5 6... - Page 18 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
