FireGenie REMOTE CONTROL OPERATING INSTRUCTIONS 918-269 06 May 2015 © Copyright 2005, FPI Fireplace Products International Ltd. All rights reserved. -
Page 2: Table Of Contents
Setting the Program Mode ....................11 Interfacing with Manual Control ..................16 Troubleshooting ........................ 16 Special Conditions in Program Mode ................16 Matching Remote Handset & Control Box ID Code ........... 17 Warning & Cautions ......................18 Page 2 FPI FireGenie Remote Control Manual... -
Page 3: Remote Control Keypad

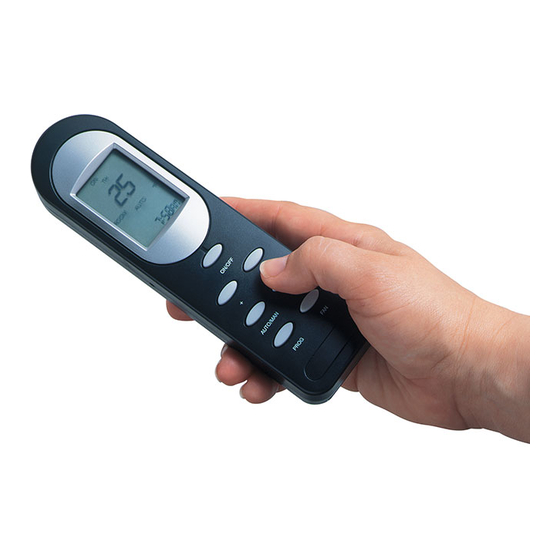

The FireGenie Remote Control was developed to provide a user-friendly system to use your appliance. The operating range is approximately 10 metres. A Quick Reference Sticker is available to be placed on the back of your remote control handset. Place the sticker close to the very top of the remote, away from the battery opening and wall mounting bracket. -
Page 4: Remote Control Screen Display (Lcd)
7. Battery Low Indicator “ ” 8. Programmed Mode Indication “PROG 1” / “PROG 2”; 9. Temperature Display in “ºC” or “ºF”; 10. Fan Speed Indication (3 different fan speeds); 11. Time of Day with AM, PM; Page 4 FPI FireGenie Remote Control Manual... -
Page 5: Quick Reference Of Basic Functions
The On/Off button is used to switch the Remote ON or OFF. If the Remote is switched OFF, pressing and releasing the On/Off button will switch ON the Remote (and the FireGenie Control Box). Once switched ON, the Remote will continue with its last selected operating mode, for example, Manual, Auto or Program mode. -
Page 6: Manual And Auto Mode
3. While the “-” button is held down, press and release the “+” button, this will toggle the temperature display between °C and °F. This setting is stored in memory hence the Remote will continue to display the temperature in Fahrenheit even if the battery is replaced. Page 6 FPI FireGenie Remote Control Manual... -
Page 7: Manual Mode
** Only on select models. Some models (GF Series) require the fan on at all times. The display on the LCD will be as follows: Fan on Low Speed Fan on Medium Fan on High Speed Fan = OFF Speed FPI FireGenie Remote Control Manual Page 7... -
Page 8: Flame Height Adjustment
Conversely pressing and releasing the “-” button once will decrease the flame to the next lower setting. Examples of the display on the LCD are as follows: Flame Setting = 1 Flame Setting = 3 Flame Setting = 6 Page 8 FPI FireGenie Remote Control Manual... -
Page 9: Auto Mode
“+” and “-” buttons. The LCD will show the following when either the “+” or “-” button is pressed: Room Temperature Temperature Auto Mode normal When “+” “-” display button is pressed FPI FireGenie Remote Control Manual Page 9... -
Page 10: Program Mode
Pressing and releasing the PROGRAM button successively will allow the user to review the programmed times for each day of the week. If the Time Zones have not been programmed in the Remote, the display will show the following: Programs have not been set. Page 10 FPI FireGenie Remote Control Manual... -
Page 11: Setting The Program Mode
The On-Time for Time Zone 1 will also flash. The “+” and “-” buttons can be used to adjust this time setting. The LCD will show the current setting in Time Zone 1 for Monday: Programming of Time Zone 1 Time Zone 1 On-Time FPI FireGenie Remote Control Manual Page 11... - Page 12 Press and release the PROG button again to program the Set Temperature. Use the “+” and “-” buttons to adjust the temperature setting. Time Zone 1 Set Temperature Programming of Time Zone 1 Page 12 FPI FireGenie Remote Control Manual...
- Page 13 Press and release the PROG button again to program the Off-Time of Time Zone 2. Use the “+” and “-” buttons to adjust this time setting. The LCD will show the following: Programming of Time Zone 2 Time Zone 2 Off-Time FPI FireGenie Remote Control Manual Page 13...
- Page 14 7b) Alternatively, Copy Programs Over to the Other Days Pressing and holding the PROG button for 2 seconds or longer will initiate the copying process. The next Day of Week flashes Time Zone 1 Setting of Monday Page 14 FPI FireGenie Remote Control Manual...
- Page 15 Press and release the PROG button to return to normal programming mode. 8) Exiting Programming Mode The Remote will automatically exit the Programming mode 20 seconds after the last button is released. FPI FireGenie Remote Control Manual Page 15...
-
Page 16: Interfacing With Manual Control
Time Zone, the Off-Time of the first Time Zone will have precedent, for example, if Time Zone 1 is programmed to end at 2:00 pm whereas Time Zone 2 is programmed to commence at 1:00 pm, the following will occur: Page 16 FPI FireGenie Remote Control Manual... -
Page 17: Matching Remote Handset & Control Box Id Code
The control box will only learn the Remote ID codes during the first 30 seconds after power is applied and will ignore this special command from the Remote after the first 30 seconds. NOTE: This must only be performed by a qualified installer. FPI FireGenie Remote Control Manual Page 17... -
Page 18: Warning & Cautions
Excessive heat can cause property damage. The fireplace can stay ignited for many hours. Take care to turn off the fireplace if it is unattended by adult people. Keep remote control out of reach of children. Page 18 FPI FireGenie Remote Control Manual... - Page 19 NOTES: ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ FPI FireGenie Remote Control Manual Page 19...
- Page 20 Remote Control and Receiver I.D. Code” on page 6 in the enclosed manual, and follow the coding instructions carefully. Failure to code these together will result in malfunction of the remote control device. FireGenie is a trademark of FPI Fireplace Products International Ltd. Printed in Canada...
