2.2.2 System Capacity

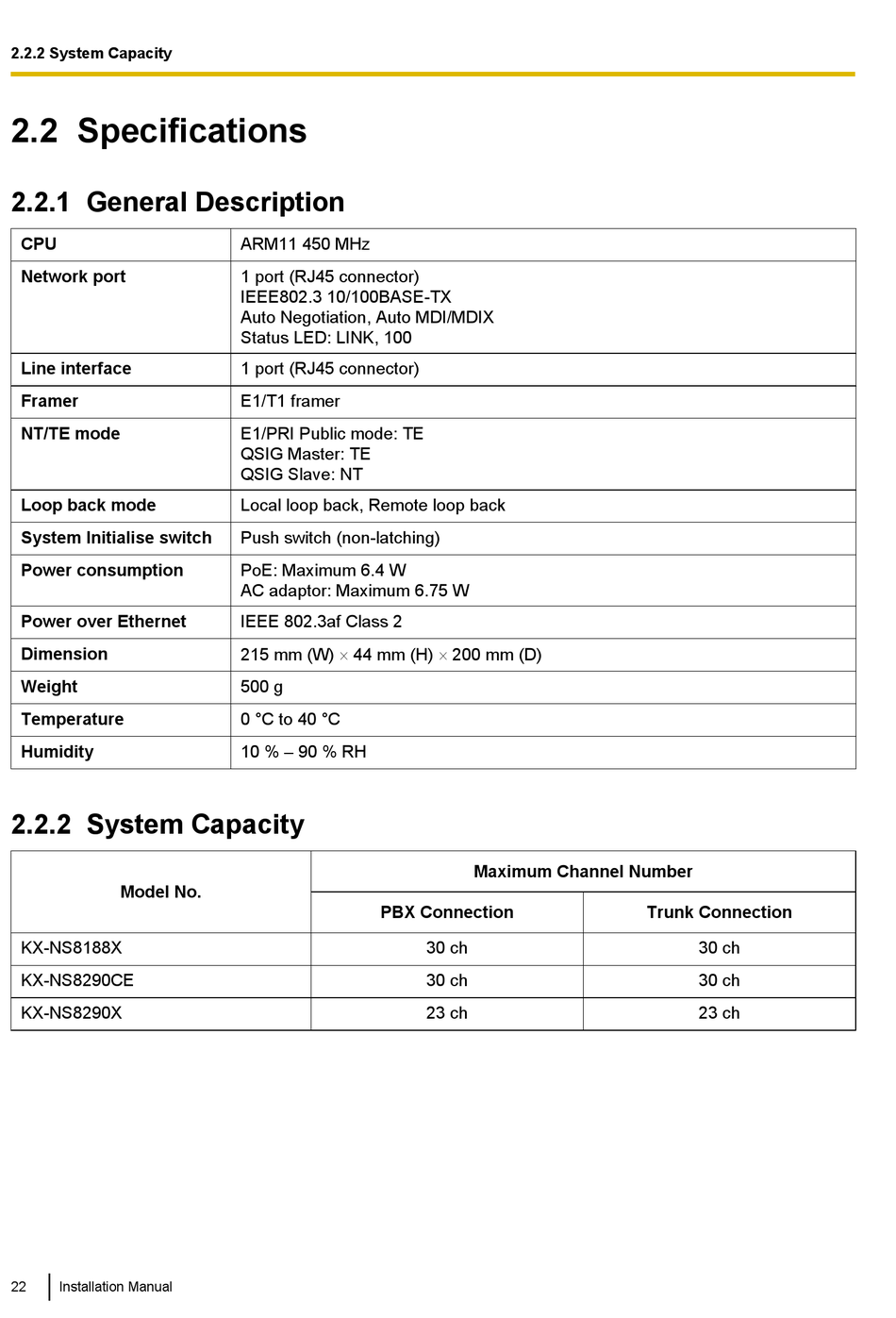

2.2 Specifications

2.2.1 General Description

CPU
Network port
Line interface
Framer
NT/TE mode
Loop back mode
System Initialise switch
Power consumption
Power over Ethernet
Dimension
Weight
Temperature
Humidity
2.2.2 System Capacity
Model No.
KX-NS8188X
KX-NS8290CE
KX-NS8290X
22 Installation Manual
ARM11 450 MHz
1 port (RJ45 connector)
IEEE802.3 10/100BASE-TX
Auto Negotiation, Auto MDI/MDIX
Status LED: LINK, 100
1 port (RJ45 connector)
E1/T1 framer
E1/PRI Public mode: TE
QSIG Master: TE
QSIG Slave: NT
Local loop back, Remote loop back
Push switch (non-latching)
PoE: Maximum 6.4 W
AC adaptor: Maximum 6.75 W
IEEE 802.3af Class 2
215 mm (W) ´ 44 mm (H) ´ 200 mm (D)
500 g
0 °C to 40 °C
10 % – 90 % RH
PBX Connection
Maximum Channel Number
30 ch
30 ch
23 ch
Trunk Connection
30 ch
30 ch
23 ch
