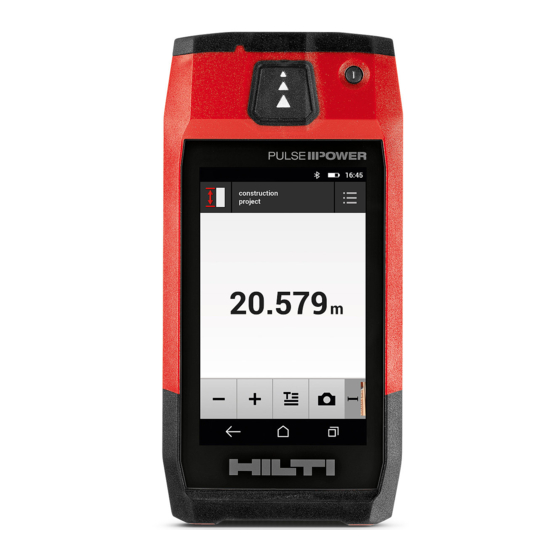

Laser distance measurer
Hide thumbs Also See for PD-C:

Advertisement

Quick Links

Download this manual See also: Operating Manual, Manual
PD-C
PD-CS
English
Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01

Advertisement

loading

Related Manuals for Hilti PD-C

Summary of Contents for Hilti PD-C

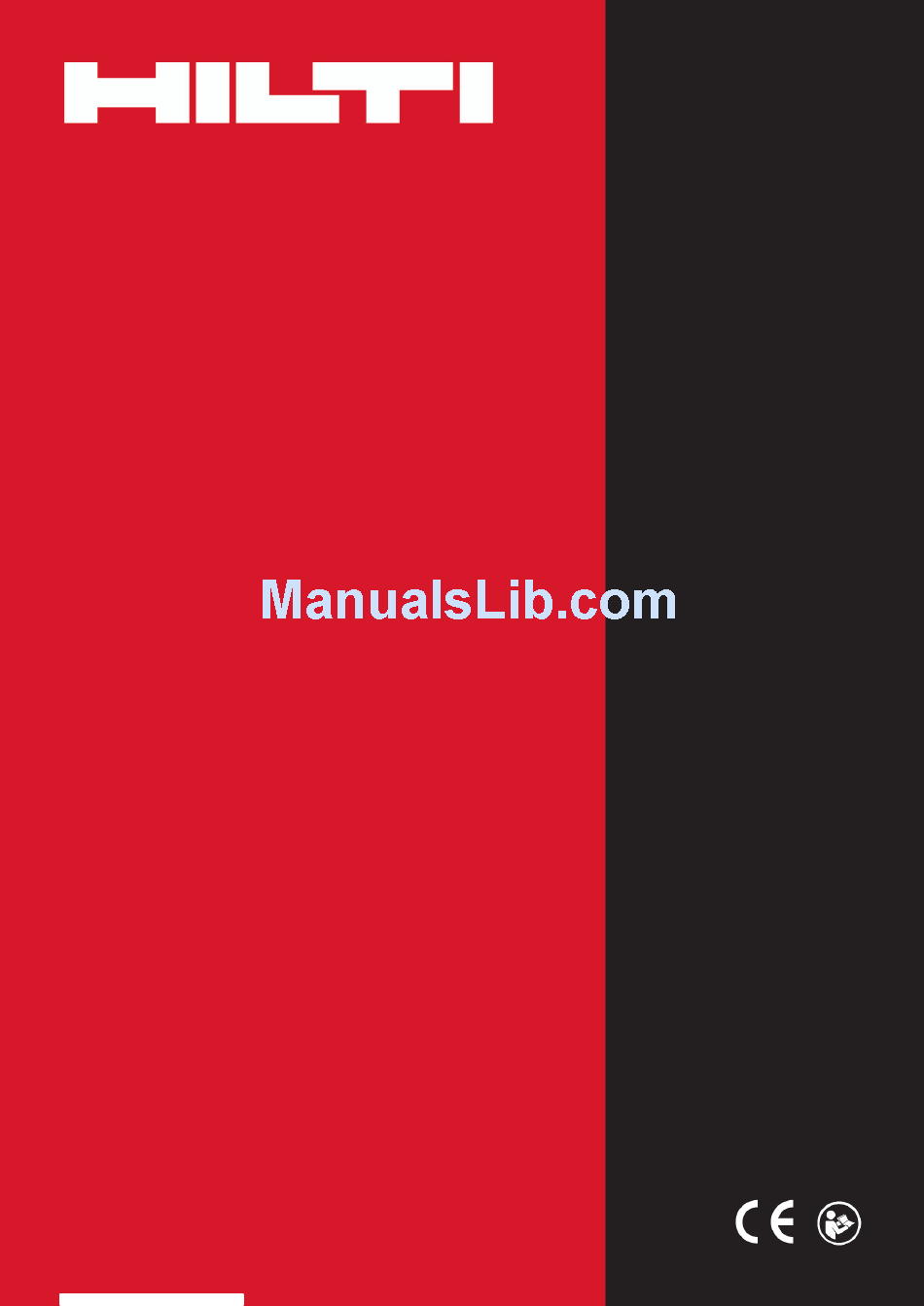

  • Page 1 PD-C PD-CS English Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 2 Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product.
  • Page 4 Possible hazard or risk of electric shock or burning injuries! Attempting to remove the battery presents a risk of electrical hazards, e.g. short circuiting, burning injuries and leakage of harmful substances. ▶ Do not attempt to open the product. Have the battery replaced only by Hilti Service. English...
  • Page 5 CAUTION Possible hazard or risk of electric shock or burning injuries! Ingress of liquids such as rainwater, dew or condensation, etc. into the product presents a risk of electrical hazards, e.g. short circuiting, burning injuries and explosion. ▶ Keep the product clean and dry at all times. ▶...
  • Page 6 ▶ If the product is opened improperly, laser radiation in excess of Class 2 may be emitted. Have the product repaired only by Hilti Service. ▶ Tampering with or modification of the product is not permitted. ▶ Check that the product functions correctly each time before use.
  • Page 7 ▶ The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed. ▶ To avoid the risk of injury, use only genuine Hilti accessories and additional equipment. ▶ Observe the information printed in the operating instructions concerning operation, care and maintenance.
  • Page 8 2.5 General safety rules ▶ Check the product for damage before use. Have the damage repaired by Hilti Service. ▶ Before using the product, just to be sure, check the product’s preset settings and any settings you have made yourself.
  • Page 9 English Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 10 English Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...

  • Page 11: Product Overview

    3 Description 3.1 Product overview English Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 12 Laser range meter, wrist strap, soft pouch, short measuring extension, power supply unit with micro-USB cable. Other system products approved for use with this product can be found at your local Hilti Store or online at: www.hilti.group. 4 Technical data 4.1 Distance measurement...
  • Page 13 PD-C PD-CS Minimum distance for aim- > 2 m > 2 m ing with the laser point and (> 6 ft - 10 in) (> 6 ft - 10 in) cross hairs without use of the zoom function Minimum distance for aim- >...
  • Page 14 4.4 Laser PD-C PD-CS Laser class Visible, laser class Visible, laser class 2, IEC/EN 60825- 2, IEC/EN 60825- 1:2007; Class 2 1:2007; Class 2 CFR 21 § 1040 (FDA) CFR 21 § 1040 (FDA) Wavelength 635 nm 635 nm Output power <...
  • Page 15 6 Regular product updates Regular software updates are planned. Download the PD-C updater utility for PC and the latest product manual with operating instructions and software. The permanent link for the PD-C updater utility for PC is: https://www.hilti.group/updatePDC Minimum requirements must be fulfilled in order to use the software.
  • Page 16 ◁ The inclination sensor is adjusted. 9 Transport and storage 9.1 Transport ▶ To protect the PD-C / PD-CS always use the soft pouch supplied by Hilti for carrying and for transport. 9.2 Storage ▶ Do not put the tool into storage when wet. Allow it to dry before putting it away.
  • Page 17 12 Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. 13 FCC statement (applicable in US) / IC statement (applicable in Canada) Note This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules.
  • Page 18 English Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 19 Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 20 Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 21 Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
  • Page 22 Hilti = registered trademark of Hilti Corp., Schaan 20171123 Printed: 28.11.2017 | Doc-Nr: PUB / 5314372 / 000 / 01...
