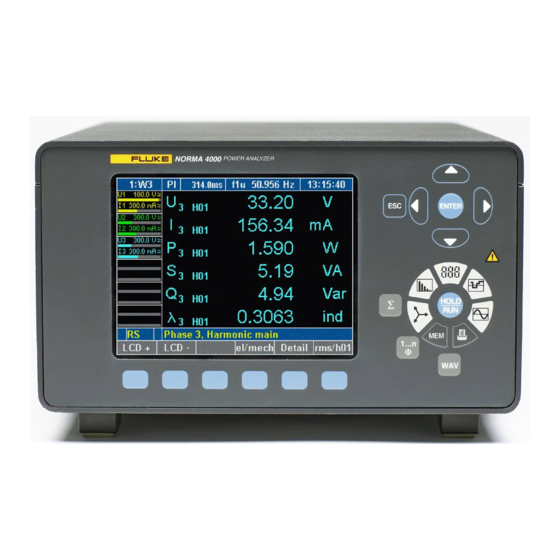

Fluke NORMA 4000 Operator's Manual

Power analyzer
Hide thumbs Also See for NORMA 4000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
®
NORMA 4000/5000
Power Analyzer
Operators Manual
PN 2842188
June 2007 Rev.2, 5/12
© 2007-2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
MyFlukeStore
1.888.610.7664
www.
.com
Shop for Fluke products online at:

Advertisement

Table of Contents
loading

Related Manuals for Fluke NORMA 4000

Summary of Contents for Fluke NORMA 4000

  • Page 1 ® NORMA 4000/5000 Power Analyzer Operators Manual PN 2842188 June 2007 Rev.2, 5/12 © 2007-2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. MyFlukeStore 1.888.610.7664 www. .com...
  • Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
  • Page 3 Der Erwerber hat nur dann das Recht, aus der Garantie abgeleitete Unterstützungsleistungen in Anspruch zu nehmen, wenn er das Produkt bei einer von Fluke autorisierten Vertriebsstelle gekauft oder den jeweils geltenden internationalen Preis gezahlt hat. Fluke behält sich das Recht vor, dem Erwerber Einfuhrgebühren für Ersatzteile in Rechnung zu stellen, wenn dieser das Produkt in einem anderen Land zur Reparatur...
  • Page 4 à offrir une garantie plus étendue ou différente au nom de Fluke. Le support de garantie est offert uniquement si le produit a été acheté à un point de vente agréé par Fluke ou bien si l’acheteur a payé...
  • Page 5 向买方收取修理/更换零部件的进口费用的权利。 Fluke 公司的保证责任是有限的，Fluke 公司可以选择是否将依购买价退款、免费维修或更换在保证期内退回 到 Fluke 公司委托服务中心的有缺陷产品。 要求保修服务时，请与就近的 Fluke 授权服务中心联系，获得退还授权信息；然后将产品连同问题描述寄至 该服务中心，并预付邮资和保险费用（目的地离岸价格）。Fluke 对运送途中发生的损坏不承担责任。在保 修之后，产品将被寄回给买方并提前支付运输费（目的地交货）。如果 Fluke 认定产品故障是由于疏忽、 滥 用、污染、修改、意外或不当操作或处理状况而产生，包含使用超出产品特的特定额定值而导致过电压故 障，或是由于机件日常使用耗损，则 Fluke 会估计修理费用，在实际修理之前先获得买方同意。在修理之后， 产品将被寄回给买方并预付运输费；买方将收到修理和返程运输费用（寄发地交货）的帐单。 本保证为买方唯一能获得的全部赔偿内容，并且取代所有其它明示或隐含的保证，包括但不限于适销性或适用 于特殊目的的任何隐含保证。FLUKE 不应对由于任何原因或推理所发生的任何特殊、间接、偶发或后续的 损 坏或损失承担赔偿责任，包括数据丢失。 由于某些国家或州不允许对隐含保证的期限加以限制、或者排除和限制意外或后续损坏，本保证的限制和排除 责任条款可能并不对每一个买方都适用。如果本保证的某些条款被法院或其它具有适当管辖权的裁决机构判定 为无效或不可执行，则此类判决将不影响任何其它条款的有效性或可执行性。 11/99 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 6 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 7: Table Of Contents

    Safety Instructions on the Device Housing ............2-5 Mains Connection ..................2-5 Input Voltage and Current ................2-5 Maintenance ....................2-6 Indoor Use ..................... 2-6 Design and Functions ................. 3-1 About this Chapter ..................... 3-3 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 8 Modify Loaded Configurations ..............7-5 Configure Method ....................7-5 Configure Data Transfer to Printer and PC ............7-5 Configure External Printer ................7-6 Configure Interface to PC ................7-7 Configure RS 232 ..................7-7 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 9 View Fundamental Value Details ..............8-11 User-Defined Screen View ................8-13 View User-Defined Screen ............... 8-13 Select Numeric Values ................8-14 Change User-Defined Display Size............8-15 Save User Defined Screen ................. 8-15 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 10 View Torque – All Motors ................9-10 View Speed – All Motors ................9-11 Process Interface - Technical Data ..............9-12 Eight Inputs (Analog/Digital) ................ 9-12 Input Configured as Analog Input ............. 9-12 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 11 Total values (sum or average) ................10-4 Frequency Analysis .................... 10-6 Optional Process Interface Formulas ..............10-7 Technical Data ..................11-1 Technical Data Fluke NORMA 4000/5000 ............11-3 General Technical Data ................. 11-3 Reference Conditions ..................11-3 Ambient Conditions ..................11-3 Standards .......................
  • Page 12 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 13: List Of Tables

    Terminal Descriptions .................... 3-3 3-2. Display Descriptions ....................3-4 3-3. Status Symbols ....................... 3-5 3-4. Navigation Control Descriptions ................3-5 3-5. Function Keys ......................3-6 7-1. Configuration Menus ..................... 7-3 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 14 NORMA 4000/5000 Operators Manual viii MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 15: List Of Figures

    11-4. Linearity of U & I in % vs. rdg/rng in % (50/60 Hz) ..........11-8 11-5. Uncertainty in % of U & I vs. Frequency (rdg/rng = 100%, antialiasing filter off) ....................11-8 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 16 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 17: About This Document

    Storage ........................1-3 Recalibration ......................1-3 Maintenance ......................1-3 Decommissioning and Disposal ................1-4 Shutting Down ...................... 1-4 Recycling and Disposal ..................1-4 Housing ........................ 1-4 Electronic Components ..................1-4 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 18 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 19: Signs And Symbols

    Conforms to requirements of European Union and European Free Trade Association (EFTA). Conforms to relevant North American Safety Standards.  Conforms to relevant Australian Standards. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. Earth ground. Transport and Storage Transport •...

  • Page 20: Decommissioning And Disposal

    The electronic components including the power adapter, filter, plug-in modules, and wires have a weight of approximately 1500 g (3.3 lb) and a volume of approximately 3000 cm (183 in MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 21: General Safety Instructions

    Accessories ....................... 2-5 Shutting Down ......................2-5 Safety Instructions on the Device Housing ............... 2-5 Mains Connection ....................2-5 Input Voltage and Current ..................2-5 Maintenance ......................2-6 Indoor Use ......................2-6 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 22 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 23: Introduction

    Improper use shall void all warranty. Warranty • The warranty period for fault-free operation is limited to 2 years from the date of purchase. • The warranty period for accuracy is 2 years. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 24: Electrical Connections

     and the protective earth of the measuring circuit. esn070.eps Figure 2-1. Binding Post Connection MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 25: Risks During Operation

    MAINS 85 - 264 V / 47 – 440Hz / 120 – 300 V  Mains connection must conform to these ranges/values 40 VA (NORMA 4000) and 65 VA (NORMA 5000) Maximum power consumption Input Voltage and Current XW Warning To avoid possible electric shock or personal injury: VOLTAGE INPUTS MAX 1000 V CAT II to .

  • Page 26: Maintenance

    NORMA 4000/5000 Operators Manual Maintenance No internal parts are user serviceable. Always use a qualified service center for service. Indoor Use The device may only be used indoors. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 27 Terminals (Back) ...................... 3-3 Operating Controls and Display ................3-4 Navigation and Measuring Keys ................3-5 Navigation through Display ................. 3-6 Overview of Function Keys .................. 3-6 Functions ........................3-7 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 28 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 29: Design And Functions

    About this Chapter About this Chapter This chapter provides an overview of the terminals, ports and interfaces of the Fluke NORMA 4000/5000 Power Analyzer (referred to throughout as “the Power Analyzer”). It also includes a list of display and operating devices and a brief introduction to the basic functions of the unit.

  • Page 30: Operating Controls And Display

    Information row Status display for channels 1 to 6 (including measuring range, coupling, and modulation bar); menu items Current Channel Setup and Voltage Channel Setup Menu bar with menu items MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 31: Navigation And Measuring Keys

    Print Show power, current, voltage Save Select channel Vector display Show totals of all channels Frequency analysis Esc: cancel, up one menu level Cursor keys: up, down, left, and right MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 32: Navigation Through Display

    Adjust scales of axes (with cursor keys)  View electrical work reference power or recuperated power  Clear Set electrical work integration to zero ∫ Start Start electrical work integration  Stop Stop electrical work integration MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 33: Functions

    When extending the range using third-party shunts or clamp, the extra errors due to these devices should be considered. The device allows for simultaneous measuring in up to six channels. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 34 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 35: Startup

    Chapter 4 Startup Title Page Taking Inventory ....................... 4-3 Installation and Switching On ................... 4-3 Installation ......................4-3 Switching Device On .................... 4-3 Switching Device Off ................... 4-4 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 36 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 37: Taking Inventory

    1. Connect the Analyzer to the power (mains) socket, using the power cable. 2. Set the power switch on the back of the housing to I (on). The Analyzer is now ready for operation. The following start screen displays. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 38: Switching Device Off

    1. Toggle the power switch in the back of the housing to O (off). 2. If the Analyzer is not to be used for a prolonged period of time, disconnect the plug from the mains (power) socket. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 39: Connection To Circuits

    Measurement with Voltage and Current Transducer .......... 5-11 3-Phase Measurement (W3) ..................5-13 Direct Connection ....................5-13 Measurement with Shunt ..................5-14 Measurement with Voltage and Current Transducer .......... 5-15 Measurement with Star Point Adapter ..............5-17 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 40 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 41: Before You Begin

    To ensure that the measured values are indicated correctly, connect the phase to HI so that the energy flow is from HI to LO. 4. Connect the circuit to the power supply. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 42: Overview

    NORMA 4000/5000 Operators Manual Overview The Fluke NORMA 4000/5000 Power Analyzer offers the following options for connection: • 1-phase measurement • Aron circuit (W2) • 3-phase measurement (W3) Note When connecting a 4-channel device for electrical efficiency analysis, the 3-phase power cables for this measurement should be connected to the measuring channels 1 to 3, so that the efficiency can be calculated and displayed directly on the Power Analyzer.
  • Page 43 EXT.SHUNT EXT.SHUNT 10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V CATII TO esn009a.eps Figure 5-2. Phase Measurement-Current Input and Load MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 44: Measurement With Shunt

    Where the current to be measured exceeds the rating of the direct current connection, an external triaxial shunt should be used, see Figure 5-3. Fluke triaxial shunts are recommended as they provide high accuracy across the full frequency range. Standard linear shunts may produce excessive errors due to the possible presence of high frequency that components experience with electronic loads.

  • Page 45: Measurement With Voltage And Current Transducer

    Connection to Circuits 1-Phase Measurement Note In Figures 5-3, 5-6, and 5-9, Fluke recommends using MCS measuring leads for triaxial shunts and MCP leads for planar shunts. Triaxial shunts are equipped with guard connectors in the plugs and planar shunts are equipped with guard sockets.

  • Page 46: Aron Circuit (2-Wattmeter Method, W2)

    Risk of injury when touching connections, internal circuits, and measuring devices that are not connected to earth ground. • Always adhere to the instructions regarding the sequence of connection (see Chapter 5, “Connecting Sequence”). MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 47 EX T.SHUN T 10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V C ATII TO esn012.eps Figure 5-5. Aron Circuit-Direct Measurement MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 48: Measurement With Shunt

    EX T.SHUN T 10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V C ATII TO esn013.eps Figure 5-6. Aron Circuit-Shunt Measurement 5-10 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 49: Measurement With Voltage And Current Transducer

    Risk of injury when touching connections, internal circuits and measuring devices that are not connected to earth ground. • Always adhere to the instructions regarding the sequence of connection (see Chapter 5, “Connecting Sequence”). 5-11 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 50 10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V C ATII TO esn014.eps Figure 5-7. Aron Circuit-Voltage and Current Transducer Measurement 5-12 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 51: 3-Phase Measurement (W3)

    PROBE EXT.SHUNT EXT.SHUNT 10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V CATII TO esn015.eps Figure 5-8. 3-Phase Measurement-Direct Connection 5-13 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 52: Measurement With Shunt

    EX T.SHUN T 10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V C ATII TO esn016.eps Figure 5-9. 3-Phase Measurement with Shunt 5-14 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 53: Measurement With Voltage And Current Transducer

    Risk of injury when touching connections, internal circuits and measuring devices that are not connected to earth ground. • Always adhere to the instructions regarding the sequence of connection (see Chapter 5, “Connecting Sequence”). 5-15 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 54 Or, it might be connected to the star point of a wye-connected load. • Or, it might be connected to earth if the internal star point of the power system is connected to earth also. 5-16 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 55: Measurement With Star Point Adapter

    10 V max 10 V max CURRENT CURRENT 10 A max 10 A max ALL INPUTS MAX 1000V CATII TO esn078.eps Figure 5-11. 3-Phase Measurement with Star Point Adapter 5-17 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 56 NORMA 4000/5000 Operators Manual 5-18 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 57: Simple Measurement

    Chapter 6 Simple Measurement Title Page About this Chapter ....................6-3 Connection to Circuits ....................6-3 Configuration ......................6-3 Measuring ......................... 6-4 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 58 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 59: About This Chapter

    The settings for the factory configuration 1:W3 are as follows: • Low-pass filter on and set to 100 Hz • Average time set to approximately 300 ms, depending on the measured frequency • Synchronization source is U1 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 60: Measuring

    300 ms of configuration 1:W3, and the new average time is displayed (for example: 309.9 ms at 22.585 Hz, corresponding to seven periods). MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 61: Configuration

    Manual Range Adjustment (Range) ............... 7-15 Configure Scale ....................7-15 Configure Coupling .................... 7-16 Configure Filter ....................7-17 Voltage Channel Setup ..................7-17 Switch Current Input to External Input (BNC) ............7-18 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 62 Integration Setup ....................7-19 Select Integration Value ..................7-21 Configure Status ....................7-21 Configure Start ....................7-22 Configure Stop ....................7-23 Save Configuration ....................7-23 Delete Configuration ....................7-24 Undersampling and Aliasing................... 7-24 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 63: Set Up For Measuring

    Current channels 1 through 6 Voltage Channel Setup Voltage channels 1 through 6 Motor / Generator Setup PI1 process interface inputs Analog Output Setup PI1 process interface outputs Integration Setup Integration function / energy MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 64: Five Steps

    This screen shows the basic information about the Power Analyzer: System Device type and sample rate Phases Type and number of equipped power phases Options Equipped interfaces and options Serial Serial number Version Firmware version MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 65: Load Configuration

    Note The actual selected interface is displayed in the Information row (see Chapter 3, “Operating Controls and Display”): RS → RS232, GP → IEEE488, EN → Ethernet, US → USB MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 66: Configure External Printer

    1. Move the cursor to the field with the value you wish to change, enter the new value and confirm by pressing Enter. 2. Select the settings and confirm by pressing Enter. The applied settings are shown in line Printer. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 67: Configure Rs 232

    1. On the connected PC, call up the Device Manager and open the dialog showing the settings for the serial port. 2. Adjust these settings to those of the Power Analyzer. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 68: Configure Gpib Address

    VNC® is a widely used protocol to show a device screen on a remote computer and control it by keyboard and mouse. VNC is a registered trademark of RealVNC Ltd. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 69: Configure Average Time And Synchronization

    Timing & Sync Setup Move the cursor to menu item Timing & Sync Setup and press Enter. The “Timing & Sync Setup” menu is displayed. The value in column Tavg[s] is highlighted. esn020.gif MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 70: Set Average Time

    A window with a numerical entry field is displayed. 2. Enter the first digit of the average time and confirm by pressing Enter. Repeat the above step for the other digits. esn021.eps 7-10 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 71: Select Synchronization Source

    By increasing the trigger level, the level of the average is also increased. If there are several positive slopes in the zero crossing, a higher modulated signal can be triggered. 7-11 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 72: Select Slope Direction

    3. To deactivate output, select OFF. 4. Confirm by pressing Enter. The entered value is shown in column SyOut. 5. Save the configuration settings by pressing the SAVE function key. 7-12 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 73: Adjust Date And Time

    Prior to each measurement, you must configure the device inputs (channels). The following example explains the configuration procedure for current channel I1: The other current and voltage channels can be configured in the same way. 7-13 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 74: Current Channel Setup

    30 mA ...10 A Measuring range (in ampere or volt) 30 mV ... 10 V Scale Scale factor and A/V ratio Scale for external probes/converters Coup Coupling Filter Filter activated ... deactivated 7-14 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 75: Configure Input Range

    If you intend to use a shunt or a probe, you must adjust the scale for the output of the measuring signal. Note The correct parameter settings are shown on the shunt or probe type plate. 7-15 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 76: Configure Coupling

    The settings are shown in column Coup. 3. If you wish to configure all three current channels in this way, press Set All. 4. Save the configuration settings by pressing the SAVE function key. 7-16 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 77: Configure Filter

    To configure the voltage channels, proceed as described for the current channels. 1. Press function key U/I. The Voltage Channel Setup menu is displayed. esn025.gif 2. Configure voltage channels 1 to 6. 7-17 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 78: Switch Current Input To External Input (Bnc)

    Auto range is now enabled. Configure Scale If you intend to use a shunt or a probe, you must adjust the scale for the output of the measuring signal. 7-18 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 79: Integration Function Configuration

    When the Power Analyzer is switched on; the start screen is displayed. 1. Press function key WAV. The integration symbol is displayed in the assignment bar for function keys. 7-19 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 80 2. Press the softkey ∫. Integration symbol is displayed in the menu bar. 3. Move Cursor to ∫ display and press Enter. The Integration Setup menu is displayed. esn028.gif 7-20 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 81: Select Integration Value

    The integrations function is now enabled. If you want to disable it, select OFF and press Enter to confirm. 2. Save the configuration settings by pressing the SAVE function key. Note The integration function is enabled (ON) in the factory configuration 1:W3. 7-21 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 82: Configure Start

    Date and time for start is taken from the clock in the unit. Correct the date and time of the unit before you start the integration calculation (chapter 7 “Adjust Date and Time”). 7-22 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 83: Configure Stop

    10:USER, is displayed in the menu item. W2 configurations are marked as User2. At the next startup of the device, the last saved and loaded configuration is applied by default. 7-23 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 84: Delete Configuration

    To operate in the “undersampling mode,” the anti-aliasing filter must be turned OFF at the current and voltage channel (see the earlier section “Configure Current and Voltage Channels” in this chapter). 7-24 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 85: Measuring Process

    Adjust Zero ....................8-18 Recorder View ....................8-18 Harmonic Analysis ....................8-19 FFT Mode ......................8-21 Adjust Scale ....................8-21 View Details of a Measured Value ..............8-22 Set Frequency Range ..................8-22 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 86 Integration Function/Electrical Work ..............8-31 Save and Print Measurements ................. 8-33 Save Measurements .................... 8-33 Print Measurements .................... 8-33 VNC Remote Operation ..................8-33 Introduction ......................8-33 VNC Device Support ..................8-33 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 87: Introduction

    Introduction Introduction The Fluke NORMA 4000/5000 Power Analyzer is designed for the measuring of currents and voltages for up to three different channels. The Power Analyzer calculates rms values, real, apparent and reactive power, and other derived values. The accuracy is not affected by the wave form, frequency, or phase shift.

  • Page 88: Measure Voltage, Current And Power

    1. Press measuring keys 1...n to view the measured values of the respective channel. 2. Press function key Detail. Details regarding the voltage values for channel 2 are shown in the following example. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 89 Detailed current values are displayed. The equivalent parameters to those shown above for voltage are displayed. 4. Press function key Detail again. Detailed power values for channel 2 are shown. esn032.gif MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 90 Angle between U2 and I2 5. Press function key Detail again. Detailed phase-to-phase voltages are displayed. esn033.gif 6. To return to the measured values for channel 2, press function key Detail again. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 91: View Totals Of All Measured Values

    1 and channel 2 only. Channel 3 operates independently. esn034.gif 2. Press measuring key Σ again. The totals of the measured values of the second three channels are displayed (P channel 4-6). esn035.gif MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 92: View Efficiency

    Efficiency Setup screen, press Config (F5). esn088.gif To view the variables, press Config (F5) again. Each of the four variables shown are selectable from the list of active power values. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 93: Compare Measured Values

    Using the WAV function key, the comparative display switches from voltage to current and power, showing the respective values of all three channels. 1. Press measuring key WAV. The measured voltages and phase-to-phase voltages are displayed. esn037.gif MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 94 Description ... P Power at channels 1 to 3 λ ... λ Power factors at channels 1 to 3 To select channels 4 to 6, repeatedly press key WAV. 8-10 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 95: View Fundamental Values

    1. Press measuring keys Σ or 1...n and WAV to call up the desired values, for example values measured at channels 3. 2. Press function key rms/h01. Detailed measured values in connection with the fundamentals at channel 3 are shown. 8-11 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 96 Harmonic content (according to DIN) 2 hc Fundamental content 2 fc 4. Press function key Detail twice. Details of the power of the fundamental at channel 3 are shown. 8-12 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 97: User-Defined Screen View

    3, 6, or even 9 values displayed on one screen. View User-Defined Screen 1. Press function key User. The display shows the user defined screen. esn043.gif 8-13 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 98: Select Numeric Values

    6. Press Esc to leave the User-Defined Screen configuration. esn044.gif Note You can configure and display up to nine variables (values). To change the user defined display size, see the next section. 8-14 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 99: Change User-Defined Display Size

    After having selected a channel and the relevant measured values, you have the option to change to different view modes where the parameters are shown in the form of numerical values, vector graphs or oscilloscope graphs. 8-15 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 100: Numerical Display

    The scale of the vector in the vector diagram is adjustable. 1. To automatically optimize the scale of the graph, press function key Default. The scale is set to the measurement range. 8-16 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 101: Oscilloscope Curves

    The measured values are shown in the form of oscilloscope curves. esn047.gif 3. To view the details regarding a measured value, press function key Detail. The display shows the measured voltage. esn048.gif 8-17 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 102: Adjust Scale Of Axes

    1. Press measuring keys Σ or 1...n and WAV to call up the values, for example, current measured at channels 1 to 3. 2. Press measuring key Recorder. The display shows a recording of the measured values. 8-18 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 103: Harmonic Analysis

    1. Press measuring keys Σ, 1…n or WAV to call up the desired values to be analyzed. 2. Press measuring key Frequency Analysis. The frequency analysis is shown in the following screen. esn102.eps 8-19 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 104 Synchronized FFT compliant to EN61000-4-7 Ed 2.1 standard (rectangular window) Parameters: Select # of cycles per analysis interval; select grouping method Result: Raw harmonic bins or grouped integer harmonics and / or inter-harmonics Requirement: Valid synchronization frequency 8-20 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 105: Fft Mode

    The scale of the graph changes from linear to logarithmic or vice versa (here: change to logarithmic). esn104.eps 2. To change the scale of the X-axis, press function key zoom. 8-21 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 106: View Details Of A Measured Value

    The default frequency range is set to a maximum of half the sampling frequency. Note For signals with a lower frequency (for example, 10 Hz), the frequency range must be adjusted; otherwise, the measurements would be inaccurate. 8-22 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 107 4. Select a value, using the cursor keys, and press Enter. 5. Press Esc to return to the measurement screen. The frequency analysis is carried out up to the selected value, and the result is displayed. 8-23 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 108: Set View Mode

    2. Alternatively, use function key Config to select mode DFT in the harmonics setup screen. Afterwards, press Esc to return to the measurement screen. Note Modes FFT and DFT share the same frequency range setting. 8-24 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 109 Order H 3 3 x fundamental frequency Order … n x fundamental frequency f[1] Fundamental frequency 3. Press function key scroll to enable scrolling and paging through the table. 8-25 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 110: View Harmonics Spectrum Relative To Fundamental In

    View Harmonics Spectrum Relative to Fundamental in % The harmonics spectrum can be viewed in percentages of fundamental H01. Note This view is important for the analysis of the input signal. 8-26 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 111 3. In table view, press function key F1 to step through the available view modes: → % relative view, values are shown in % of H01 → abs absolute view, values are shown in RMS … 8-27 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 112: Std Harmonic Mode (En 61000-4-7 Ed 2.1 Compliant)

    THDs are calculated from harmonics or groups 2…40 according to selected grouping mode, shown only in table view (relative % of H01) (TIDS and THDT are not defined in EN standard). 8-28 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 113 Harmonic and inter-harmonic subgroups kHz … Note The grouping mode may be changed even in HOLD mode and therefore allows different views on the data from the same single interval. 8-29 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 114 Abort scaling and restore previous setting 8. Use function key → table to switch to numerical table view and see THD values on the bottom of the screen. esn115.eps 8-30 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 115: Integration Function/Electrical Work

    A key for the calculation of the electrical work is shown in the assignment bar for function keys. esn059.gif 2. Press function key ∫. The assignment bar shows the functions used for the calculation. esn060.gif 8-31 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 116 5. Press function key ∫. The totals of the output power are shown. esn062.gif 6. To return to the overview of measured values for the selected channel, press function key ∫ again. 8-32 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 117: Save And Print Measurements

    Therefore it only supports some basic features of VNC: Protocol version: Security/Encryption: none Device name: NORMA Power Analyzer Screen size: 320 x 240 8-33 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 118 Numeric screen R, r Recorder screen O, o Oscilloscope screen F, f Harmonics screen V, v Vector screen H, h Hold / Run M, m Memory trigger P, p Print 8-34 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 119 • Items in popup list boxes • Buttons on the calculator for numeric input • Measurement screen area to bring up menu for view type select (numeric, oscilloscope …) 8-35 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 120 NORMA 4000/5000 Operators Manual 8-36 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 121: Norma Process Interface (Optional)

    Input Configured as Analog Input ..............9-12 Input Configured as Digital Input ..............9-12 Four Digital Inputs for the Detection of the Sense of Rotation ......9-12 Four Outputs (Analog) ..................9-12 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 122 NORMA 4000/5000 Operators Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 123: Process Interface

    Four inputs for sensing rotation; only for motor analysis with digital speed inputs; corresponding inputs, that is N1/D1 share a LO port AGND Analog ground input A1...A4 Four analog outputs MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 124: Measured Values

    • Menu item PI must be shown in the menu bar If the Power Analyzer is equipped with a process interface, menu item PI is shown automatically in the menu. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 125: Select Motor

    To configure the system for motor 1, go to the “Configure Torque Sensor” section. • To configure another motor, press Next ... until the respective motor code (M2, M3 or M4) is displayed. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 126: Configure Torque Sensor

    Drv1 for motor 1: Column Settings Description Motor Type Generator PPairs 1 ... 999 Number of pole pairs Pref P ... P3 Reference power for efficiency calculation MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 127: Configure Other Motors

    10 mV/V for a measured voltage of 220 V and an output of 2.2 V. 1. Press function key A-Out. The Analog Output Setup menu is displayed. esn065.gif MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 128: Measuring With The Process Interface

    If the Power Analyzer is equipped with a process interface, menu item PI is shown automatically in the menu. View Measured Electric Values 1. Press the  measuring key (numerical display). The measured values of channel 1 are shown. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 129: View Mechanical Values

    3. Press function key el/mech. View Mechanical Values The measured values of motor 1 are shown in the following screen. esn067.gif Press measuring keys 1...n to view the values of the respective inputs. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 130: View Raw Values

    Motor 2 torque Motor 1 speed Gp6 ... Motor 2 speed View Torque – All Motors 1. Press measuring key WAV. The torque values for motors 1 to 4 are shown. 9-10 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 131: View Speed - All Motors

    Measuring with the Process Interface esn069.gif 2. Press key WAV again. View Speed – All Motors The rotational speeds of motors 1 to 4 are shown in the screen that follows. esn070.gif 9-11 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 132: Process Interface - Technical Data

    ±8000 counts for ±10 V, 1 count ≈ 1.25 mV Rise time 10 to 90 %: approximately 10 ms Response time to ±0.2 %: 25 ms to ±1.0 %: approximate 20 ms 9-12 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 133: Measured Values Computation

    Measured values per phase x (channel x – values are indexed x) ......10-3 Total values (sum or average) ................. 10-4 Frequency Analysis ....................10-6 Optional Process Interface Formulas ..............10-7 10-1 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 134 NORMA 4000/5000 Operators Manual 10-2 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 135: Measured Values Per Phase X (Channel X - Values Are Indexed X)

    Phase voltage values are unavailable. Phase shift of fundamental ϕ U H01 ϕ I H01 to reference (sync)  ⋅ ⋅ ⋅ Active Power 10-3 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 136: Total Values (Sum Or Average)

    W2 Average value of the ph-to-ph voltages (RMS, RM, M, RMC, H01) Average value of the phase currents (RMS, RM, M, H01) Totals (sum) of power values 10-4 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 137 The phase shift ϕ for broad-band signals is in fact an artificial result. It conforms to a physical angle for sinusoidal signals only. Often, it makes sense to use ϕ , the phase shift of the fundamental voltage to the fundamental current, instead. 10-5 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 138: Frequency Analysis

    [rms] or [% fundamental] Harmonic Subgroups [rms] or [% fundamental] sg,h Centered Inter-harmonic Subgroups [rms] or [% fundamental] isg,h Harmonic and Inter-harmonic Subgroups Y [rms] or [% fundamental] sg,h , isg,h 10-6 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 139: Optional Process Interface Formulas

    Speed (analogue input):   speed in 1/min scale factor for speed in rpm/V zero offset for speed in V analogue speed signal at measuring input averaging interval in seconds 10-7 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 140 η = η = Efficiency (MOT) (GEN) η efficiency el. power reference mechanical power − ∗ ƒ ∗ Slip SL = ƒ number of pole pairs el. frequency [Hz] 10-8 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 141: Technical Data

    Technical Data Technical Data Fluke NORMA 4000/5000 Chapter 11 Technical Data Title Page Technical Data Fluke NORMA 4000/5000 ............11-3 General Technical Data ................... 11-3 Reference Conditions ..................11-3 Ambient Conditions ..................11-3 Standards ......................11-3 Interfaces ......................11-4 Data Memory ....................11-4 Configuration Memory ..................
  • Page 142 NORMA 4000/5000 Operators Manual 11-2 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 143: Technical Data Fluke Norma 4000/5000

    Technical Data Technical Data Fluke NORMA 4000/5000 Technical Data Fluke NORMA 4000/5000 General Technical Data NORMA 4000 NORMA 5000 Compact system With 1 to 3 phases up to 6 phases Continuous averages Interface Commands SCPI Vers.1999.0; legacy emulation of D5255 selectable...

  • Page 144: Interfaces

    U max 20 Vrms, 30 Vpk continuous 30 Vrms, 50 Vpk, 10 seconds maximum Common mode rejection 120 dB at 100 kHz Temperature coefficient 0.05 x intrinsic uncertainty / K 11-4 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 145: Frequency And Synchronization

    Technical Data Technical Data Fluke NORMA 4000/5000 Frequency and Synchronization Range 0.2 Hz to Sample rate (102 kHz / 341 kHz / 1 MHz) Measurement error ±0.01 % rdg Channel selection all channels U/I, or external input Low-pass filter optionally integratable, with 3 different limit frequencies...
  • Page 146 0.03 0.01 V = 100 % 45...65 Hz I direct I = 100 % 0,06 0,07 0,10 0,21 0,50 0,08 0,10 0,14 0,29 0,70 0,24 0,28 0,38 0,70 1,62 11-6 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 147 Technical Data Technical Data Fluke NORMA 4000/5000 esn200.eps Figure 11-1. Active Power (PP64 – AAF on 45 to 65 Hz) esn201.eps Figure 11-2. Active Power (AAF off - 45 to 65 Hz - V=100%) Active Power (AAF on - Magnitude V & I 100%)
  • Page 148 PP 42 PP 5x PP 64 PP 42 PP 5 PP64 0.01 100k Figure 11-5. Uncertainty in % of U & I vs. Frequency (rdg/rng = 100%, antialiasing filter off) 11-8 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 149: Block Diagrams

    Technical Data Block Diagrams Block Diagrams Overview Option: RAM Graphic Display Data Interface Settings Keyboard Data Processor Settings Option: Data I/O-Interface Logic Settings Flash-ROM esn073.eps 11-9 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 150: Voltage Channels

    ...int. Shunt 2 Data I 0,01 ...int. Shunt 3 Ext. 10 A Shunt 0,03 V 0,1 V 0,3 V 10 V Settings Settings I Trigger level Slope Filter esn075.eps 11-10 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 151: Service And Accessories

    Instrument ....................... 12-3 Analyzer ......................12-3 Optional Equipment .................... 12-3 Standard Equipment ................... 12-3 Accessories ......................12-11 Accessories ....................... 12-11 Software ......................12-11 Service ........................12-12 General ......................12-12 12-1 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 152 NORMA 4000/5000 Operators Manual 12-2 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 153: Instrument

    IEEE 488 and Ethernet Interfaces NORMA Process IF 8 analog/pulse inputs, 4 analog outputs NORMA 5000 Printer Thermal printer for Fluke NORMA 5000 NORMA Printer Paper Printer paper for NORMA 5000 Standard Equipment A USB to Serial (RS 232) converter is supplied with the Power Analyzer. To install the driver: 1.
  • Page 154 NORMA 4000/5000 Operators Manual esn080.gif 2. Check “No, not this time.” 3. Press Next. 4. Insert the USB-to-serial-converter hardware CD. 5. Select “Install the software automatically.” 6. Press Next. 12-4 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 155 Service and Accessories Instrument esn081.gif Windows will locate and copy the appropriate driver from the CD to your system and confirm the installation. 12-5 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 156 Operators Manual esn082.gif Note The current implementation of Fluke NORMA View software is not capable of configuring the serial adapter settings (baud rate, stop bits, …) directly. This must be done manually with a Windows configuration before starting NORMA View.
  • Page 157 Service and Accessories Instrument esn083.gif 12-7 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 158 NORMA 4000/5000 Operators Manual esn084.gif 12-8 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 159 Service and Accessories Instrument esn085.gif 12-9 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 160 NORMA 4000/5000 Operators Manual esn086.gif 7. Match the settings in Windows to the configuration of your Power Analyzer. This information is in the General Setup screen. 12-10 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 161: Accessories

    • Plug-in "Motor" supports the motor process interface • Plug-in "Storage" Data memory functions, DSO • Plug-in "Harmonic" (FFT, Harmonic analysis) LabView Driver Driver for interfacing the NORMA 4000 and 5000 to a National Instruments LabView system. 12-11 MyFlukeStore 1.888.610.7664 www.

This manual is also suitable for:

Norma 5000

Table of Contents
