- Page 1 TECHNICAL MANUAL Technical manual for two-family Kit Art. KAE5062A...
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. -
Page 3: Package Contents

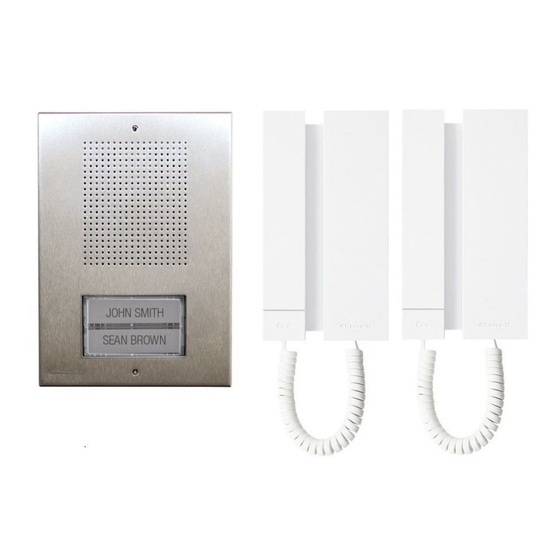

Package Contents This manual includes information regarding system configuration and customisation which may be perceived as necessary by the installer. KAE5062A 2702W 1200 2702W ET5002 ET5002 - External unit ×1 ×1 ×1 2702W - Telephone 1200 - Transformer ×2 ×1... -
Page 4: Transformer Art. 1200
Transformer Art. 1200 Description Transformer with 230V primary, 12V AC / 15 VA secondary winding for continuous use. Dimensions: 53x95x65 mm (3 DIN modules). 230 V~ 12 V~ 1. 230 V digital input. 2. Secondary 12 V AC output. Disconnect the power supply before carrying out any maintenance procedures. The electrical system of the building must be fitted with an omnipolar mains switch with a contact opening of at least 3 mm, which is capable of isolating the power supply of the device. -
Page 5: External Unit Art. Et5002
External unit Art. ET5002 Description External unit complete with 2 call buttons, 1 wall bracket and 1 flush-mounted box. Dimensions 95×135×26.5 mm (including wall bracket). 1. Surface-mounted wall bracket Art. ET9160. A flush-mounted box Art. ET9150 is also available. 2. Stainless steel front faceplate. 3. -
Page 6: Technical Characteristics Art. Et5002
Technical characteristics Art. ET5002 MAIN SPECIFICATIONS Type Single-plate entrance panel Type of finish Stainless steel front faceplate Audio system Yes Flush-mounted Yes Wall-mounted Yes Power supply 12V Maximum current absorption (mA) 267 Clamps ~* ~ 2 3 4 S1 S2 Buttons to call Yes Total buttons 2 Microphone volume control Yes... -
Page 7: Installation
Installation 9,5 cm ET9160 ET9150 Replacing the nameplate holders... -
Page 8: Internal Unit Art. 2702W
Internal unit Art. 2702W Description MINI series door-entry phone for traditional systems, with electronic call, handset, key button and supplementary button for additional services. Call volume and privacy mode can be set via a 3 position selector switch; activation of privacy mode is signalled by a red indicator. -
Page 9: Technical Characteristics Art. 2702W
Technical characteristics Art. 2702W MAIN SPECIFICATIONS Audio system Yes Audio/video system Yes Wall-mounted Yes Desk base-mounted Yes Hands-free function No Induction loop function No Product colour White Total buttons 2 LED signaling (No.) No FUNCTIONS Actuator control function Yes Switchboard call function No Panic call No Intercom function No Selective intercom call No... -
Page 10: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 11: Operating Distances And Standard Diagram
Operating distances and standard diagram Wiring diagram for standard system and 1 additional door-entry phone connection variant 2702W 2702W S 2 3 4 P 1 S 2 3 4 P 1 NO C NO C 24 C DC 24 C DC 100 mA 100 mA 1200... - Page 12 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
