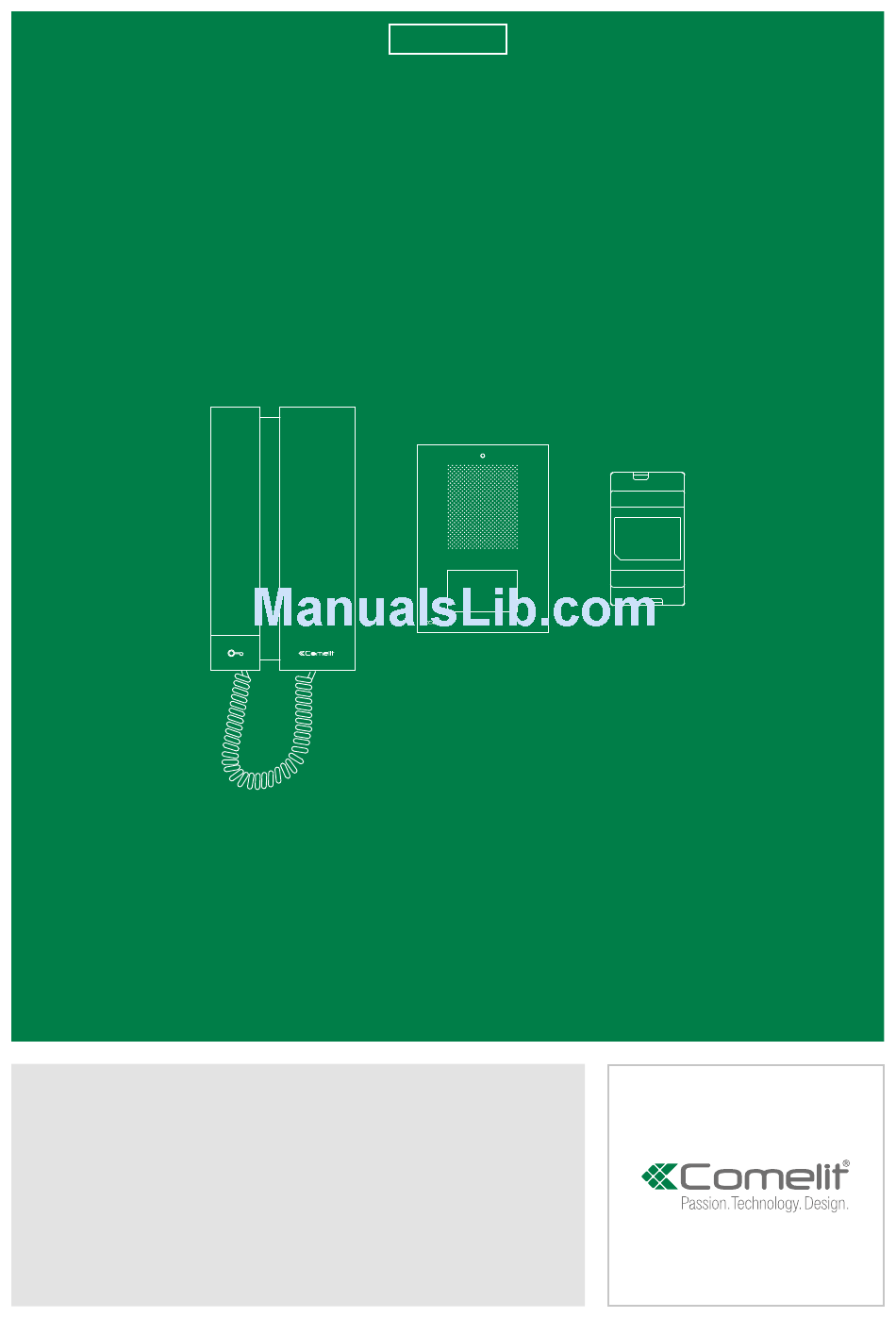

- Page 1 TECHNICAL MANUAL Single-family Kit Art. KAE5061...
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. -
Page 3: Package Contents

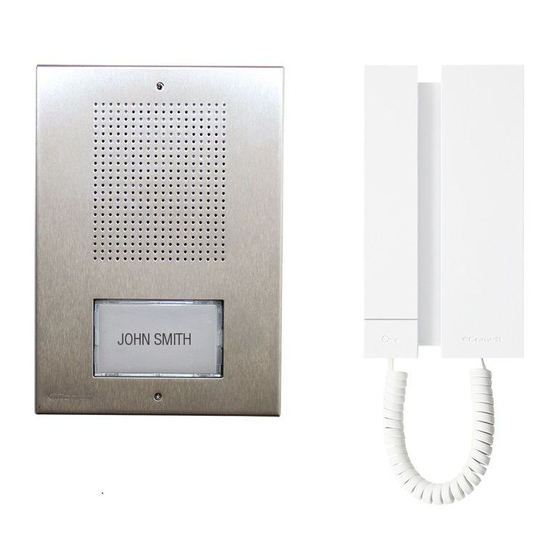

Package Contents This manual includes information regarding system configuration and customisation which may be perceived as necessary by the installer. KAE5061 2701W 1200 ET5001 ET5001 - External unit ×1 ×1 ×1 2701W - Telephone 1200 -Transformer ×1 ×1... -
Page 4: Transformer Art. 1200
Transformer Art. 1200 Description Transformer with 230V primary, 12V AC / 15 VA secondary winding for continuous use. Dimensions: 53x95x65 mm (3 DIN modules). 230 V~ 12 V~ 1. 230 V digital input. 2. Secondary 12 V AC output. Disconnect the power supply before carrying out any maintenance procedures. The electrical system of the building must be fitted with an omnipolar mains switch with a contact opening of at least 3 mm, which is capable of isolating the power supply of the device. -
Page 5: External Unit Art. Et5001
External unit Art. ET5001 Description External unit complete with 1 call button, 1 wall bracket and 1 flush-mounted box. Dimensions 95×135×26.5 mm (including wall bracket). 1. Surface-mounted wall bracket Art. ET9160. A flush-mounted box Art. ET9150 is also available. 2. Stainless steel front faceplate. 3. -
Page 6: Installation
Installation 9,5 cm ET9160 ET9150 Replacing the nameplate holders... -
Page 7: Internal Unit Art. 2701W
Internal unit Art. 2701W Description Audio internal unit complete with 1 key button. Dimensions 105×190×28 mm. 1. Handset. 2. Key button. 3. Speaker. 4. Audio hook. Do not press and hold the audio hook while the handset is lifted 5. Terminal block: Electronic call signal input Loudspeaker input Microphone output... -
Page 8: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 9: Operating Distances And Standard Diagram
Operating distances and standard diagram Wiring diagram for standard system and 1 additional door-entry phone connection variant 2701W S 2 3 4 P 1 1200 2701W 2701W 12V~ 230V~ 2 3 4 2 3 4 ET5001 Local lock-release button. EK5/01S Wiring diagram with second external unit 2701W 2 3 4... -
Page 10: Operating Distances
Operating distances 1 mm² 1,5 mm² 1,5 mm² 200 m 200 m 80 m 0,8 mm² 1 mm² 1 mm² 150 m 150 m 30 m 0,5 mm² 0,8 mm² 0,8 mm² 50 m 50 m 10 m C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w .
