- Page 1 TECHNICAL MANUAL Technical manual for two-family Kit Art. KAE5062...
-
Page 2: Table Of Contents
Do not tamper with the internal elements offering protection against short circuits and overcurrents. • All the equipment must only be used for the purpose it was designed for. Comelit Group S.p.A. declines any responsibility for improper use of the apparatus, for any alterations made by others for any reason or for the use of non-original accessories or materials. -
Page 3: Package Contents

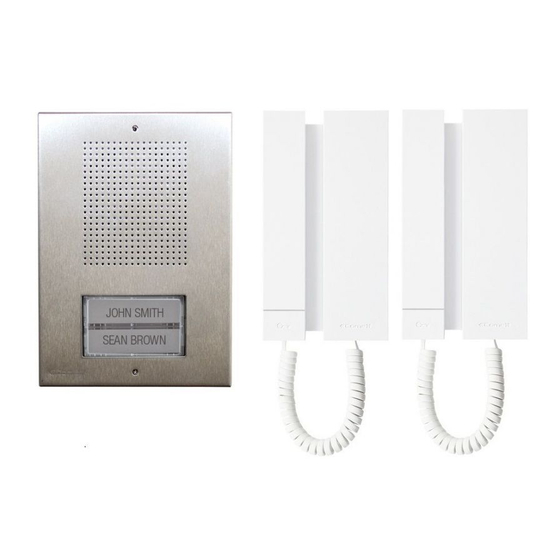

Package Contents This manual includes information regarding system configuration and customisation which may be perceived as necessary by the installer. KAE5062 2701W 1200 2701W ET5002 ET5002 - External unit ×1 ×1 ×1 2701W - Telephone 1200 - Transformer ×2 ×1... -
Page 4: Transformer Art. 1200
Transformer Art. 1200 Description Transformer with 230V primary, 12V AC / 15 VA secondary winding for continuous use. Dimensions: 53x95x65 mm (3 DIN modules). 230 V~ 12 V~ 1. 230 V digital input. 2. Secondary 12 V AC output. Disconnect the power supply before carrying out any maintenance procedures. The electrical system of the building must be fitted with an omnipolar mains switch with a contact opening of at least 3 mm, which is capable of isolating the power supply of the device. -
Page 5: External Unit Art. Et5002
External unit Art. ET5002 Description External unit complete with 2 call buttons, 1 wall bracket and 1 flush-mounted box. Dimensions 95×135×26.5 mm (including wall bracket). 1. Surface-mounted wall bracket Art. ET9160. A flush-mounted box Art. ET9150 is also available. 2. Stainless steel front faceplate. 3. -
Page 6: Installation
Installation 9,5 cm ET9160 ET9150 Replacing the nameplate holders... -
Page 7: Internal Unit Art. 2701W
Internal unit Art. 2701W Description Audio internal unit complete with 1 key button. Dimensions 105×190×28 mm. 1. Handset. 2. Key button. 3. Speaker. 4. Audio hook. 5. Terminal block: Electronic call signal input Loudspeaker input Microphone output Negative Terminal for key button 6. -
Page 8: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 9: Operating Distances And Standard Diagram
Operating distances and standard diagram Wiring diagram for standard system and 1 additional door-entry phone connection variant 2701W 2701W S 2 3 4 P 1 S 2 3 4 P 1 1200 2701W 2701W 12V~ 230V~ 2 3 4 2 3 4 ET5002 Local lock release button. - Page 10 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
