- Page 1 TECHNICAL MANUAL Single-family Kit KAE0061...
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the manuals / instruction sheets supplied with those products. -
Page 3: Package Contents

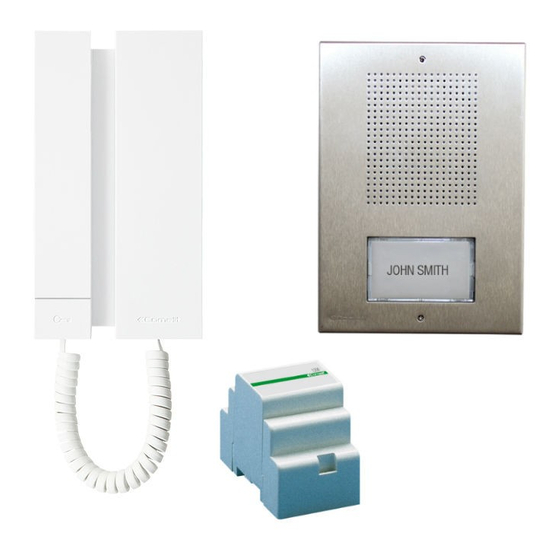

Package contents This manual includes information regarding system configuration and customisation which may be perceived as necessary by the installer. KAE0061 2712W 1200 ET0001 ET0001 - External unit ×1 ×1 ×1 2712W - Telephone 1200 -Transformer ×1 ×1... -
Page 4: Transformer Art. 1200
Transformer art. 1200 Description Transformer with 230V primary, 12V AC / 15 VA secondary winding for continuous use. Dimensions: 53 x 95 x 65 mm (3 DIN modules). 230 V~ 12 V~ 1. 230 V digital input. 2. Secondary 12 V AC output. Disconnect the power supply before carrying out any maintenance procedures. -
Page 5: External Unit Art. Et0001
External unit art. ET0001 Description External unit complete with 1 call button, 1 wall bracket and 1 flush-mounted box. Dimensions 95 × 135 × 26,5 mm (including wall bracket). 1. Surface-mounted wall bracket art. ET9160. A flush-mounted box art. ET9150 is also available 2. -
Page 6: Installation
Installation 9,5 cm ET9160 ET9150 Nameplate holders... -
Page 7: Internal Unit Art. 2712W
Internal unit art. 2712W Description Audio internal unit complete with 1 key button. Dimensions 105 × 190 × 28 mm 1. Handset 2. 3-position ringtone/Privacy mode selector: High position: Maximum ringtone volume Middle position: Medium ringtone volume Low position: Privacy mode activation (privacy mode means exclusion of the call ringtone from the external unit) 3. -
Page 8: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 9: Wiring Diagrams
Wiring diagrams Standard system 12 0 12 0 12 0 Local door-opener button Local door-opener button Local door-opener button Cut CV1 if there is a lock connected Cut CV1 if there is a lock connected Cut CV1 if there is a lock connected Using pushbutton 2 for various usages 12 0 12 0... - Page 10 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
