- Page 1 TECHNICAL MANUAL Four-family kit KAE5064...
-
Page 2: Table Of Contents
• any usage other than the intended use • non-observance of the indications and warnings contained in this manual. Comelit Group S.p.A. nonetheless reserves the right to change the information provided in this manual at any time and without prior notice Table of contents Package contents ................ -
Page 3: Package Contents
Package contents KAE5064 1200 2702W 2702W 2702W 2702W ET5100 ET9211 External unit ET9151 ET9161 2702W Internal unit 1200 Transformer ×4 ×1... -
Page 4: Transformer
Transformer Description Transformer art. 1200 with 230V primary, 12V AC / 15 VA secondary winding for continuous use. Dimensions: 53x95x65 mm (3 DIN modules). 230 V~ 12 V~ 1. 230 V digital input 2. Secondary 12 V AC output Disconnect the power supply before carrying out any maintenance procedures. The electrical system of the building must be fitted with an omnipolar mains switch with a contact opening of at least 3 mm, which is capable of isolating the power supply of the device. -
Page 5: External Unit
External unit Description ET5100 External unit with 4 call buttons (ET9211), ET9161 wall bracket and ET9151 flush-mounted box. Dimensions 95×165×26,5 mm 1. Surface-mounted wall bracket 2. Stainless steel front faceplate 3. Faceplate fixing screw holes 4. Speaker 5. Call buttons 6. -
Page 6: Installation
Installation Inserting nameplates... -
Page 7: Internal Units

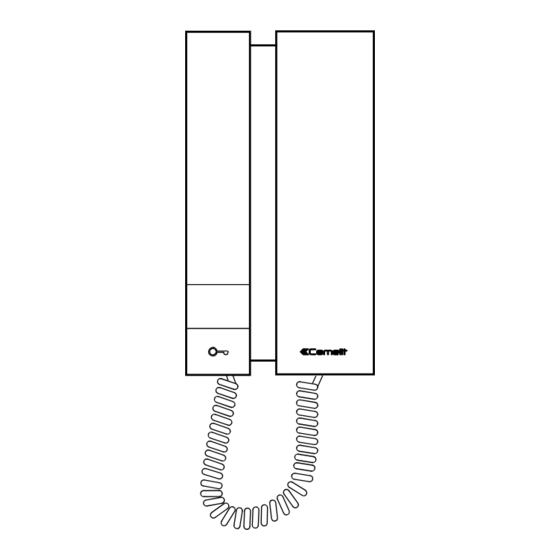

Internal units Description Audio internal unit complete with 1 key button and supplementary button for additional services. Dimensions 105×190×28 mm. 1. Handset 2. Button for additional services 3. Lock-release button 4. 3-position ringtone volume High position: Maximum ringtone volume Middle position: Medium ringtone volume Low position: Privacy mode activation Privacy mode means exclusion of the call ringtone from the external unit and switchboard 5. -
Page 8: Installation
Installation max 7cm CLACK! CLACK! -
Page 9: Operating Distances
Operating distances 1 mm² 1,5 mm² 1,5 mm² 200 m 200 m 30 m 0,8 mm² 1 mm² 1 mm² 150 m 150 m 20 m 0,5 mm² 0,8 mm² 0,8 mm² 50 m 50 m 10 m Wiring diagrams Standard system and 1 additional door-entry phone connection variant 2702W 2 3 4... -
Page 10: System Expansion: Additional External Unit And Internal Unit
System expansion: additional external unit 2702W 2 3 4 2 3 4 2702W 2 3 4 2702W 2 3 4 2702W 2 3 4 1200 1125/A 12V~ 230V~ 1200 1200 ET5100 ET5100 ET9211 ET9211 Local lock-release button EK5_03SA_RV.3... - Page 11 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
