- Page 1 TECHNICAL MANUAL Door-entry phone art. 2701W - art. 2702W...
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the manuals / instruction sheets supplied with those products. -
Page 3: Description

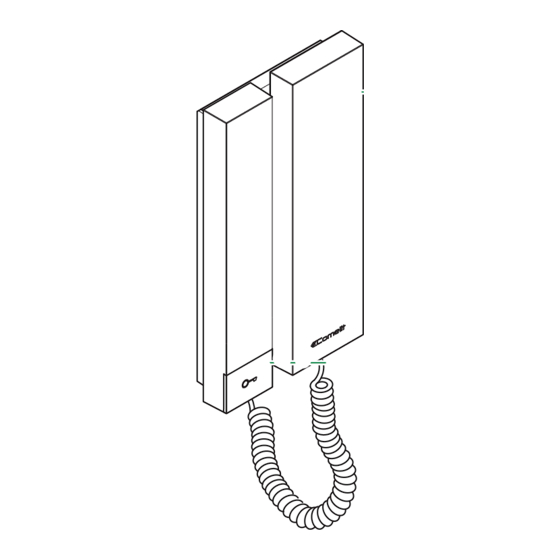

Description Door-entry phone art. 2701W MINI series door-entry phone for traditional systems, with electronic call, handset and key button. Dimensions: 105 × 190 × 28 mm 1. Handset 3. Loudspeaker 2. Key button 4. Audio hook Do not press and hold the audio hook while the handset is lifted 5. -
Page 4: Door-Entry Phone Art. 2702W
Door-entry phone art. 2702W MINI series door-entry phone for traditional systems, with electronic call, handset, key button and supplementary button for additional services. Call volume and privacy mode can be set via a 3 position selector switch; activation of privacy mode is signalled by a red indicator. -
Page 5: Technical Characteristics
Technical characteristics MAIN FEATURES 2701W 2702W System Traditional Traditional Audio system Audio/video system Wall-mounted Desk base-mounted Hands-free function Induction loop function Product color White White Total buttons LED signaling FUNCTIONS Actuator control function Switchboard call function Panic call General intercom call... -
Page 6: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 7: Connections
Connections Door-entry phone system with 2 audio port, Ikall series 2701W 2 3 4 2702W 2 3 4 1538 S3 S4 1610 33426 Local lock-release button Connect the capacitor included in the package (art.1610) as shown in the drawing below... - Page 8 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
