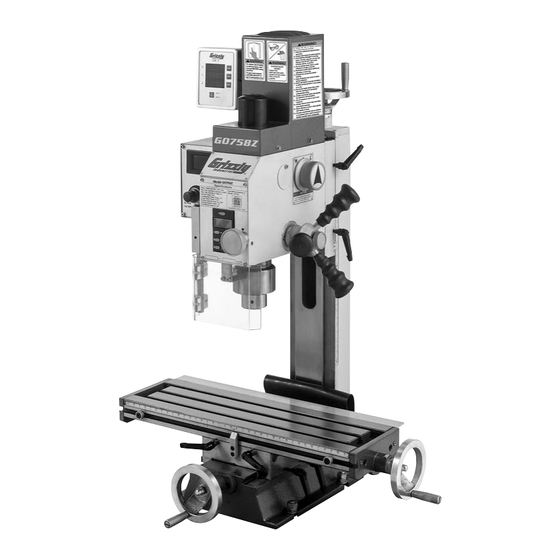

MODEL G0758Z

MILL/DRILL W/DRO

MANUAL INSERT

Model G0758Z is an upgraded version of Model

G0758 with an included X-/Y-/Z-Axis DRO.

NOTE: The column, table, and saddle on this

model have been specially machined to mount the

DRO scales. Thus, the DRO components includ-

ed with these models cannot be easily retrofitted

onto Model G0758.

: To reduce the risk of serious

injury, you MUST read and understand this

insert—and the entire Model G0758 manual—

BEFORE assembling, installing, or operating

this machine!

If you have any further questions about this

manual insert or the differences between the

Model G0758 and the Model G0758Z, contact

our Technical Support at (570) 546-9663 or email

techsupport@grizzly.com.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MANUFACTURED SINCE 02/17) #KB18652 PRINTED IN CHINA

Page 1 COPYRIGHT © JUNE, 2017 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. (FOR MODELS MANUFACTURED SINCE 02/17) #KB18652 PRINTED IN CHINA...
Page 2 CAP SCREW M5-.8 X 50 P0758Z404 X-AXIS METALLIC STRIP 10 X 480MM P0758Z418 CAP SCREW M4-.7 X 8 P0758Z405 ALUM BRACKET 30 X 480 P0758Z419 DRO POWER CORD 2W 18G 72" 1-15P P0758Z406 FLAT WASHER 4MM Model G0758Z (Mfd. Since 02/17)
Page 3 DRO Components Digital Readout Using the DRO Model G0758Z features a magnetically mounted A. DRO displays current position of X-axis, DRO (see Figure 1) for X-axis (table), Y-axis Y-axis, and Z-axis in hundredths of a millime- (saddle), and Z-axis (column) travel.
