A1X(W) Quick Start Guide

1. Installation and access

1.1 Power up

1) Plug in the power jack with DC 5V/1000mA or POE
2) It will display Welcome logo and the Status led will be lighted once.

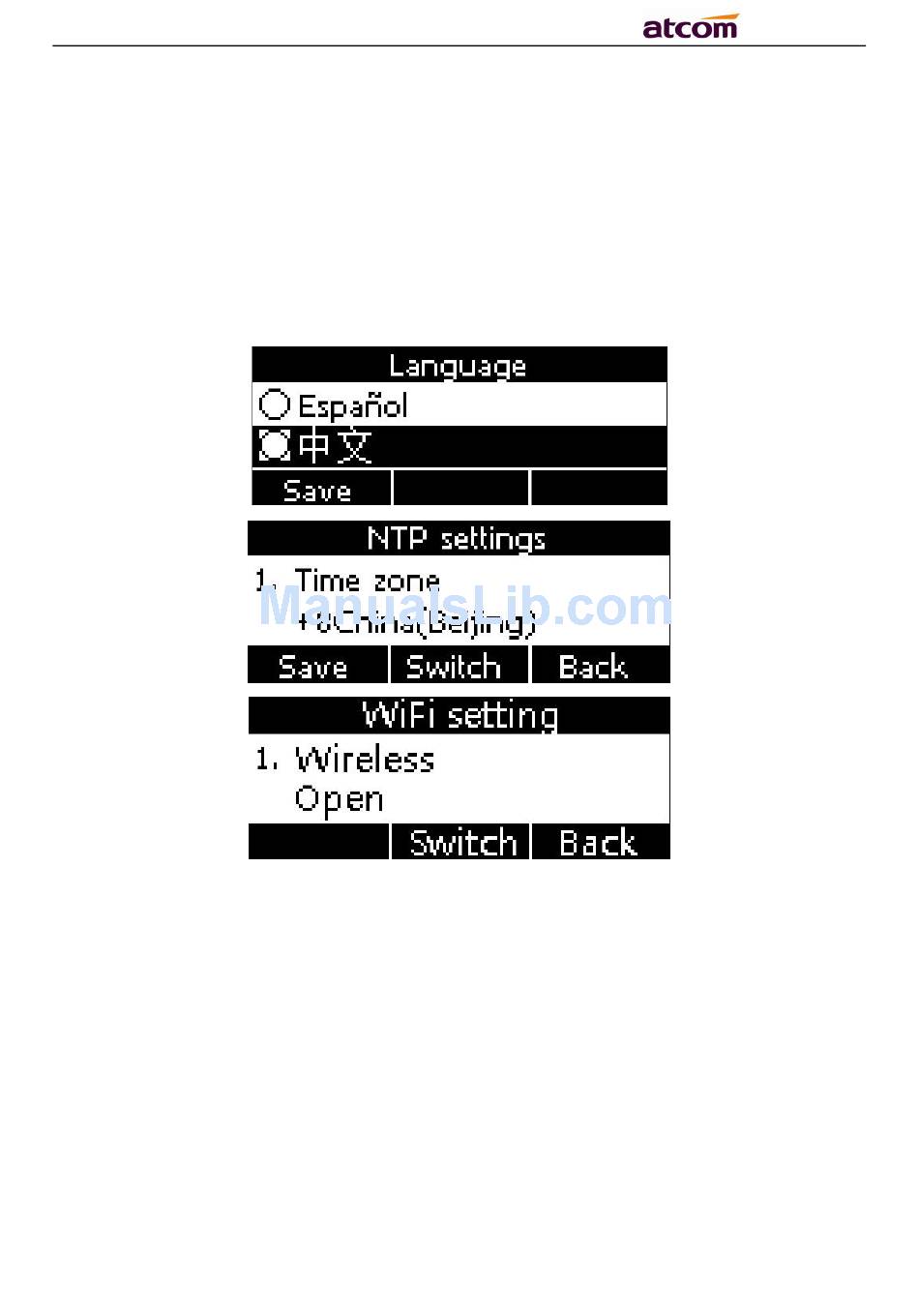

3) After absolute boot up, User can select the Language and time manually, and choose to
connect the WIFI or not in the WIFI phone.

1.2 Connection

1) Connect to network
Connect network cable:
A1X(W) is able to be connected with network via LAN port. Under the Bridge mode, other devices
(Laptop, IP phone) is able to access network via the PC port of A1X(W).
Look as below scene:
