AT800D Quick Start
AT800D Quick AT800D AT800D Quick Quick Start Start Start Guide
1 1 1 1 、Installation
Installation Installation Installation and and and and access

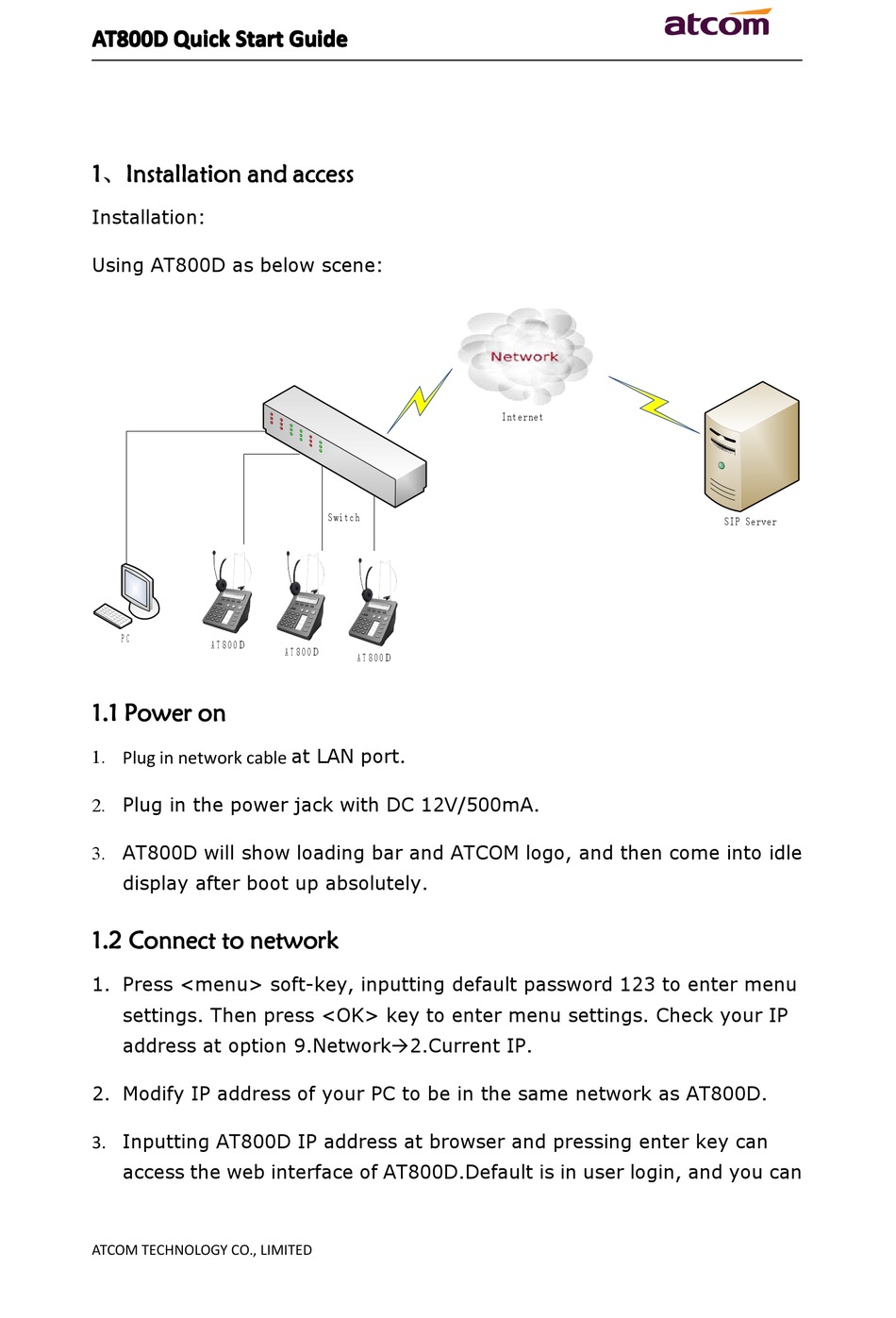

Installation:
Using AT800D as below scene:
P C
A T8 0 0D
1.1 1.1 1.1 1.1 Power

Power on

Power Power on on on
1. Plug in network cable at LAN port.
2. Plug in the power jack with DC 12V/500mA.
3. AT800D will show loading bar and ATCOM logo, and then come into idle
display after boot up absolutely.
1.2 1.2 Connect Connect Connect to to to to network network network
1.2 Connect 1.2 network
1. Press <menu> soft-key, inputting default password 123 to enter menu
settings. Then press <OK> key to enter menu settings. Check your IP
address at option 9.Network�2.Current IP.
2. Modify IP address of your PC to be in the same network as AT800D.
3. Inputting AT800D IP address at browser and pressing enter key can
access the web interface of AT800D.Default is in user login, and you can
ATCOM TECHNOLOGY CO., LIMITED
Guide
Guide Guide
access access access
S w i t c h
A T8 0 0D
A T8 0 0D
Internet
SIP Server
