- Page 1 AT-620P User Manual AT-620P User Manual ISSUE 1.2 2009-10-22 ATCOM TECHNOLOGY CO., LIMITED...
-
Page 2: Table Of Contents
AT-620P User Manual 1st、 AT-620P’s Network Features ..............4 The View ........................ 4 1、 Interfaces ......................4 2、 Electricity characteristic ................... 4 3、 Software ......................... 5 4、 Network： ......................5 5、 Management and Maintenance ..............6 6、 Protocol ........................6 ... - Page 3 AT-620P User Manual Preload Password ....................20 16、 Check the Phone’s IP ..................20 17、 5th、 Web settings ..................20 Current state ...................... 21 1、 Network ........................ 21 2、 Wan Config..................21 2.1. LAN Config ..................23 2.2. ...
-
Page 4: 1St、 At-620P's Network Features

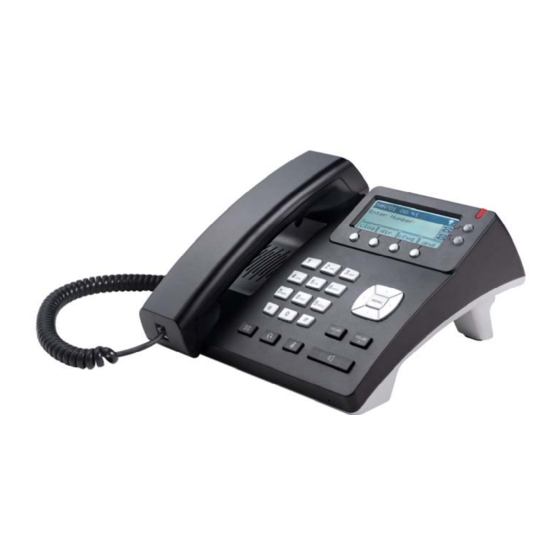

AT-620P User Manual 1st、 AT-620P’s Network Features The View 1、 Interfaces 2、 Power: Output Power: 12VDC, 500mA. WAN: RJ45 port. LAN: RJ45 port. Electricity characteristic 3、 Specialty of electric: output 12V 500mA DC The network connects: 2 RJ45 connect, a WAN, a LAN Headset jack : RJ9 jack * 2 ATCOM TECHNOLOGY CO., LIMITED... -
Page 5: Software
AT-620P User Manual Support PoE Software 4、 Sip 2.0 (RFC3261) Two lines SIP, support IAX2 STUN Jitter Buffer(200ms),VAD,CNG G.711A/u、G722、G.723、G.729 Codec G.168 compliant 96ms echo cancellation Support SIP domain，SIP authentication(none，basic,MD5）. Support inbound audio, RFC2833 and SIP info , DTMF transmission way SIP Call Forward、Call transfer、Call hold、Call waiting, 3-way talking、... -
Page 6: Management And Maintenance
AT-620P User Manual Support Network command tool: include ping, trace route, telnet Management and Maintenance 6、 Support safe mode and firmware updating under safe mode Support different level user management Configuration via web , keyboard and command Support multi language (LCD support Latin language system, web... -
Page 7: Operating Requirement
Installation 11、 Use Ethernet cable to connect AT-620P’s LAN port and your computer. Set computer’s IP to the network 192.168.10.x or using dynamic obtain IP. Open web browser and key in 192.168.10.1. Then user will see the logon page of AT-620P, the default username and password is admin/admin for administrator and guest/guest for guest. -
Page 8: 2Nd、 Feet Installation Instruction
AT-620P User Manual 2nd、 Feet installation instruction 1、 Desktop position: A、 Put the bottom side of the IP phone upside and press the plate with letter “PUSH” into the slot, please refer the picture as below: B、 Press the other plate into the slot in accordance with the direction of the arrow... - Page 9 AT-620P User Manual C、 Repeat A and B. It is the right picture of putting on desk after fixing the two feet below: D、 Disassemble the feet: Press the plate with word “PUSH” and pull the feet with the direction of arrow. When the plate is pull out of the slot (there will be a sound of “pa”) you can take off the feet...
- Page 10 AT-620P User Manual C、 Repeat A and B. It is the picture of wall mounting after fixing the two feet below: Attention: Please rotate the hook to the position as in picture with a coin or other tools D、 Disassemble the feet way: Press the plate with word “PUSH”...
-
Page 11: 3Rd、 Keypad Of Ip Phone
AT-620P User Manual 3rd、 Keypad of IP Phone： Describe of the buttons and Screen: Soft buttons Press to select an feature shown in the soft button features Soft button Shows available choices based on current phone function features displayed on the last line of LCD screen... -
Page 12: 4Th、 Basic Functions And Operations
AT-620P User Manual Lines Shows extension number and status. There are three colors for LED, red，yellow and orange. If the line is registered, the LED shows yellow If the line is enable registered but register to server failed, the LED... -
Page 13: Make Call
AT-620P User Manual B、Hand-free mode Press the hand-free button in the phone and talk with callers by built-in Micro-phone and Speaker. If you want to hang up, please press the hand-free button again. C、Answer by earphone Keep your earphone connected with the RJ9 earphone jack, when there is an incoming call, press the earphone button on the IP phone and talk with the caller. -
Page 14: Speed Dial
System default Sip1 when dial-up. IP Phone be called: AT-620P maximum supports one incoming call when it is called, when the second line calling, the LCD will show the incoming telephone number. The User can press the “corresponding line key”... -
Page 15: Call Transfer
AT-620P User Manual Call Transfer 6、 Blind Transfer User A.B.C, assume B is AT-620P IP phone 1) When A Calls B and B receives 2) B presses soft button “Xfer” when A is calling. 3) B dials C’s number. 4) After dialing C, B Presses soft button “xfer”, then transfers the call to C. -
Page 16: Call Hold
Call History. 9、 AT-620P supports 100 missed calls, incoming calls and dialed calls record. When the storage is full, the latest call will update the history. When the phone reboots or be out of power, all the call history will be cleared. -
Page 17: Call Pickup
AT-620P User Manual 3) Press the navigation button to choose “incoming call”, press soft button OK. 4) Press the navigation button to browse the incoming call record. If there is no record, the LCD screen display “List is Empty”. Out coming call Method 1, 1) Press “Menu”... -
Page 18: Redial/Unredial
AT-620P User Manual Redial/Unredial 12、 In order to being efficiently to contact the busy line, A could use Redial to call B the busy line with setting prefix. When B is free A could get through the call as usual. When B is busy, A could hang the phone with checking B’s situation with every 60S by the set of prefix. -
Page 19: Click To Dial
AT-620P User Manual Make the configuration like sip: username@n in the column of Forward Number. Then system would select Line N and make call accordingly. SIP Line (eg:0/1/2. Or 0.0.0.0/0.0.0.1/0.0.0.2/255.255.255.255 which is compliant with former configuration). Call Forward, Call Transfer (Blind Transfer/ Attended Transfer) between SIP Line and Point to Pint. -
Page 20: Preload Password
Press the up or down navigation button to check the phone’s IP address 5th、 Web settings Enter AT-620P IP addresses in the web browser to go to the log on page, and key in the username and password to access AT-620P setting page. Default username and password is:... -
Page 21: Current State
AT-620P User Manual Current state 1、 This page shows the IP phone working status. The network part shows the connection status of WAN and LAN. Phone Number part shows the phone number and register status for Line1、 Line2 and IAX2 Network 2、... - Page 22 AT-620P User Manual Active IP： IP phone’s address Current Net mask：network net mask MAC Address：MAC of IP phone Current Gateway：the IP address of the router B、If your ISP provide you with the fixed IP address, please choose static and fill in the correct information of IP Address、 Net mask、 Gateway、 Primary DNS etc.
-
Page 23: Lan Config
AT-620P User Manual Parameters： PPPoE Server: sever name, if the ITSP have no special requirements, keep the ANY as default Username: ADSL account user name Password: ADSL account password Attention： 1）After configuration setting please click “Apply” to effect the change 2）If the IP address is changed after effecting the configuration change , the... -
Page 24: Voip
AT-620P User Manual Net mask: LAN net mask DHCP Service: enable LAN DHCP Server , need to reboot to make it available. NAT: Network Address Translation Bridge Mode: Select Bridge Mode or not: If you select Bridge Mode, the phone will no longer set IP address for LAN physical port，LAN and WAN will join in the same network. - Page 25 SIP server domain as the domain realm. Enable Register: Enable or disable registration Advanced SIP setting Register Expire Time: register expire time, default is 600 seconds. AT-620P will auto configure this expire time to the server recommended setting if it is different from the SIP server.
- Page 26 AT-620P User Manual Enable Via rport: Enable/Disable system to support RFC3581. Via rport is special way to realize SIP NAT. Enable PRACK: Enable or disable SIP PRACK function, suggest use the default config. Long Contact: Set more parameters in contact field.
-
Page 27: Sip 2
AT-620P User Manual GRUU: Set to support GRUU. Enable Subscribe: Enable Subscribe: Overtime of resending subscribe packet. Suggest using the default config. SIP 2 3.2. Register Status: SIP server registration status, if succeed display Registered，or else display Unregistered. Server Address: SIP server address , support both IP address and domain name. - Page 28 AT-620P User Manual Register Expire Time: register expire time, default is 600 seconds. AT-620P will auto configure this expire time to the server recommended setting if it is different from the SIP server. Auto Detect Server Interval: Set examining interval of the server, default is 60 seconds.
- Page 29 AT-620P User Manual config. Long Contact: Set more parameters in contact field; Click To Talk: Set click to Talk (need practical software support). Ban Anonymous Call: Set to ban Anonymous Call. Dial without Register: Set call out by proxy without registration.
-
Page 30: Iax2 Config
AT-620P User Manual Iax2 Config 3.3. Above is the IAX server configuration page IAX Server Addr: Register address of public IAX server IAX Server Port: Register port of public IAX server，default port is 4569 Account Name: Username of your SIP account (Always the same as the phone number) Account Password: Password of your IAX account. -
Page 31: Advance
AT-620P User Manual Advance 4、 DHCP Server 4.1. DHCP Leased Table: IP-MAC mapping table. If the LAN port of the phone connects to a device, this table will show the IP and MAC address of this device. Leased IP Address: the IP address which is assigned. -
Page 32: Nat
AT-620P User Manual reboot. 4.2. NAT is abbreviated from Net Address Translation; it’s a protocol responsible for IP address translation. In other word, it is responsible for transforming IP and port of private network to public, also is the IP address mapping which we usually say. - Page 33 AT-620P User Manual The setting page as below: IPSec ALG: It is an encryption technology. Select it to enable IPSec ALG, the default is enable. FTP ALG: FTP is a service of connection layer which can transform intranet IP into extranet IP when intranet IP is sending out packet. Select it to enable FTP ALG, the default is enabling.
- Page 34 AT-620P User Manual Shows the NAT UDP mapping table； NAT Table Option: Transfer Type：Select the NAT mapping protocol style, TCP or UDP Inside IP: Set the IP address of device which is connected to LAN interface to do NAT mapping.
-
Page 35: Net Service
AT-620P User Manual Net Service 4.3. HTTP Port: set web browser port, the default is 80 port，if you want to enhance system safety，you'd better change it into non-80 standard port； Example: The IP address is 192.168.10.88. and the port value is 6090, the accessing address is http://192.168.10.88:6090... -
Page 36: Firewall
AT-620P User Manual Firewall 4.4. in_access enable： Select it to Enable in_ access rule； out_access enable： Select it to Enable out_ access rule Firewall Input Rule Table: Firewall input rule, as the picture config is deny 192.168.1.2 ping 192.168.10.2, ping 192.168.10.0/24... -
Page 37: Qos
AT-620P User Manual means just point to one host; if set to 255.255.255.0 means point to a network which network ID is C type. 4.5. VLAN Enable：Before select it to enable VLAN, you need enable Bridge mode in LAN config. -
Page 38: Digital Map
AT-620P User Manual and enable the DiffServ, then system will distinguish the voice and data and add the VLAN ID each other. 4) Enable VLAN, if set Voice and Data VLAN differentiated as date untagged, then the packet of the signal and voice will use the voice VLAN ID as the tag, but the data packets will not take the VLAN tag. -
Page 39: Stun
AT-620P User Manual represents any one digit between 0~9 Tn represents the last digit timeout. n represents the time from 0~9 second, it is necessary. Tn must be the last two digit in the entry. If Tn is not included in the entry, we use T0 as default, it means system will sent the number immediately if the number matches the entry. -
Page 40: Call Service
SIP server to make the IP phone transverse NAT. Call Service 4.8. Hotline: configure hotline number. AT-620P immediately dials this number after hook-off if it is set and the user can not dial any other number. No Answer Time: no answer call forward time setting. -
Page 41: Mmi Filter
AT-620P User Manual refused. Use “x” to represent any number. For example , 4xx means any incoming call with 3 digital and the first digital is 4 , will be refused. DOT (.) means matching any arbitrary number digit. for example, any number with prefix 6 will be forbidden to dialed out. -
Page 42: Audio Settings
AT-620P User Manual IP address in the Start IP column, Set end IP address in the End IP column, and click Add to add this IP segment. You can also click Delete to delete the selected IP segment. Notice: Do not set your visiting IP outside the MMI filter range, otherwise, you cannot logon through the web. -
Page 43: Vpn
AT-620P User Manual 4.11. this page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol .The parameters is as below. VPN IP： After VPN registered successfully, VPN server will give an IP aggress to the terminal. -
Page 44: Dial Peer
AT-620P User Manual Dial Peer 5、 This functionality offers you more flexible dial rule, you can refer to the following content to know how to use this dial rule. When you want to dial an IP address, the entry of IP addresses is very cumbersome, but by this functionality, you can set number 179 to replace 192.168.1.179 here. - Page 45 AT-620P User Manual co-work with the Del Length: add:xxx, add prefix to the phone number, can set to reduce the dial length. all: xxx, replace the phone number with the xxx, can use as speed dial function. Del, delete the first N numbers. N is set in the Del Length.
-
Page 46: Config Manage
AT-620P User Manual set peer to peer call, please input destination IP address or domain name. If you want to use this dial rule in SIP2 line, you need input 0.0.0.2 in it. If not config, default sip1 as 0.0.0.0. -
Page 47: Update
AT-620P User Manual Update 7、 Web Update 7.1. Click the browse button, find out the config file saved before or provided by manufacturer, download it to the phone directly, press “Update” to save. You can also update downloaded update file, logo picture, ring, mmiset file by web. -
Page 48: Auto Provisioning
AT-620P User Manual Notice：Users can revise the exported config file by themselves and import the config file with only modules, for example if there is the SIP setting page in the config file , the IP phone will only change SIP setting after import this file and leave other setting as not changed. -
Page 49: System Manage
AT-620P User Manual System Manage 8、 Account Manage 8.1. Users can add new account or delete and change existing account Set Menu Password: Set menu of keypad password, default is “123” Set KeyboardLock: The default password is “123”. It will take effect when you enable the keyboard lock. - Page 50 AT-620P User Manual Set Backlight Timeout: Set backlight time out, if IP Phone has not press any operation to active within the settings value, the backlight will off. Set Greeting Message: set the Greeting message on the LCD, default is blank.
-
Page 51: Phone Book
AT-620P User Manual Phone Book 8.2. Phonebook Table: shows phonebook detailed information Add Phone Book: add a new record in phonebook Name: nick name of a number ，when the call of this number comes in the LCD will show the name... - Page 52 AT-620P User Manual Syslog server receives the messages from clients, and classifies them based on priority and type. Then these messages will be written into log by some rules which administrator can configure. This is a better way for log management.8 levels in debug information: Level 0---emergency: This is highest default debug info level.
-
Page 53: Time Set
AT-620P User Manual Time Set 8.4. Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP Daylight Timeset: daylight setting through manual Manual Timeset: Time setting through manual Enable Daylight: Daylight saving time ATCOM TECHNOLOGY CO., LIMITED... -
Page 54: Call Log
AT-620P User Manual Call Log 8.5. Start Time：Display starts time of the outgoing record. Last Time：Display conversation time of the outgoing record. Called Number：Display the account/protocol/line of the outgoing record. Notice: It will cover existing automatically if the call log table has the new record. -
Page 55: 8.8. Reboot
AT-620P User Manual 8.8. Reboot Reboot IP phone, some setting needs to reboot to make it works. Please always save config before reboot, otherwise the setting will return to previous setting. ATCOM TECHNOLOGY CO., LIMITED...
