AT-610 User Manual
AT-610 User Manual
ISSUE 1.0
2009-9-11
ATCOM TECHNOLOGY CO., LIMITED

Advertisement

Table of Contents
loading

Related Manuals for ATCOM AT-610

Summary of Contents for ATCOM AT-610

  • Page 1 AT-610 User Manual AT-610 User Manual ISSUE 1.0 2009-9-11 ATCOM TECHNOLOGY CO., LIMITED...

  • Page 2: Table Of Contents

    AT-610 User Manual 1st、 AT-610’s Network Features ..............4     The View ........................ 4  1、  Interfaces ......................4  2、  Electricity characteristic ................... 4  3、  Software ......................... 4  4、  Network： ......................5  5、  Management and Maintenance ..............5  6、  Protocol ........................6 ...
  • Page 3 AT-610 User Manual Audio Settings ................29  4.5.  Dial Peer ....................... 30  5、  Config Manage ....................33  6、  Update ........................33  7、  Web Update ..................33  7.1.  FTP/TFTP Update ................34  7.2.  Auto Provisioning ................35  7.3.  System Manage ....................36 ...

  • Page 4: 1St、 At-610'S Network Features

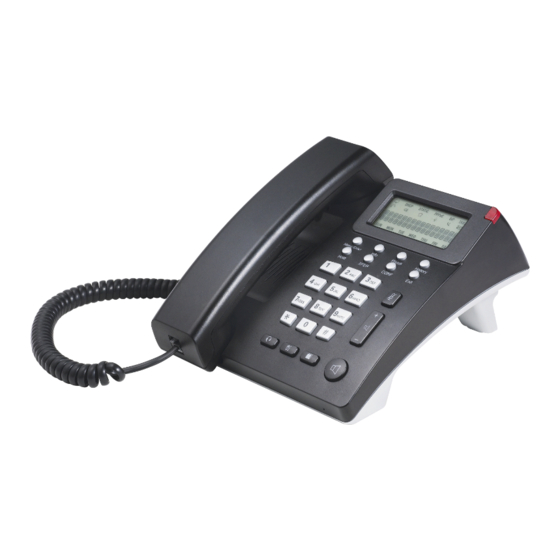

    AT-610 User Manual 1st、 AT-610’s Network Features The View 1、 Interfaces 2、 Power: Output Power: 12VDC, 500mA. WAN: RJ45 port. LAN: RJ45 port. Electricity characteristic 3、 Specialty of electric: output 12V 500mA DC The network connects: 2 RJ45 connect, a WAN, a LAN...

  • Page 5: Network

    AT-610 User Manual Jitter Buffer(200ms),VAD,CNG G.711A/u、G722、G.723、G.729 Codec G.168 compliant 96ms echo cancellation Support SIP domain，SIP authentication(none，basic,MD5）. Support inbound audio, RFC2833 and SIP info , DTMF transmission way SIP Call Forward、Call transfer、Call hold、Call waiting, 3-way talking、 Pickup、Join call、Redial、Unredial、Call Park、Vport、Click to dial Dial without register Support Hotline、...

  • Page 6: Protocol

    AT-610 User Manual Protocol 7、 IEEE 802.3 /802.3 u 10 Base T / 100Base TX PPPoE：PPP over Ethernet SIP RFC3261, RFC 2543 TCP/IP: Transfer Control Protocol/Internet Protocol RTP: Real-time Transport Protocol RTCP：RTP Control Protocol VAD/CNG Telnet：remote host access protocol DNS: Domain Name Server TFTP：Trivial File Transfer Protocol...

  • Page 7: Installation

    Installation 11、 Use Ethernet cable to connect AT-610’s LAN port and your computer. Set computer’s IP to the network 192.168.10.x or using dynamic obtain IP. Open web browser and key in 192.168.10.1. Then user will see the logon page of AT-610, the default username and password is admin/admin for administrator and guest/guest for guest.
  • Page 8 AT-610 User Manual B、 Press the other plate into the slot in accordance with the direction of the arrow C、 Repeat A and B. It is the right picture of putting on desk after fixing the two feet below: D、 Disassemble the feet: Press the plate with word “PUSH”...
  • Page 9 AT-610 User Manual C、 Repeat A and B. It is the picture of wall mounting after fixing the two feet below: Attention: Please rotate the hook to the position as in picture with a coin or other tools D、 Disassemble the feet way: Press the plate with word “PUSH”...

  • Page 10: 3Rd、 Keypad Of Ip Phone

    AT-610 User Manual 3rd、 Keypad of IP Phone： Sketch Map of Phone Description: Number Function description Network status indicator A、 when the network is OK , it’s on B、 when the network can not connect , it blinks 3、5、7 Network mode indicator A、Number 3 stands for DHCP , when the IP phone get IP address in DHCP Mode .
  • Page 11 AT-610 User Manual C、Number 7 stands for PPPoE, when the IP phone get IP address in PPPoE mode . the indicator is on , or else it blinks 2、4、6 Answering mode indicator , A、Number 2 stands for answering call with handset B、Number 4 stands for answering call in hand-free mode...

  • Page 12: 4Th、 Basic Functions And Operations

    AT-610 User Manual menu conference key , when you want to realize conference call , press CONF key and key in the third party number Transfer key Press Hold to hold the call when you are talking Press mute , you can hear the voice from the other end but he can not hear you speaking.

  • Page 13: Make Call

    AT-610 User Manual If you are phoning under hand-free mode and want to change to speaker phone, juts pick up the handset without press any buttons. Make Call 2、 A、Use the handset Pickup the handset, the LCD will show the current lines. User can input the number with the keyboard and press # to send the number.

  • Page 14: 5、 3-Way Conference Call

    Call History. 7、 AT-610 supports 100 missed calls, incoming calls and dialed calls record. When the storage is full, the latest call will update the history. When the phone reboots or be out of power, all the call history will be cleared.

  • Page 15: Call Pickup

    AT-610 User Manual 4) Choose the received call record, press “Redial” button to call this number. If there is no record, the LCD screen display “List is Empty”. Call pickup 8、 Call pickup is simulated from “Pickup” function processes from IPPBX. When A call B with no reply after ring tones, C could pick up the call from A for B by inputting the prefix and B’s phone No.

  • Page 16: 11、 Vport

    AT-610 User Manual anymore. *3* is the predecessor. Then A could make the redial function via dialing *3* + number of B. *4* is the predecessor. Then A could make the redial function via dialing *4* + number of B.

  • Page 17: Click To Dial

    Press the up or down navigation button to check the phone’s IP address 5th、 Web settings Enter AT-610 IP addresses in the web browser to go to the log on page, and key in the username and password to access AT-610 setting page. Default username and password is:...

  • Page 18: Current State

    AT-610 User Manual Current state 1、 This page shows the IP phone working status. The network part shows the connection status of WAN and LAN. Phone Number part shows the phone number and register status for Line1、 Line2 and IAX2 Network 2、...
  • Page 19 AT-610 User Manual Current Gateway：the IP address of the router B、If your ISP provide you with the fixed IP address, please choose static and fill in the correct information of IP Address、 Net mask、 Gateway、 Primary DNS etc. If you do not know it please refer to your ISP provider or network management stuff.

  • Page 20: Voip

    AT-610 User Manual Parameters： PPPoE Server: sever name, if the ITSP have no special requirements, keep the ANY as default Username: ADSL account user name Password: ADSL account password Attention： 1）After configuration setting please click “Apply” to effect the change 2）If the IP address is changed after effecting the configuration change , the...
  • Page 21 SIP server domain as the domain realm. Enable Register: Enable or disable registration Advanced SIP setting Register Expire Time: register expire time, default is 600 seconds. AT-610 will auto configure this expire time to the server recommended setting if it is different from the SIP server.
  • Page 22 AT-610 User Manual Auto Detect Server Interval: Set examining interval of the server, default is 60 seconds User Agent: Set the user agent if have, the default is VoIP Phone 1.0 Signal Key: Signal encryption Key: Media Key: voice stream encryption Key Local Port: Local SIP signal port，default as 5060...

  • Page 23: Advance

    AT-610 User Manual which uses the same version as you select. For example, if the server is CISCO5300, you need to change to RFC2543; else phone may not cancel call normally. System uses RFC3261 as default. Transport Protocol: Set transport protocols, TCP or UDP.
  • Page 24 SIP server domain as the domain realm. Enable Register: Enable or disable registration Advanced SIP setting Register Expire Time: register expire time, default is 600 seconds. AT-610 will auto configure this expire time to the server recommended setting if it is different from the SIP server.
  • Page 25 AT-610 User Manual Media Key: voice stream encryption Key. Local Port: Local SIP signal port，default as 5060. Enable Conference Num: conference ID Auto Detect Server: Enable/Disable keeps NAT of SIP alive. If some server refuse to register with too short interval time, and has no packets sending to device in private network to keep NAT alive, user could set this function ON.

  • Page 26: Digital Map

    AT-610 User Manual the default config. Conference Number: config certain Conference call number Signal Encode: enable signal encryption Rtp Encode: enable voice data encryption Enable Session Timer: enable rfc4028 to refresh the SIP sessions Answer With Single Codec: only answer the call with a certain Codec...

  • Page 27: Stun

    AT-610 User Manual represents any one digit between 0~9 Tn represents the last digit timeout. n represents the time from 0~9 second, it is necessary. Tn must be the last two digit in the entry. If Tn is not included in the entry, we use T0 as default, it means system will sent the number immediately if the number matches the entry.

  • Page 28: Call Service

    SIP server to make the IP phone transverse NAT. Call Service 4.4. Hotline: configure hotline number. AT-610 immediately dials this number after hook-off if it is set and the user can not dial any other number. No Answer Time: no answer call forward time setting.

  • Page 29: Audio Settings

    AT-610 User Manual call with 3 digital and the first digital is 4 , will be refused. DOT (.) means matching any arbitrary number digit. for example, any number with prefix 6 will be forbidden to dialed out. Any digital call with a certain head number, For example 6.

  • Page 30: Dial Peer

    AT-610 User Manual Fifth Codec: The fifth preferential DSP codec:G.711A/u、G722、G.723、G.729 Input Volume：Specify Input (MIC) Volume grade; Output Volume：Specify Output (receiver) Volume grade. Hands free Volume：Specify Hands free Volume grade Ring Volume：Specify Ring Volume grade G729 Payload Length：Set G729 Payload Length Signal Standard：Select Signal Standard.
  • Page 31 AT-610 User Manual Phone Number: The Number suit for this dial rule, can be set as full match or prefix match. Full match means that if the number user dialed is completely the same as this number, the call will use this dial-rule. Prefix match means that if prefix of the number that the user dials is the same as the prefix, the call will use this dial-rule, to distinguish from the full match case, you need to add “T”...
  • Page 32 AT-610 User Manual Phone number：There are two types of matching conditions: one is full matching, the other is prefix matching. In the full matching, you need input your desired phone number in this blank, and then you need dial the phone number to realize calling to what the phone number is mapped.

  • Page 33: Config Manage

    AT-610 User Manual Config Manage 6、 Save Config: you can save all changes of configurations. Click the Save button, all changes of configuration will be saved, and be effective immediately. Backup Config: Right clicks on “Right click here…” and select “Save Target As….”...

  • Page 34: Ftp/Tftp Update

    AT-610 User Manual also update downloaded update file, logo picture, ring, mmiset file by web. FTP/TFTP Update 7.2. Server: FTP/TFTP server address. It can be the format of IP address such as 192.168.1.1 or domain such as ftp.domain.com Meanwhile , it support sub directory such as 192.168.1.1/ftp/config/ or ftp.domain.com/ftp/config...

  • Page 35: Auto Provisioning

    AT-610 User Manual Auto Provisioning 7.3. Current Version: the system will display the current version number need to modify the version id need to more than this number on the config file before auto provision update. Server Address: FTP/TFTP server address...

  • Page 36: System Manage

    AT-610 User Manual System Manage 8、 Account Manage 8.1. Users can add new account or delete and change existing account Keyboard Password：config password that you use keyboard to access the menu , must be in number. User Name：set new account name User Level：...

  • Page 37: Phone Book

    AT-610 User Manual Phone Book 8.2. Phonebook Table: shows phonebook detailed information Add Phone Book: add a new record in phonebook Name: nick name of a number ，when the call of this number comes in the LCD will show the name...
  • Page 38 AT-610 User Manual which administrator can configure. This is a better way for log management.8 levels in debug information: Level 0---emergency: This is highest default debug info level. You system can not work. Level 1---alert: Your system has deadly problem.

  • Page 39: Time Set

    AT-610 User Manual Time Set 8.4. Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP Daylight Timeset: daylight setting through manual Manual Timeset: Time setting through manual Enable Daylight: Daylight saving time ATCOM TECHNOLOGY CO., LIMITED...

  • Page 40: Call Log

    AT-610 User Manual Call Log 8.5. Start Time：Display starts time of the outgoing record. Last Time：Display conversation time of the outgoing record. Called Number：Display the account/protocol/line of the outgoing record. Notice: It will cover existing automatically if the call log table has the new record.
