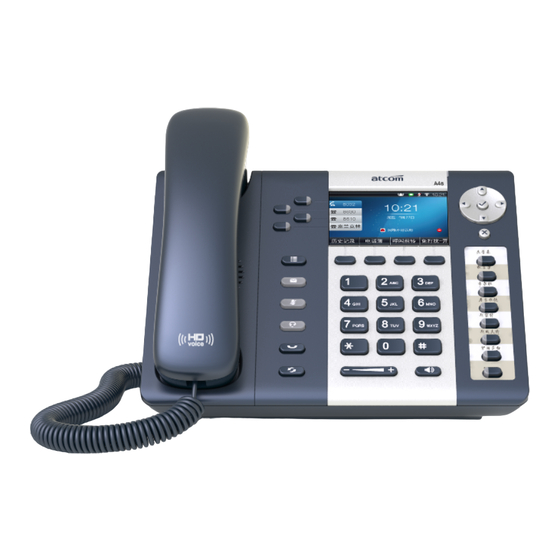

- Page 1 A48(W) Quick Start Guide Version 1.0 2016-03-21...
-
Page 2: Table Of Contents
2.2 Configuring via Webpage....................10 2.2.1 Login to web......................10 2.2.2 Network Configuration.................... 11 2.2.3 Account Configuration.....................12 2.3 Wi-Fi(only for A48W)......................15 2.3.1 Configure the wifi on the phone................15 2.3.2 Configure the wifi on the WEB................15 ATCOM TECHNOLOGY CO., LIMITED... -
Page 3: Installation And Access
Set up A48 as below: 1.2 Stand bracket installation instruction A. Put the bottom side of the IP phone upside and press one-side joints of stand bracket into the slot, please refer the picture as below: ATCOM TECHNOLOGY CO., LIMITED... - Page 4 A48(w)Quick Start Guide B. Press the other side joints into the slot according to the direction of the arrow: C. It is the right picture after fixing the stand bracket below: ATCOM TECHNOLOGY CO., LIMITED...
- Page 5 D. Disassemble the stand bracket: Push the spring joint of stand and pull the stand according to the direction of the arrow. When the joints are pulled out of the slot, you can take off the stand bracket. ATCOM TECHNOLOGY CO., LIMITED...
- Page 6 A48(w)Quick Start Guide ATCOM TECHNOLOGY CO., LIMITED...
-
Page 7: Programmable Keys' Paster Using Instruction
Step5. Write down the identification of each programmable key on the paster after taking off the paster Step6. Put back the paster Step7. Insert the plastic sheet into the slot Step8. Push the other side of the plastic sheet into the other slot ATCOM TECHNOLOGY CO., LIMITED... -
Page 8: Wiring Instruction
A48(w)Quick Start Guide 1.4 Wiring instruction After stand bracket fixed, please plug in all wires or cables as below: ATCOM TECHNOLOGY CO., LIMITED... -
Page 9: Configuring Phone
A48(w)Quick Start Guide 2. Configuring phone A48(W) A48(W) with RET ATCOM TECHNOLOGY CO., LIMITED... -
Page 10: Configuring Via Keypad
“Enter”, you will be required to input the username and password to access the web page. The username/password as below: Username Password Description admin admin For Administrators user user For General Users ATCOM TECHNOLOGY CO., LIMITED... -
Page 11: Network Configuration
“Account Configuration”, or click the button “Back” to back to web page of “Network Configuration”. 3.If chosen PPPOE, user should input the username/password (provide by ISP) of PPPOE manually and then click the button “Next” to enter the web page of “PPPOE”, ATCOM TECHNOLOGY CO., LIMITED... -
Page 12: Account Configuration
“Next” to enter the web page of “Account Configuration”, or click the button “Back” to back to web page of “Network Configuration”. Network Configuration can be completed in below webpage, 2.2.3 Account Configuration The account configuration info will be saved to Line 1. ATCOM TECHNOLOGY CO., LIMITED... - Page 13 A48(w)Quick Start Guide Click the buttom “Finish” to save network configuration and account configuration, and click “Back” back to the previous web page. Account Configuration can be completed in below webpage, ATCOM TECHNOLOGY CO., LIMITED...
- Page 14 SIP server. User ID: Username of SIP account. Password: Password of SIP account. Sip Server: SIP server address, support both IP address and domain name. Sip Port: SIP server port, default is 5060. ATCOM TECHNOLOGY CO., LIMITED...
-
Page 15: Wi-Fi(Only For A48W)
A48(w)Quick Start Guide 2.3 Wi-Fi (only for A48W) 2.3.1 Configure the wifi on the phone 1 、 Press “Menu”-“Network”-“Connect Mode”,change for the wifi connection mode,press “OK”. 2、Press “Menu”-“Network”-“WIFI setting”-“WLAN”,choose the wifi you want to connect,Press “Connect”,then input the correct wifi password. - Page 16 The Wi-Fi icon will display on the home screen, it means connect failed when the icon come with , you should to check the configuration. ATCOM TECHNOLOGY CO., LIMITED...
