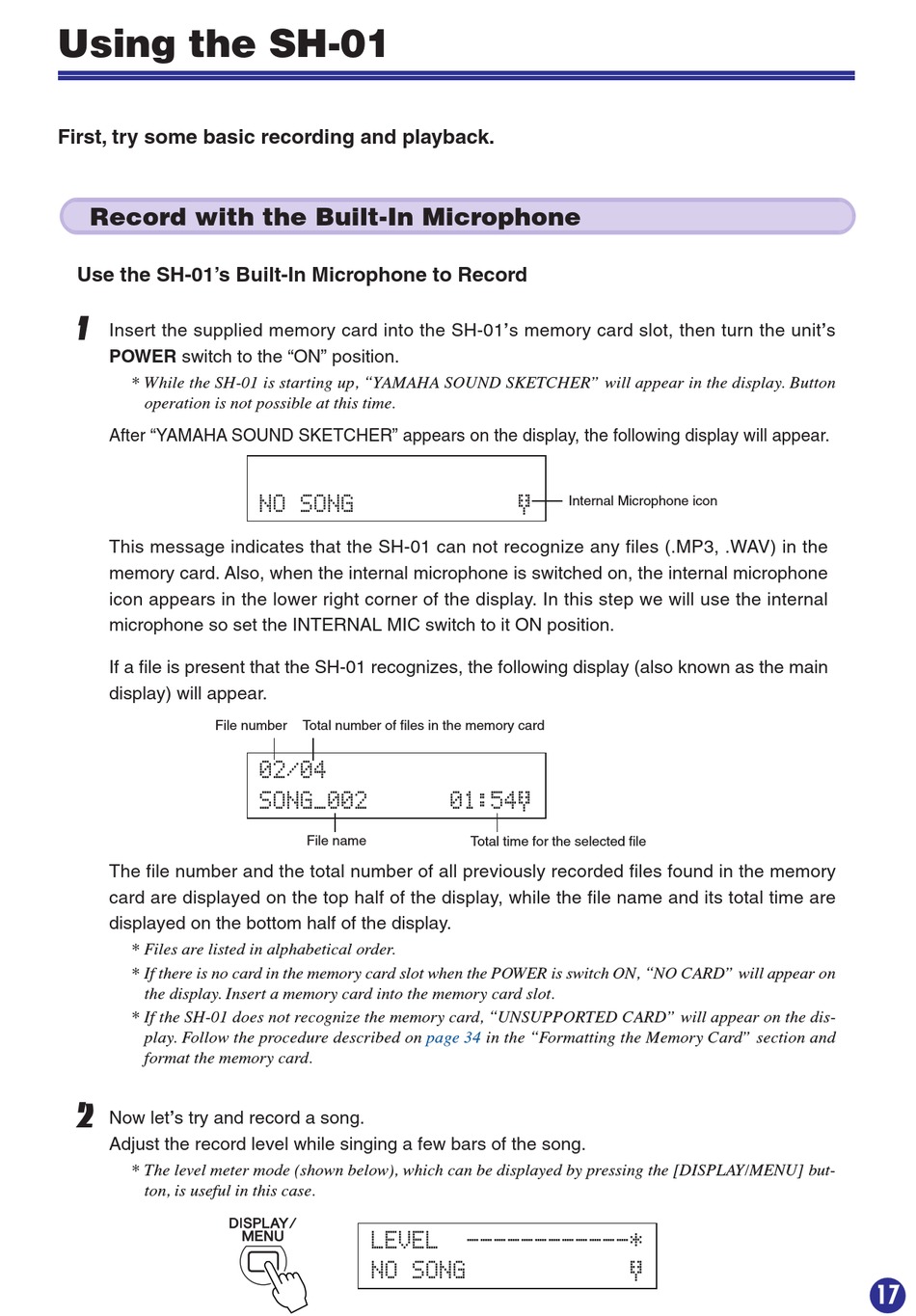

Using the SH-01
First, try some basic recording and playback.

Record with the Built-In Microphone

Use the SH-01's Built-In Microphone to Record
1
Insert the supplied memory card into the SH-01's memory card slot, then turn the unit's
POWER switch to the "ON" position.
* While the SH-01 is starting up, "YAMAHA SOUND SKETCHER" will appear in the display. Button
operation is not possible at this time.
After "YAMAHA SOUND SKETCHER" appears on the display, the following display will appear.
This message indicates that the SH-01 can not recognize any files (.MP3, .WAV) in the
memory card. Also, when the internal microphone is switched on, the internal microphone
icon appears in the lower right corner of the display. In this step we will use the internal
microphone so set the INTERNAL MIC switch to it ON position.
If a file is present that the SH-01 recognizes, the following display (also known as the main
display) will appear.
File number
The file number and the total number of all previously recorded files found in the memory
card are displayed on the top half of the display, while the file name and its total time are
displayed on the bottom half of the display.
* Files are listed in alphabetical order.
* If there is no card in the memory card slot when the POWER is switch ON, "NO CARD" will appear on
the display. Insert a memory card into the memory card slot.
* If the SH-01 does not recognize the memory card, "UNSUPPORTED CARD" will appear on the dis-
play. Follow the procedure described on
format the memory card.
2
Now let's try and record a song.
Adjust the record level while singing a few bars of the song.
* The level meter mode (shown below), which can be displayed by pressing the [DISPLAY/MENU] but-
ton, is useful in this case.
NO SONG
Total number of files in the memory card
02/04
SONGå002
File name
page 34
LEVEL
NO SONG
¨
Internal Microphone icon
01:54¨
Total time for the selected file
in the "Formatting the Memory Card" section and
------------*
¨
17
