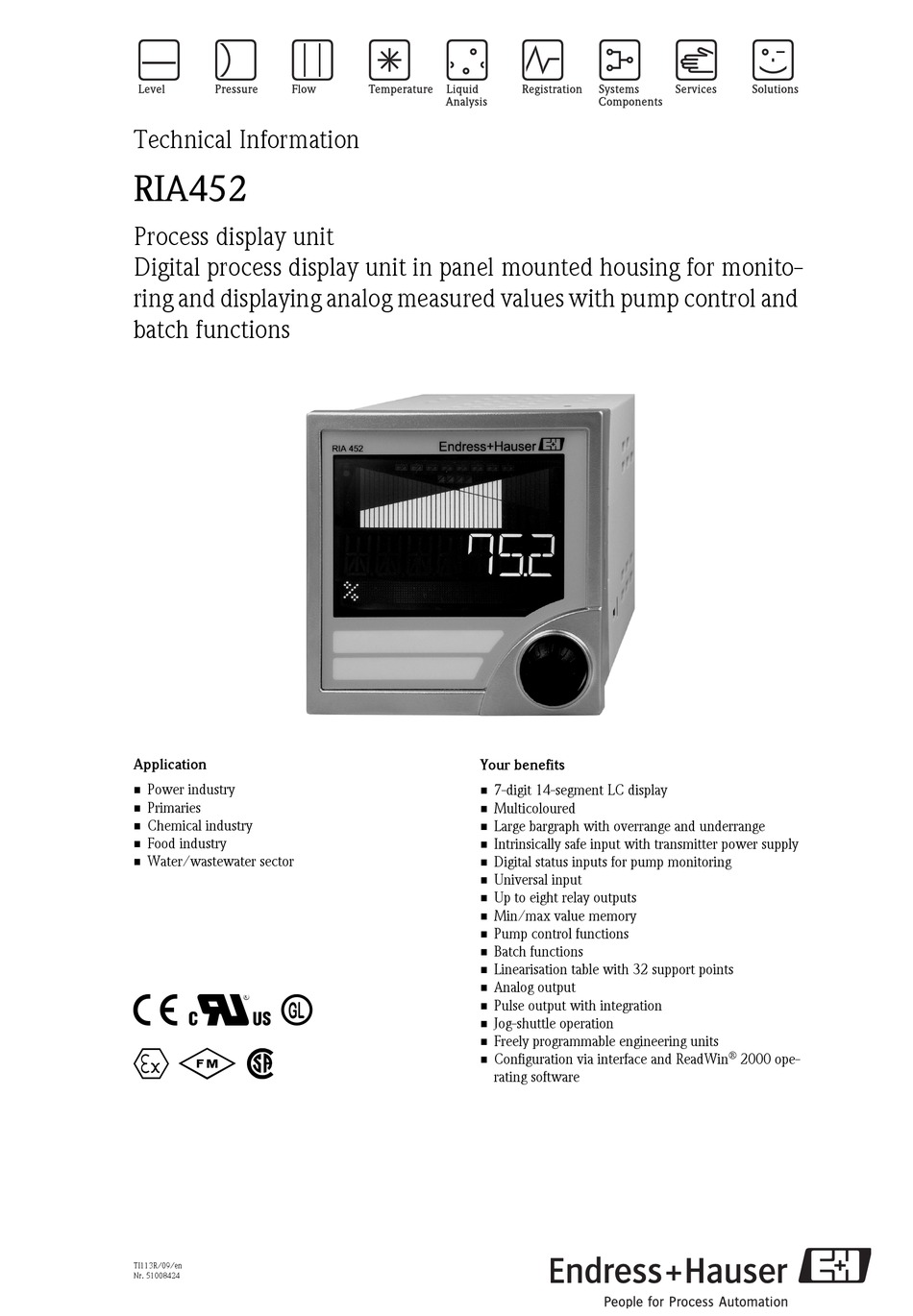

Technical Information
RIA452
Process display unit
Digital process display unit in panel mounted housing for monito-
ring and displaying analog measured values with pump control and
batch functions
Application
• Power industry
• Primaries
• Chemical industry
• Food industry
• Water/wastewater sector
4 â Ó
0 2 1
TI113R/09/en
Nr. 51008424
Your benefits
• 7-digit 14-segment LC display
• Multicoloured
• Large bargraph with overrange and underrange
• Intrinsically safe input with transmitter power supply
• Digital status inputs for pump monitoring
• Universal input
• Up to eight relay outputs
• Min/max value memory
• Pump control functions
• Batch functions
• Linearisation table with 32 support points
• Analog output
• Pulse output with integration
• Jog-shuttle operation
• Freely programmable engineering units
• Configuration via interface and ReadWin
rating software
®
2000 ope-
