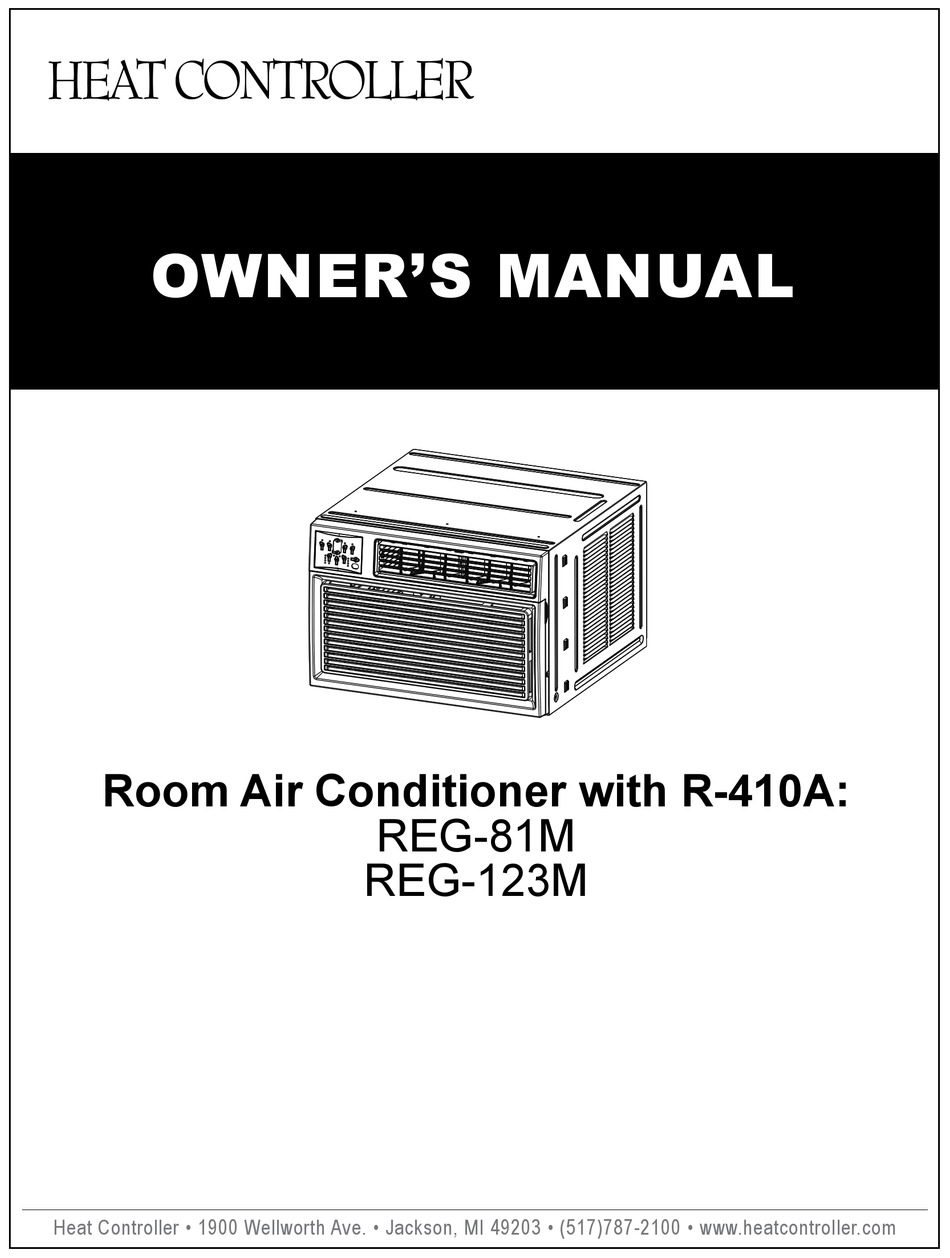

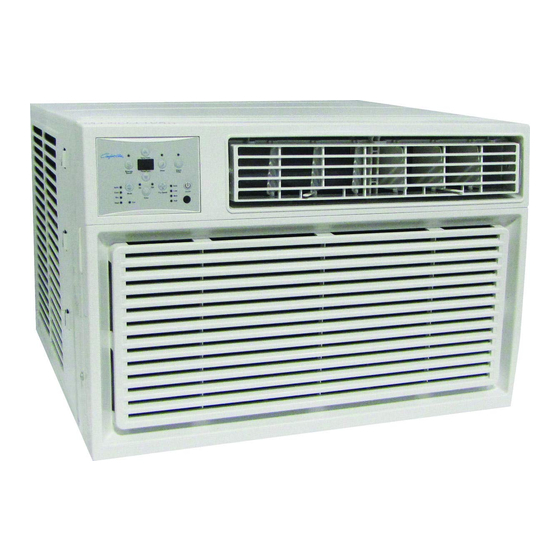

  • Page 1 Room Air Conditioner with R-410A: REG 81J REG-81M REG-81M REG-123M REG-123M REG-123J RAH-123M Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...

  • Page 2: Important Safety Instructions

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.
  • Page 3 Room Air Conditioner with R-410A Heat Controller Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS CAUTION When the air filter is to be Do not put a pet or house plant Ventilate the room well when removed, do not touch the metal where it will be exposed to direct used together with a stove, etc.

  • Page 4: Operation Of Current Device

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: The power supply cord with this air For Your Safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance.

  • Page 5: Installation Instructions

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual INSTALLATION INSTRUCTIONS CAUTION To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may be exposed: Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install the unit.To prevent injury or strain, use proper lifting and carrying...

  • Page 6: Location Requirements

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller INSTALLATION INSTRUCTIONS ner’s Manual NOTE: Installation parts are supplied for double-hung windows up to 36 (91.4 cm) wide. A special Wide Window Kit is available from your dealer or service center. See Accessories .
  • Page 7 Room Air Conditioner with R-410A Heat Controller Owner’s Manual INSTALLATION INSTRUCTIONS Remove packaging material: FIG.5 FIG.3 FIG.4 NOTE: Handle the air conditioner gently. Be sure your air conditioner cabinet does not fall out of the opening during installation or removal.

  • Page 8: Attach Side Curtains To Window Frame

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller INSTALLATION INSTRUCTIONS Attach foam adhesive seal: Attach foam adhesive seal along the bottom of the curtain bottom channel (FIG.8). FIG.8 FIG.10 FIG.9 Angle of cabinet bracket securely seated on edge of inner sill.

  • Page 9: Complete Installation

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual INSTALLATION INSTRUCTIONS Complete Installation: 1. Insert window sash seal behind the top of the lower window sash and against the glass of the upper window (FIG.15). FIG.15 2. Place the window-lock bracket on top of lower window and against upper window sash on right side of the window (FIG.15).
  • Page 10 Room Air Conditioner with R-410A Owner’s Manual Heat Controller INSTALLATION INSTRUCTIONS NOTE: FIG.21 Dimension for depth depends on wall thickness and type of molding (FIG.21). A. Outside width Do not block louvers in air conditioner cabinet. B. Outside height Use 1 (2.5 cm) or thicker lumber for wood frame.

  • Page 11: Normal Sounds

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter Vibration during the cooling cycle. Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.

  • Page 12: Energy Saver Feature

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller AIR CONDITIONER FEATURES TO SELECT THE OPERATING MODE: TO ADJUST FAN SPEEDS: Press to select the Fan Speed in four steps-Auto, To choose operating mode, press Mode button.Each Low, Med or High. Each time the button is pressed, time you press the button, a mode is selected in a the fan speed mode is shifted.For some models, the...

  • Page 13: Additional Things You Should Know

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual AIR CONDITIONER FEATURES DISPLAYS: Air Directional Louvers Displays Air Directional Louvers DISPLAYS: Shows the set temperature in C or F and the Auto-timer settings.While on Fan only mode,it shows Air Direction(4- way) the room temperature.

  • Page 14: Troubleshooting Tips

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller CARE AND CLEANING Winter Storage Cabinet Cleaning Be sure to unplug the air conditioner to prevent shock or fire If you plan to store the air conditioner during the winter, hazard. The cabinet and front may be dusted with an oil-free remove it carefully from the window according to the installation instructions.
  • Page 15 Room Air Conditioner with R-410A Heat Controller Owner’s Manual TROUBLESHOOTING TIPS Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Air conditioner cooling, but room Temperature is set too High, set temperature to a Lower setting.
