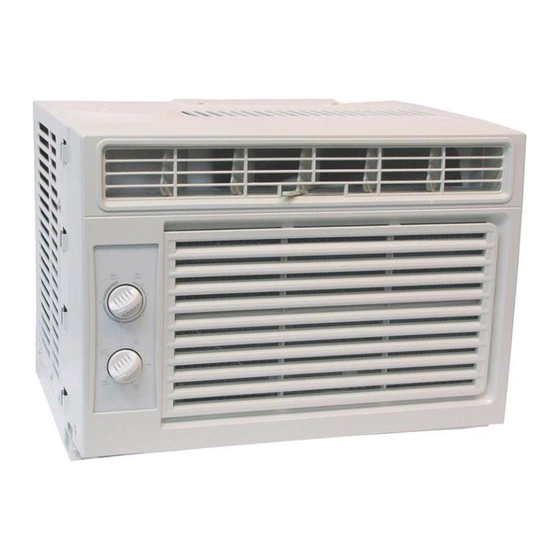

Heat Controller RG-51M Owner's Manual

With r-410a
Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Room Air Conditioner with R-410A:
Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com
WINDOW/WALL TYPE
ROOM AIR CONDITIONER
RG-51M
-
Before using your air conditioner, please read
this manual carefully and keep it for future reference.

Advertisement

loading

Related Manuals for Heat Controller RG-51M

Summary of Contents for Heat Controller RG-51M

  • Page 1 WINDOW/WALL TYPE ROOM AIR CONDITIONER Room Air Conditioner with R-410A: RG-51M Before using your air conditioner, please read this manual carefully and keep it for future reference. Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...

  • Page 2: Table Of Contents

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............6 5. INSTALLATION INSTRUCTIONS............7 6. CARE AND CLEANING ..............11 7. TROUBLESHOOTING TIPS...............12 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.

  • Page 3: Safety Precautions

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
  • Page 4 Room Air Conditioner with R-410A Owner’s Manual Heat Controller ! CAUTION Do not clean the air Ventilate the room well when When the air filter is to be removed, do not touch the conditioner with water. used together with a stove, metal parts of the unit.

  • Page 5: Important Safety Instructions

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE For some models, the power Do not store or use gasoline or other flammable vapors and liquids in supply cord with this air conditioner the vicinity of this or any other appliance.

  • Page 6: Normal Sounds

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter during the cooling cycle. Vibration Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.

  • Page 7: Air Conditioner Features

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual AIR CONDITIONER FEATURES The controls featured in this manual are representative of many available models. Your model may offer slightly different features. Wait Three Minutes Before Restarting TEMPERATURE Cool Mode The desired cool setting is selected by rotating the knob to the right to the appropriate location.

  • Page 8: Installation Instructions

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller INSTALLATION INSTRUCTIONS Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches(584mm to 914mm) (See Fig.1). Fig. 1 Lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330mm).
  • Page 9 Room Air Conditioner with R-410A Heat Controller Owner’s Manual HOW TO INSTALL NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16 ). This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels for any reason, this pitch to the rear must be maintained.
  • Page 10 Room Air Conditioner with R-410A Owner’s Manual Heat Controller Fig.5 Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig.5). Carefully close the window behind the top rail of the unit.
  • Page 11 Room Air Conditioner with R-410A Heat Controller Owner’s Manual Drive 1 / 2 (13mm) locking screws through frame Fig.9 holes into window sash (Fig.9/10) To secure lower sash in place, attach right angle sash lock with 3 / 4 (19mm) or 1 / 2 (13mm) screw as shown(Fig.11).

  • Page 12: Care And Cleaning

    Room Air Conditioner with R-410A Owner’s Manual Heat Controller CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary.

  • Page 13: Troubleshooting Tips

    Room Air Conditioner with R-410A Heat Controller Owner’s Manual TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance.
  • Page 14 Room Air Conditioner with R-410A Owner’s Manual Heat Controller...
  • Page 15 Room Air Conditioner with R-410A Heat Controller Owner’s Manual...
  • Page 16 12/2014...
